150239 Festo Pneumatic Components
Part#:150239
Alt. Part#:PZVT-300-SEC
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description

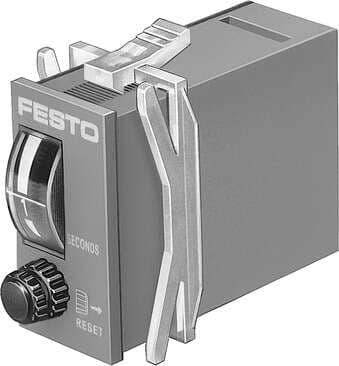

timer PZVT-300-SEC Design structure: mechanical sequence counter with pneumatic drive, Switch-off pressure: <: 0,1 bar, Operating pressure: 2 - 6 bar, Switch-on pressure: >: 1,6 bar, Standard nominal flow rate: 50 l/min
Product Details
- Switch-on pressure ≥ 1.6 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Product weight 45 g
- Switch-off pressure ≤ 0.1 bar
- Adjustable delay time 20 s ... 300 s
- Pause period for reset ≥ 200 ms
- Type of mounting Front panel mounting
- Type code PZVT
- Standard nominal flow rate 50 l/min
- Degree of protection IP54 as per IEC 60529
- Pneumatic connection Internal thread M5
- Design Mechanical sequence counter with pneumatic actuator
- Operating pressure 2 bar ... 6 bar
- Setting accuracy ± 6 s
- Information on operating and pilot media Operation with oil lubrication not possible
- Ambient temperature -10 °C ... 60 °C
- Housing material ABS
- Repetition accuracy of time setting ± 3 s
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
