1320837 Festo Grippers

Name: 1320837
Brand: Festo

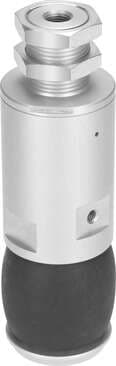

Festo 1320837 bellows gripper DHEB-27-E-U-E-P Size: 27, Stroke of the bellows: 12 mm, Min. diameter to be gripped: 28 mm, Max. diameter to be gripped: 37 mm, Assembly position: Any

Part#:1320837

Manufacturer:Festo

Alt. Part#:DHEB-27-E-U-E-P

Product Lifecycle:Active

Get a quick Quote!

bellows gripper DHEB-27-E-U-E-P Size: 27, Stroke of the bellows: 12 mm, Min. diameter to be gripped: 28 mm, Max. diameter to be gripped: 37 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320837 Festo price in the box on the right side or send a quick quote.

Product Details

Max. diameter to be gripped
37 mm
Position sensing
For proximity sensor
Average replacement interval for the bellows
0.5 MioCyc
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Housing material
Aluminum Anodized
Min. diameter to be gripped
28 mm
Type code
DHEB
Guide
Basic guide
Min. closing time at 6 bar
60 ms
Pneumatic connection
M5
Bellows material
EPDM
Size
27
Design
Contracting diaphragm Positively driven motion sequence
Operating pressure
4 bar ... 8 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Guide value for payload
0.45 kg
Mode of operation
Single-acting Closed
Resetting pressure
< 1 bar
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Ambient temperature
5 °C ... 60 °C

Type of mounting

Optionally: With lock nut

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Stroke of bellows

12 mm

Mounting position

Any

Min. opening time at 6 bar

30 ms

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Product weight

100 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
