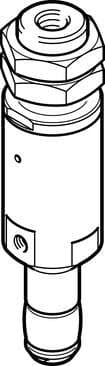

1320821 Festo Grippers
Product Details
- Type code DHEB
- Max. operating frequency of pneumatic gripper ≤ 4 Hz
- Max. diameter to be gripped 14 mm
- Mounting position Any
- Position sensing None
- Size 10
- Guide Basic guide
- Resetting pressure < 1 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- For use in the food industry See supplementary material information
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Housing material Aluminum Anodized
- Min. diameter to be gripped 10.5 mm
- Mode of operation Single-acting Closed
- Operating pressure 5 bar ... 8 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Average replacement interval for the bellows 1 MioCyc
- Pneumatic connection M3
- Bellows material VMQ (silicone)
- Stroke of bellows 4 mm
- Design Contracting diaphragm Positively driven motion sequence
- Min. opening time at 6 bar 20 ms
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Guide value for payload 0.1 kg
- Type of mounting Optionally: With lock nut
- Min. closing time at 6 bar 40 ms
- Ambient temperature 5 °C ... 60 °C
- Product weight 17 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
