1320812 Festo Grippers
Product Details
- Stroke of bellows 7 mm
- Mounting position Any
- Max. operating frequency of pneumatic gripper ≤ 4 Hz
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Type of mounting Optionally: With lock nut
- Max. diameter to be gripped 19.5 mm
- Mode of operation Single-acting Closed
- Min. opening time at 6 bar 20 ms
- Guide value for payload 0.15 kg
- Ambient temperature 5 °C ... 60 °C
- Bellows material EPDM
- Guide Basic guide
- Min. closing time at 6 bar 40 ms
- Average replacement interval for the bellows 0.5 MioCyc
- Housing material Aluminum Anodized
- Size 14
- Type code DHEB
- Design Contracting diaphragm Positively driven motion sequence
- Resetting pressure < 1 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 20 g
- Min. diameter to be gripped 15 mm
- Position sensing None
- Operating pressure 5 bar ... 8 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection M5
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1320812 Related Documents
Similar products from: Festo Grippers
Manufacturer warranty
1320812 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 1320812 with other Grippers products
Stroke of bellows
Mounting position
Max. operating frequency ...
Operating medium
Type of mounting
Max. diameter to be gripp...
Mode of operation
Min. opening time at 6 ba...
Guide value for payload
Ambient temperature
Selected product
1320812
Festo

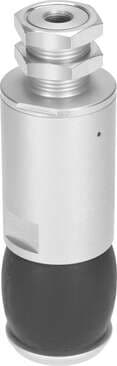

bellows gripper DHEB-14-E-U-E-L Size: 14, Stroke of the bellows: 7 mm, Min. diameter to be gripped: ...
