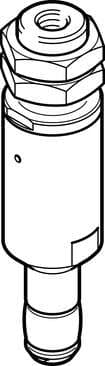

1320809 Festo Grippers

Product Details

• Max. diameter to be gripped
  11 mm
• Design
  Contracting diaphragm Positively driven motion sequence
• Resetting pressure
  < 1 bar
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Size
  8
• Type code
  DHEB
• Guide
  Basic guide
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Average replacement interval for the bellows
  0.5 MioCyc
• Min. diameter to be gripped
  8 mm
• Mode of operation
  Single-acting Closed
• Min. opening time at 6 bar
  10 ms
• Min. closing time at 6 bar
  30 ms
• Type of mounting
  Optionally: With lock nut
• Housing material
  Aluminum Anodized
• Stroke of bellows
  3.5 mm
• Mounting position
  Any
• Operating pressure
  5 bar ... 8 bar
• Ambient temperature
  5 °C ... 60 °C
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
Position sensing
None
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
16 g
Pneumatic connection
M5
Guide value for payload
0.08 kg
Bellows material
EPDM
