1320804 Festo Grippers

1320804 on Powermatic Associates
Festo

Part#:1320804

Manufacturer:Festo

Alt. Part#:DHEB-27-E-U-S-L

Product Lifecycle:Active

Get a quick Quote!

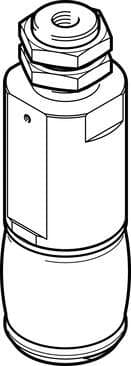

bellows gripper DHEB-27-E-U-S-L Size: 27, Stroke of the bellows: 12 mm, Min. diameter to be gripped: 28 mm, Max. diameter to be gripped: 37 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320804 Festo price in the box on the right side or send a quick quote.

Product Details

  • Stroke of bellows
    12 mm
  • Mode of operation
    Single-acting Closed
  • Max. diameter to be gripped
    37 mm
  • Mounting position
    Any
  • Operating pressure
    4 bar ... 8 bar
  • Resetting pressure
    < 1 bar
  • Average replacement interval for the bellows
    1 MioCyc
  • Bellows material
    VMQ (silicone)
  • Size
    27
  • Type code
    DHEB
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Min. diameter to be gripped
    28 mm
  • Guide
    Basic guide
  • Min. opening time at 6 bar
    30 ms
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    5 °C ... 60 °C
  • Housing material
    Aluminum Anodized
  • Position sensing
    For proximity sensor
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    100 g
  • Guide value for payload
    0.45 kg
  • Min. closing time at 6 bar
    60 ms
  • For use in the food industry
    See supplementary material information
  • Pneumatic connection
    M5
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Type of mounting
    Optionally: With lock nut
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320804 Specs

1320804 1320804 DataSheet.pdf
