1320799 Festo Grippers

1320799 on Powermatic Associates
Festo

Part#:1320799

Manufacturer:Festo

Alt. Part#:DHEB-10-E-U-S-L

Product Lifecycle:Active

Get a quick Quote!

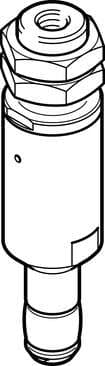

bellows gripper DHEB-10-E-U-S-L Size: 10, Stroke of the bellows: 4 mm, Min. diameter to be gripped: 10,5 mm, Max. diameter to be gripped: 14 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320799 Festo price in the box on the right side or send a quick quote.

Product Details

  • Size
    10
  • Mode of operation
    Single-acting Closed
  • Operating pressure
    5 bar ... 8 bar
  • Min. opening time at 6 bar
    20 ms
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Max. diameter to be gripped
    14 mm
  • Resetting pressure
    < 1 bar
  • Ambient temperature
    5 °C ... 60 °C
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Stroke of bellows
    4 mm
  • Mounting position
    Any
  • Design
    Contracting diaphragm Positively driven motion sequence
  • For use in the food industry
    See supplementary material information
  • Type of mounting
    Optionally: With lock nut
  • Min. diameter to be gripped
    10.5 mm
  • Type code
    DHEB
  • Guide
    Basic guide
  • Min. closing time at 6 bar
    40 ms
  • Average replacement interval for the bellows
    1 MioCyc
  • Position sensing
    None
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    17 g
  • Guide value for payload
    0.1 kg
  • Bellows material
    VMQ (silicone)
  • Pneumatic connection
    M5
  • Housing material
    Aluminum Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320799 Specs

1320799 1320799 DataSheet.pdf
