1320796 Festo Grippers

1320796 on Powermatic Associates
Festo

Part#:1320796

Manufacturer:Festo

Alt. Part#:DHEB-51-E-D-E-P

Product Lifecycle:Active

Get a quick Quote!

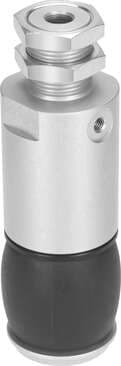

bellows gripper DHEB-51-E-D-E-P Size: 51, Stroke of the bellows: 18 mm, Min. diameter to be gripped: 54 mm, Max. diameter to be gripped: 68 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320796 Festo price in the box on the right side or send a quick quote.

Product Details

  • Min. diameter to be gripped
    54 mm
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Resetting pressure
    < 1 bar
  • Min. opening time at 6 bar
    30 ms
  • Average replacement interval for the bellows
    0.5 MioCyc
  • Pneumatic connection
    G1/8
  • Mounting position
    Any
  • Position sensing
    For proximity sensor
  • Ambient temperature
    5 °C ... 60 °C
  • Product weight
    490 g
  • Bellows material
    EPDM
  • Max. diameter to be gripped
    68 mm
  • Guide
    Basic guide
  • Min. closing time at 6 bar
    70 ms
  • Type of mounting
    Optionally: With lock nut
  • Stroke of bellows
    18 mm
  • Type code
    DHEB
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Size
    51
  • Mode of operation
    Single-acting Closed
  • Operating pressure
    4 bar ... 8 bar
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Guide value for payload
    2.5 kg
  • Housing material
    Aluminum Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320796 Specs

1320796 1320796 DataSheet.pdf
