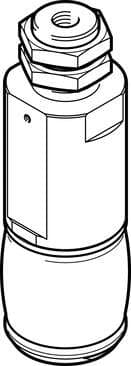

1320783 Festo Grippers

Product Details

• Stroke of bellows
  14.5 mm
• Mode of operation
  Single-acting Closed
• Min. closing time at 6 bar
  60 ms
• Min. diameter to be gripped
  34 mm
• Guide
  Basic guide
• Max. diameter to be gripped
  45 mm
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  ≤ 4 Hz
• For use in the food industry
  See supplementary material information
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Type code
  DHEB
• Operating pressure
  4 bar ... 8 bar
• Min. opening time at 6 bar
  30 ms
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Average replacement interval for the bellows
  1 MioCyc
• Size
  33
• Mounting position
  Any
• Design
  Contracting diaphragm Positively driven motion sequence
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pneumatic connection
  M5
Resetting pressure
< 1 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
5 °C ... 60 °C
Type of mounting
Optionally: With lock nut
Bellows material
VMQ (silicone)
Product weight
118 g
Guide value for payload
0.7 kg
Housing material
Aluminum Anodized
