1320760 Festo Grippers

Name: 1320760
Brand: Festo

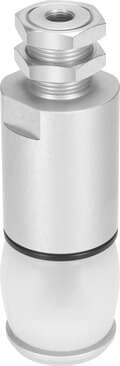

Festo 1320760 bellows gripper DHEB-27-E-D-S-L Size: 27, Stroke of the bellows: 12 mm, Min. diameter to be gripped: 28 mm, Max. diameter to be gripped: 37 mm, Assembly position: Any

Part#:1320760

Manufacturer:Festo

Alt. Part#:DHEB-27-E-D-S-L

Product Lifecycle:Active

Get a quick Quote!

bellows gripper DHEB-27-E-D-S-L Size: 27, Stroke of the bellows: 12 mm, Min. diameter to be gripped: 28 mm, Max. diameter to be gripped: 37 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320760 Festo price in the box on the right side or send a quick quote.

Product Details

Min. diameter to be gripped
28 mm
Position sensing
For proximity sensor
Guide
Basic guide
Size
27
Mode of operation
Single-acting Closed
Max. diameter to be gripped
37 mm
Mounting position
Any
Min. closing time at 6 bar
60 ms
For use in the food industry
See supplementary material information
Ambient temperature
5 °C ... 60 °C
Housing material
Aluminum Anodized
Stroke of bellows
12 mm
Type code
DHEB
Operating pressure
4 bar ... 8 bar
Min. opening time at 6 bar
30 ms
Average replacement interval for the bellows
1 MioCyc
Product weight
79 g
Design
Contracting diaphragm Positively driven motion sequence
Resetting pressure
< 1 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)

Guide value for payload

0.45 kg

Max. operating frequency of pneumatic gripper

≤ 4 Hz

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Type of mounting

Optionally: With lock nut

Bellows material

VMQ (silicone)

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Pneumatic connection

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
