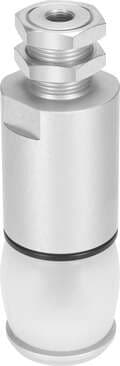

1320757 Festo Grippers
Product Details
- Stroke of bellows 7 mm
- Mounting position Any
- Position sensing None
- Resetting pressure < 1 bar
- For use in the food industry See supplementary material information
- Guide value for payload 0.15 kg
- Size 14
- Type code DHEB
- Mode of operation Single-acting Closed
- Min. closing time at 6 bar 40 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 17 g
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting Optionally: With lock nut
- Bellows material VMQ (silicone)
- Min. diameter to be gripped 15 mm
- Guide Basic guide
- Max. operating frequency of pneumatic gripper ≤ 4 Hz
- Ambient temperature 5 °C ... 60 °C
- Average replacement interval for the bellows 1 MioCyc
- Housing material Aluminum Anodized
- Max. diameter to be gripped 19.5 mm
- Design Contracting diaphragm Positively driven motion sequence
- Operating pressure 5 bar ... 8 bar
- Min. opening time at 6 bar 20 ms
- Pneumatic connection M5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
