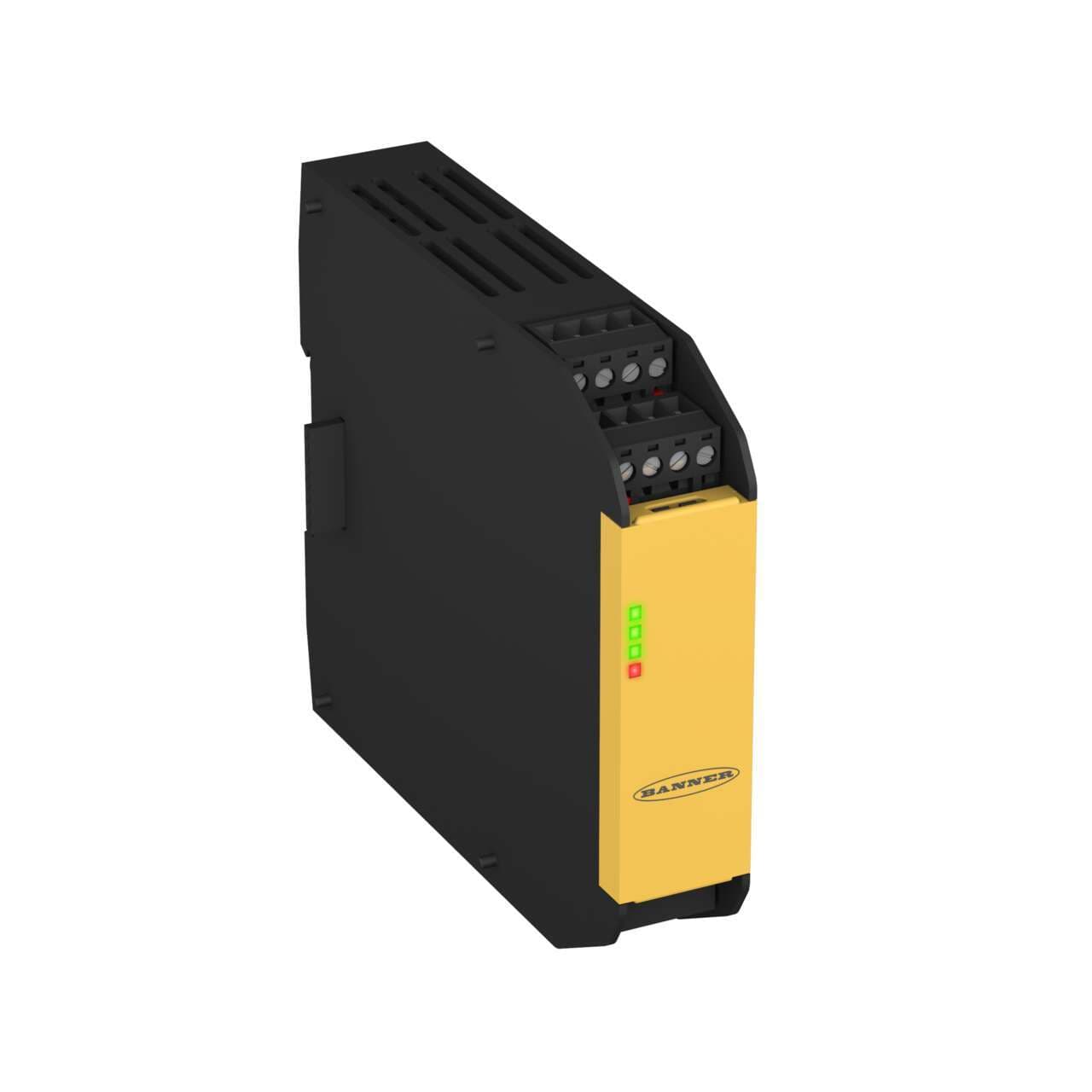

XS2SO Banner Safety Relays

XS2SO on Powermatic Associates
Banner

Part#:XS2SO

Manufacturer:Banner

Alt. Part#:85072

Product Lifecycle:Active

Get a quick Quote!

Safety Controller Expansion Module: Solid-State Output Module; 2 pairs of PNP Safety Outputs (0.75 A each); Used with XS26-2 Safety Controllers

About the manufacturer: Banner is one of the manufacturers that offers Safety Relays that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the XS2SO Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    149.68536 g
  • Country Of Origin
    US
  • In-Series Diagnostics
    No
  • PROFINET
    No
  • PCCC
    No
  • Light Curtains/Scanner without EDM Input
    No
  • Common Ethernet Protocol
    No
  • Modbus/TCP
    No
  • EtherNet/IP
    No
  • Light Curtains/Scanner with EDM Input
    No
  • Gate Switch (OSSD) Input
    No
  • Gate Switch (NC/NO) Input
    No
  • Gate Switch (NC/NC) Input
    No
  • PL Rating
    e
  • SISTEMA
    PFHd = 5.8 x 10-10
  • Safety Category Rating
    4
  • SIL Rating
    3
  • IP Rating
    IP20
  • Vibration
    9-150 Hz at 1g occasional/0.5g continuous
  • Removable Terminals
    Yes
  • Supply Voltage
    24 V dc +/- 20%
  • Terminal Type
    Screw
  • Splittable Safe Output
    Yes
  • Safe Output Rating
    OSSD 0.75 A max. @ 24 V dc
  • Non Safe Output Rating
    N/A
  • Response Time (ms)
    See Software Configuration Summary
  • Power Consumption
    3.075 A (external load maximum)
  • Non Safe Output Configuration
    Up to 4 PNP
  • Output Configuration
    2 OSSD Pairs
  • Dimension (H x W x D in mm)
    110 x 22.5 x 129
  • Relative Humidity
    90% @ 50° C
  • Independently Controlled Safe Outputs
    4
  • LCD Display
    No
  • Expandable
    Yes
  • Max Operating Temperature ( °C)
    55
  • Safety Module Type
    Output Module
  • Device Type
    Safety Controller
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

XS2SO Description

Banner Engineering XS2SO is a Safety I/O unit designed specifically for use with the XS26 safety controller. It functions as a safety output interface module, facilitating secure operations within automated systems. This unit operates on a supply voltage of either 24Vac or 24Vdc, ensuring versatility in connection to different power sources. It features screw-clamp connections for secure and reliable wiring. With a degree of protection rated at IP20, it is suited for indoor applications where it is not exposed to water or dust. The XS2SO is designed for DIN rail mounting, making it easy to install in a variety of settings. Its dimensions are 110 mm in height, 129 mm in depth, and 23 mm in width, ensuring it does not require excessive space. The unit is equipped with 2 digital safety outputs (24Vdc; 500mA; 2 x OSSD outputs), enabling it to manage safety functions effectively within an automation system.

Related documents XS2SO Specs

XS2SO 174869.pdf
