IM-T-9A Banner Safety Relays

IM-T-9A on Powermatic Associates
Banner

Part#:IM-T-9A

Manufacturer:Banner

Category:Safety Relays

Alt. Part#:61425

Product Lifecycle:Active

In-stock parts: 1

Dec 21, 2024

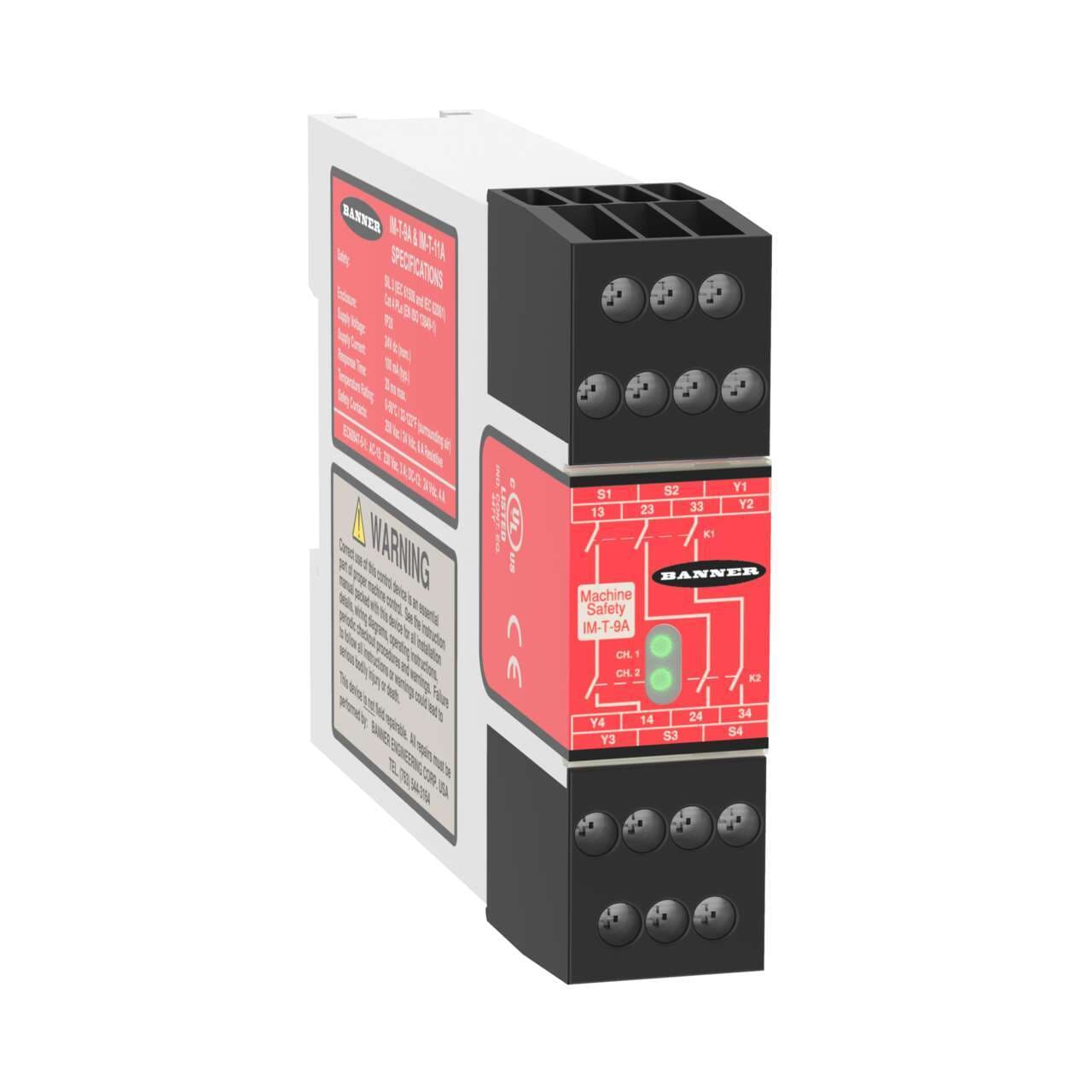

Relay Module for Safety Light Curtain/Control with EDM; Supply Voltage: 24 V dc; Safety Input: 1 Dual/Single Channel; Safety Output: 3 NO, 6 A; Aux Output: None; Terminal Block: Removable; Width: 22.5 mm

About the manufacturer: Banner is one of the manufacturers that offers Safety Relays that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IM-T-9A Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    244.93968 g
  • Country Of Origin
    US
  • EPLAN Cabinet Installable
    Yes
  • Common Ethernet Protocol
    No
  • EtherNet/IP
    No
  • E-Stops/Rope Pulls
    No
  • Muting
    No
  • Gate Switch (OSSD) Input
    No
  • Safety Category Rating
    4
  • Supply Voltage
    24 V dc +/- 15%
  • Response Time (ms)
    20 (max.)
  • Power Consumption
    0.1 A
  • In-Series Diagnostics
    No
  • PCCC
    No
  • PROFINET
    No
  • Modbus/TCP
    No
  • Light Curtains/Scanner with EDM Input
    Yes
  • Light Curtains/Scanner without EDM Input
    No
  • Gate Switch (NC/NO) Input
    No
  • Gate Switch (NC/NC) Input
    No
  • Motor Speed
    No
  • Safety Mat
    No
  • SIL Rating
    3
  • SISTEMA
    B10d = 1 x 107
  • Removable Terminals
    Yes
  • Electrical Life (Cycles @ VA)
    1,000,000 @ 450 VA
  • PL Rating
    e
  • IP Rating
    IP20
  • Terminal Type
    Screw
  • Vibration
    10-55 Hz at 0.35 mm
  • Non Safe Output Rating
    N/A
  • Splittable Safe Output
    No
  • Mechanical Life (Operations in Millions)
    20
  • Safe Output Rating
    Relay - 6 A
  • Output Configuration
    3 NO
  • Safety Input - Dual Channel (Solid-State)
    50 mA @ 24 V dc +/- 15%
  • Independently Controlled Safe Outputs
    1
  • Input Configuration
    2 OSSD
  • Number of Safe Inputs
    1
  • Dimension (H x W x D in mm)
    84 x 22.5 x 118
  • Input Operation
    Simultaneous or Concurrent
  • Expandable
    No
  • LCD Display
    No
  • Max Operating Temperature ( °C)
    50
  • Relative Humidity
    90% @ 50° C
  • Power
    DC
  • Safety Module Type
    Interface Module
  • Device Type
    Safety Relay

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IM-T-9A Description

Banner Engineering IM-T-9A is a mounting accessory designed with an EDM design and constructed from glass fiber material. It functions as a relay module and operates at a supply voltage of 24Vdc. The dimensions of this part are 84 mm in height, 23 mm in width, and 118 mm in depth. It is designed to operate in ambient air temperatures up to +50 °C and has a degree of protection rated at IP20. The IM-T-9A features 3NO (Normally Open) contacts.

Related documents IM-T-9A Specs

IM-T-9A 62822.pdf

This item can ship within 24h!
