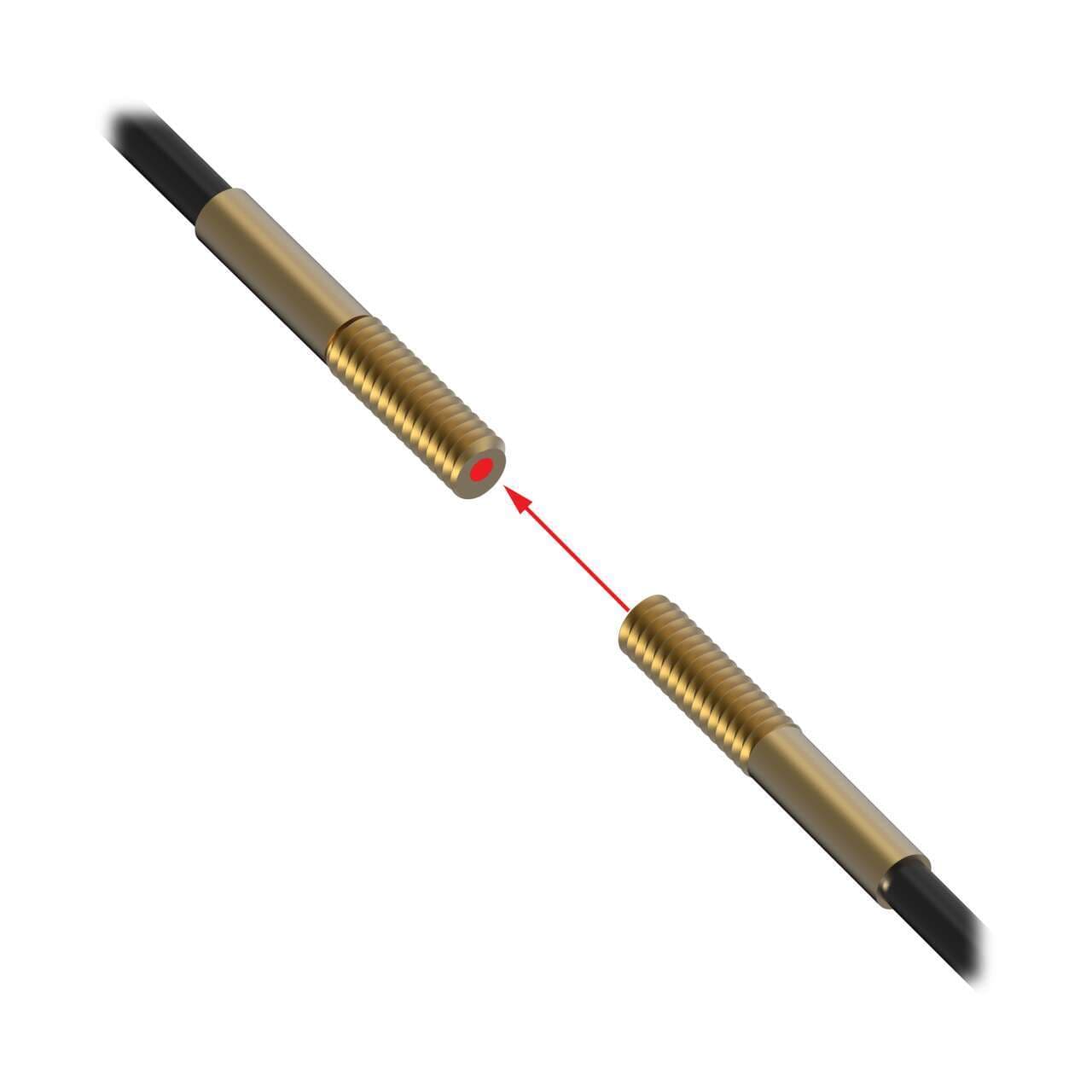

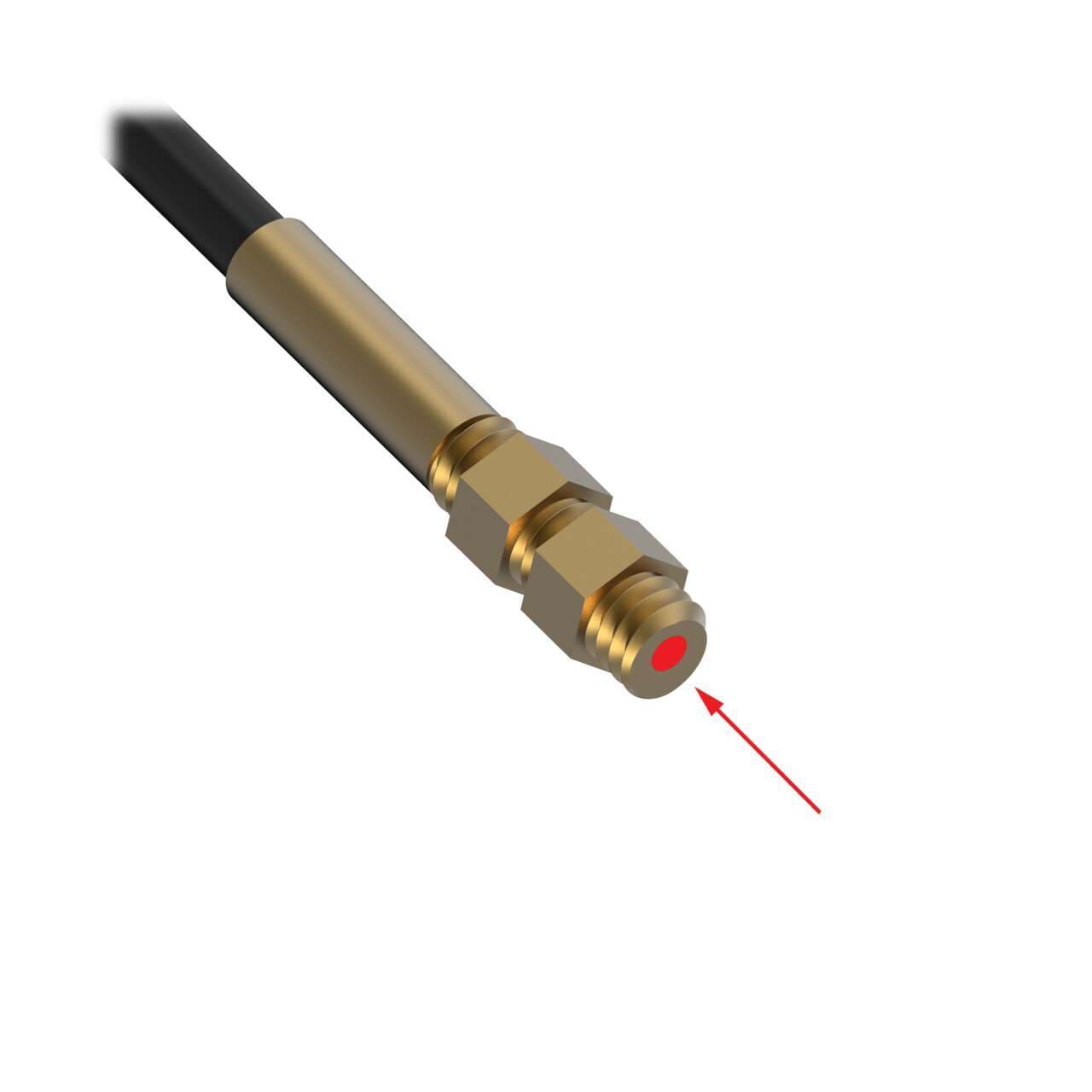

IMT.448P Banner Fiber Optic Sensors

Product Details

• Weight
  90.7184 g
• Country Of Origin
  US
• Termination Type
  Glass Fiber Sensors
• Fiber Sensing End Size - Mounting Area
  #8-32 thread
• Measured Max Distance (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Tariff Fiber Meters (fbm)
  343.81
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Feature: Chemical Resistant
  No
• Feature: Extended Range
  No
• Integrated Lens
  No
• Feature: Small Object Detection
  No
• Sensing End Segment 1
  Ferrule
• Max Temp ( °C)
  105
• Termination
  Terminated
• Flex Relief
  No
• Minimum Bend Radius (mm)
  25
Fiber Sensing End Size
#8-32 thread
Retractile
No
Core Diameter (mm)
0.7
Fiber Length (m)
2.438
Sensing End Segment 2
Thread
Fiber Sheathing Material (Jacket)
PVC over Stainless Steel Monocoil
Fiber Sensing End Tip
Thread
Beam Exit
In-line
Sensing Mode (General)
Opposed
Fiber Optic Type
Glass
Sensing End Material (Specific)
Brass
Housing Style
Round
Sensing Mode (Detailed)
Reflective
Quantity Included
1
Sub-range name
Glass fiber series
Diameter
0.7mm fiber core
Primary brand
Banner Engineering
Design
through-beam system / opposed mode Individual fiber
Order code / Manufacturer SKU
71285
Main function
Fiber sensor
Functions
Fiber optic sensor
Length
8ft / 2.44m
Material
Brass sensing end Glass fiber PVC over monocoil (fiber sheath)
Product series / family name
Fiber sensors
Shape
Cylindrical (threaded) end tip
Ambient air temperature for operation
+105 °C
Dimensions
8x32mm sensing area
