XS26-2DE Banner Safety Relays
Part#:XS26-2DE
Manufacturer:Banner
Alt. Part#:85064
Product Lifecycle:Active
Get a quick Quote!

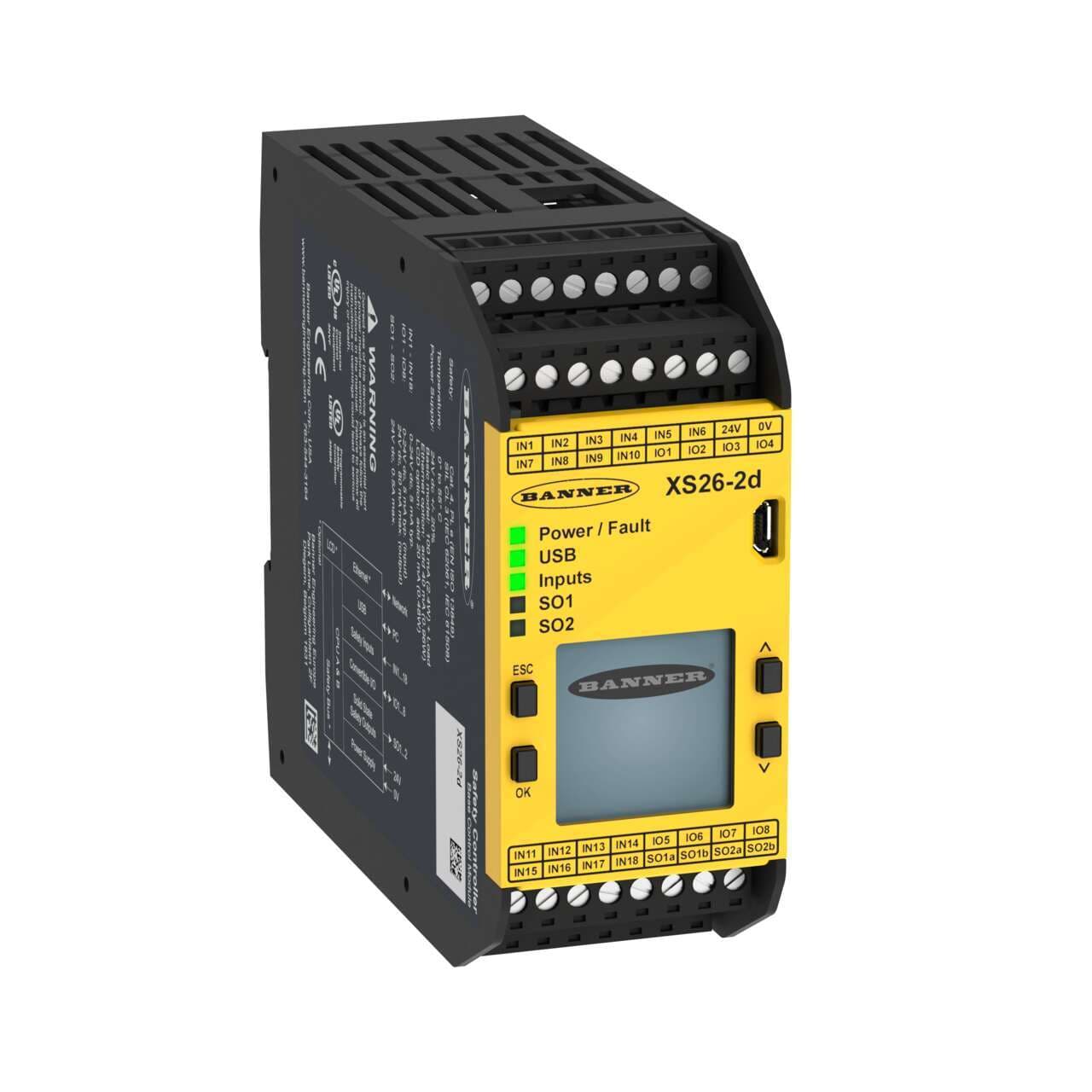

XS26-2DE Safety Controller: Expandable; 26 Input; 2 pairs of PNP Safety Outputs (0.5 A each); Display; Ethernet; USB; 8 Convertible Inputs; Removable Screw Terminals; 24 V dc; 160 mA
About the manufacturer: Banner is one of the manufacturers that offers Safety Relays that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the XS26-2DE Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 267.61928 g
- Country Of Origin US
- EPLAN Cabinet Installable Yes
- PCCC Yes
- Modbus/TCP Yes
- Light Curtains/Scanner without EDM Input Yes
- Motor Speed No
- Light Curtains/Scanner with EDM Input Yes
- Muting Yes
- SISTEMA PFHd = 1.05 x 10-9
- Supply Voltage 24 V dc +/- 20%
- Vibration 9-150 Hz at 1g occasional/0.5g continuous
- Recovery Time 250 (typical), 400 (max)
- Common Ethernet Protocol No
- In-Series Diagnostics No
- EtherNet/IP Yes
- PROFINET Yes
- Gate Switch (NC/NC) Input Yes
- Gate Switch (OSSD) Input Yes
- Gate Switch (NC/NO) Input Yes
- Two-Hand Controls Yes
- Safety Input - Single Channel 5-50 mA @ 24 V dc
- Input Resistance 150 Ω max. per lead
- THC Rating IIIC
- Safety Mat Yes
- PL Rating e
- SIL Rating 3
- E-Stops/Rope Pulls Yes
- Safety Category Rating 4
- Removable Terminals Yes
- Response Time (ms) See Software Configuration Summary
- IP Rating IP20
- Terminal Type Screw
- Safe Output Rating OSSD 0.50 A max. @ 24 V dc
- Power Consumption 0.16 A (controller only); 3.6 A (bus load)
- Splittable Safe Output Yes
- Output Configuration 2 OSSD Pairs
- Independently Controlled Safe Outputs 4
- Non Safe Output Configuration Up to 11 PNP
- Non Safe Output Rating 80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
- Safety Input - Reset 5-50 mA @ 24 V dc
- Input Configuration Configurable
- Number of Safe Inputs 26
- Relative Humidity 90% @ 50° C
- Safety Input - Dual Channel (Solid-State) 50 mA @ 15 - 30 V dc
- Number of Convertible Inputs 8
- Safety Input - Dual Channel (Dry Contact) 5-50 mA @ 24 V dc
- Dimension (H x W x D in mm) 110 x 45 x 129
- Input Operation Simultaneous or Concurrent
- Safety Module Type Base Controller
- LCD Display Yes
- Device Type Safety Controller
- Power DC
- Expandable Yes
- Max Operating Temperature ( °C) 55
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
XS26-2DE Description
Banner Engineering XS26-2DE is an expandable safety controller featuring a display PCCC, designed for 24Vdc supply voltage with screw-clamp connections. It offers an IP20 degree of protection and is suitable for DIN rail mount installation. This controller supports Ethernet/IP, Modbus TCP, and PROFINET communication protocols. It has dimensions of 110 mm in height, 129 mm in depth, and 45 mm in width. The XS26-2DE operates within an ambient air temperature range of 0 to +55°C. It is equipped with 26 safety inputs (15Vdc-30Vdc), including 8 inputs convertible to non-safety outputs, and 2 safety outputs (24Vdc; 500mA; 2 x OSSD outputs).
