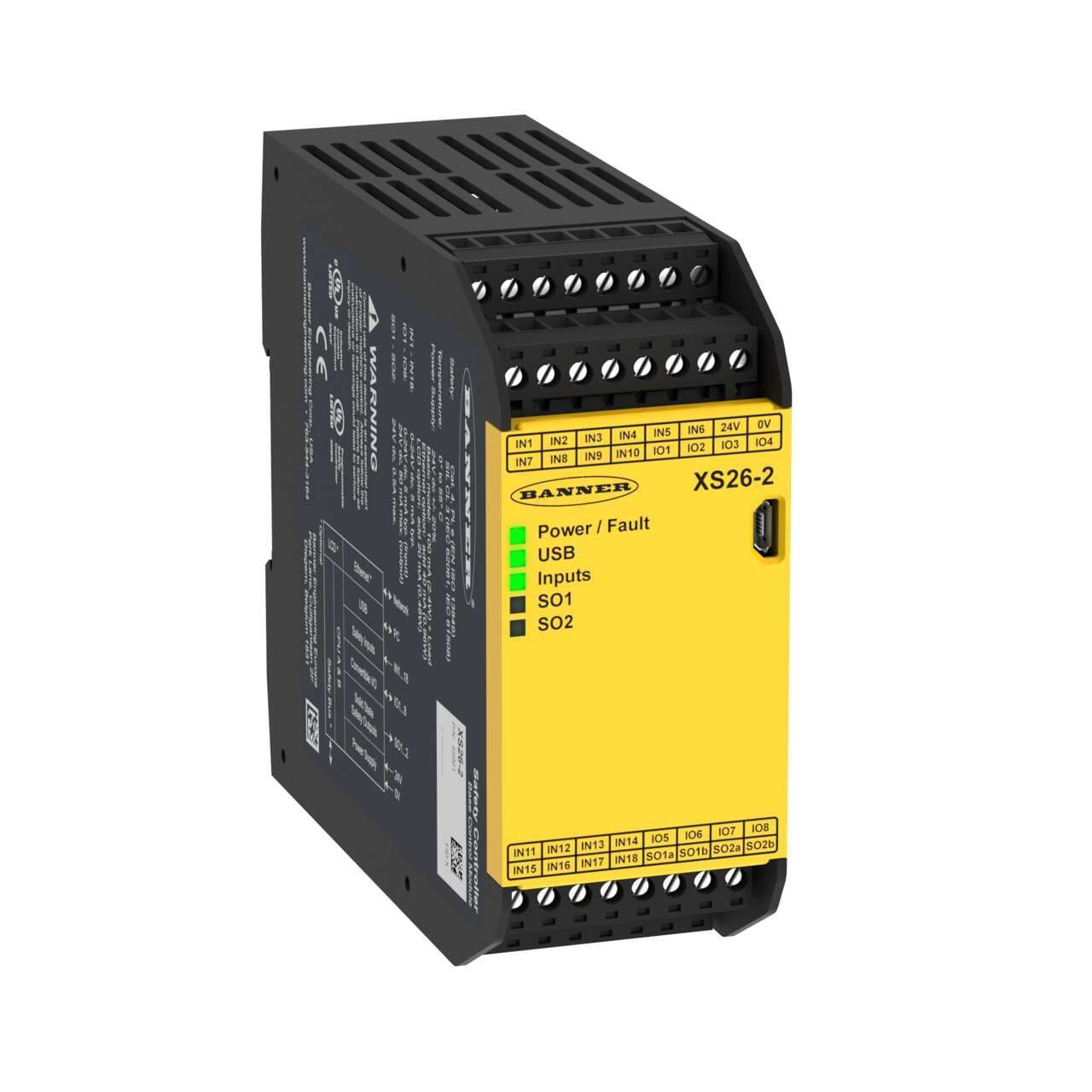

XS26-2 Banner Safety Relays

Product Details

• Weight
  254.01152 g
• Country Of Origin
  US
• Gate Switch (OSSD) Input
  Yes
• In-Series Diagnostics
  No
• Gate Switch (NC/NC) Input
  Yes
• Input Resistance
  150 Ω max. per lead
• Recovery Time
  250 (typical), 400 (max)
• Common Ethernet Protocol
  No
• Light Curtains/Scanner without EDM Input
  Yes
• PROFINET
  No
• PCCC
  No
• Modbus/TCP
  No
• EtherNet/IP
  No
• Light Curtains/Scanner with EDM Input
  Yes
• Gate Switch (NC/NO) Input
  Yes
• Motor Speed
  No
• Two-Hand Controls
  Yes
• Safety Mat
  Yes
• Muting
  Yes
• E-Stops/Rope Pulls
  Yes
Safety Input - Single Channel
5-50 mA @ 24 V dc
THC Rating
IIIC
SISTEMA
PFHd = 1.05 x 10-9
SIL Rating
3
Safety Category Rating
4
PL Rating
e
IP Rating
IP20
Vibration
9-150 Hz at 1g occasional/0.5g continuous
Removable Terminals
Yes
Supply Voltage
24 V dc +/- 20%
Terminal Type
Screw
Response Time (ms)
See Software Configuration Summary
Power Consumption
0.1 A (controller only); 3.6 A (bus load)
Splittable Safe Output
Yes
Safe Output Rating
OSSD 0.50 A max. @ 24 V dc
Output Configuration
2 OSSD Pairs
Non Safe Output Rating
80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
Non Safe Output Configuration
Up to 11 PNP
Safety Input - Dual Channel (Solid-State)
50 mA @ 15 - 30 V dc
Independently Controlled Safe Outputs
4
Safety Input - Dual Channel (Dry Contact)
5-50 mA @ 24 V dc
Safety Input - Reset
5-50 mA @ 24 V dc
Number of Safe Inputs
26
Input Configuration
Configurable
Input Operation
Simultaneous or Concurrent
Number of Convertible Inputs
8
Relative Humidity
90% @ 50° C
Dimension (H x W x D in mm)
110 x 45 x 129
Max Operating Temperature ( °C)
55
LCD Display
No
Safety Module Type
Base Controller
Expandable
Yes
Device Type
Safety Controller
Power
DC
