XS4SO Banner Safety Relays
Part#:XS4SO
Manufacturer:Banner
Category:Safety Relays
Alt. Part#:85073
Product Lifecycle:Active
In-stock parts: 1
Dec 21, 2024

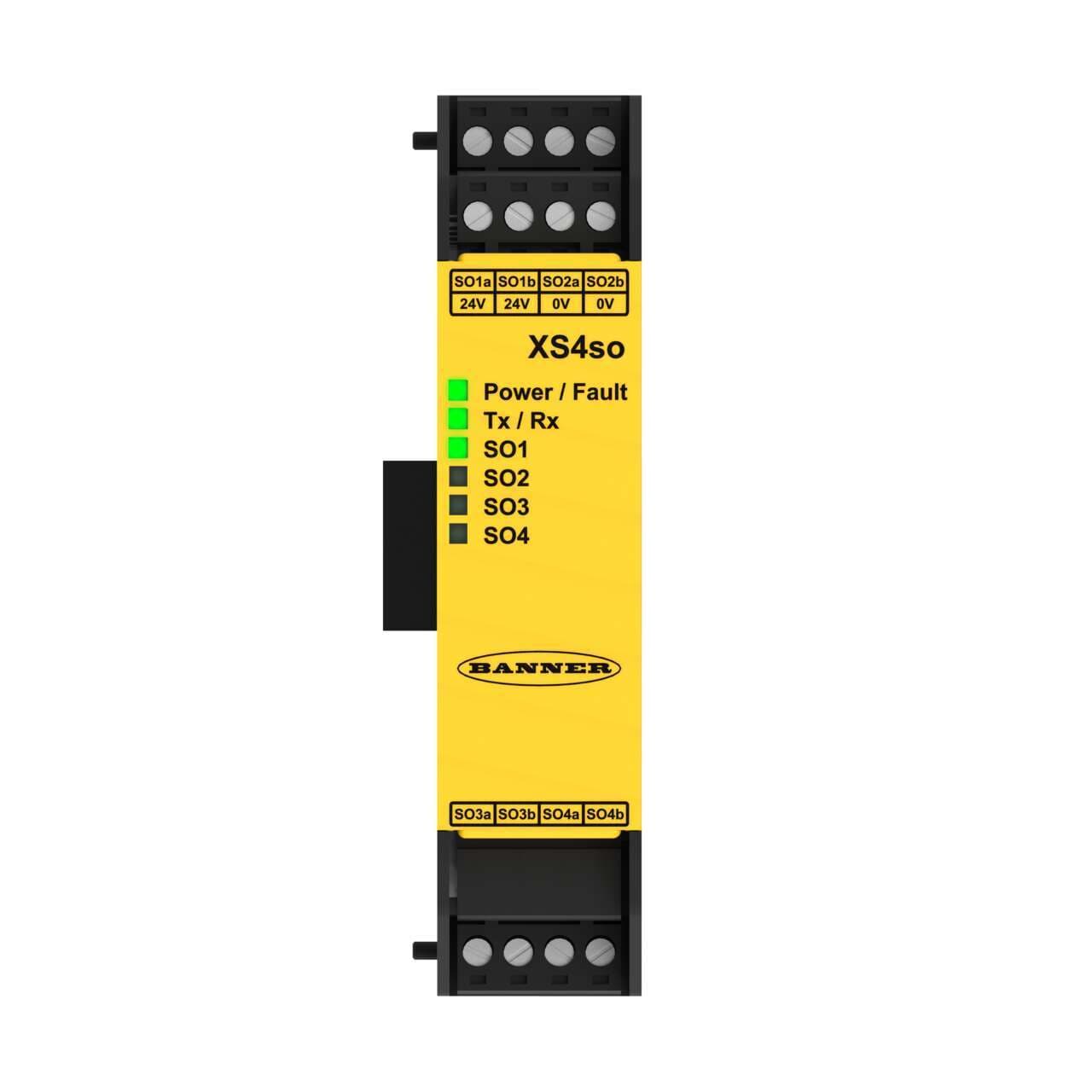

Safety Controller Expansion Module: Solid-State Output Module; 4 pairs of PNP Safety Outputs (0.5 A each); Used with XS26-2 Safety Controllers
About the manufacturer: Banner is one of the manufacturers that offers Safety Relays that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the XS4SO Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 158.7572 g
- Country Of Origin US
- PROFINET No
- PCCC No
- Light Curtains/Scanner without EDM Input No
- Vibration 9-150 Hz at 1g occasional/0.5g continuous
- Power Consumption 4.1 A (external load maximum)
- LCD Display No
- In-Series Diagnostics No
- Modbus/TCP No
- Common Ethernet Protocol No
- EtherNet/IP No
- Light Curtains/Scanner with EDM Input No
- Gate Switch (OSSD) Input No
- Gate Switch (NC/NC) Input No
- Gate Switch (NC/NO) Input No
- SISTEMA PFHd = 5.8 x 10-10
- Safety Category Rating 4
- SIL Rating 3
- PL Rating e
- Removable Terminals Yes
- IP Rating IP20
- Splittable Safe Output Yes
- Safe Output Rating OSSD 0.50 A max. @ 24 V dc
- Response Time (ms) See Software Configuration Summary
- Supply Voltage 24 V dc +/- 20%
- Terminal Type Screw
- Non Safe Output Rating N/A
- Non Safe Output Configuration Up to 8 PNP
- Output Configuration 4 OSSD Pairs
- Independently Controlled Safe Outputs 8
- Relative Humidity 90% @ 50° C
- Dimension (H x W x D in mm) 110 x 22.5 x 129
- Max Operating Temperature ( °C) 55
- Expandable Yes
- Safety Module Type Output Module
- Device Type Safety Controller
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
XS4SO Description

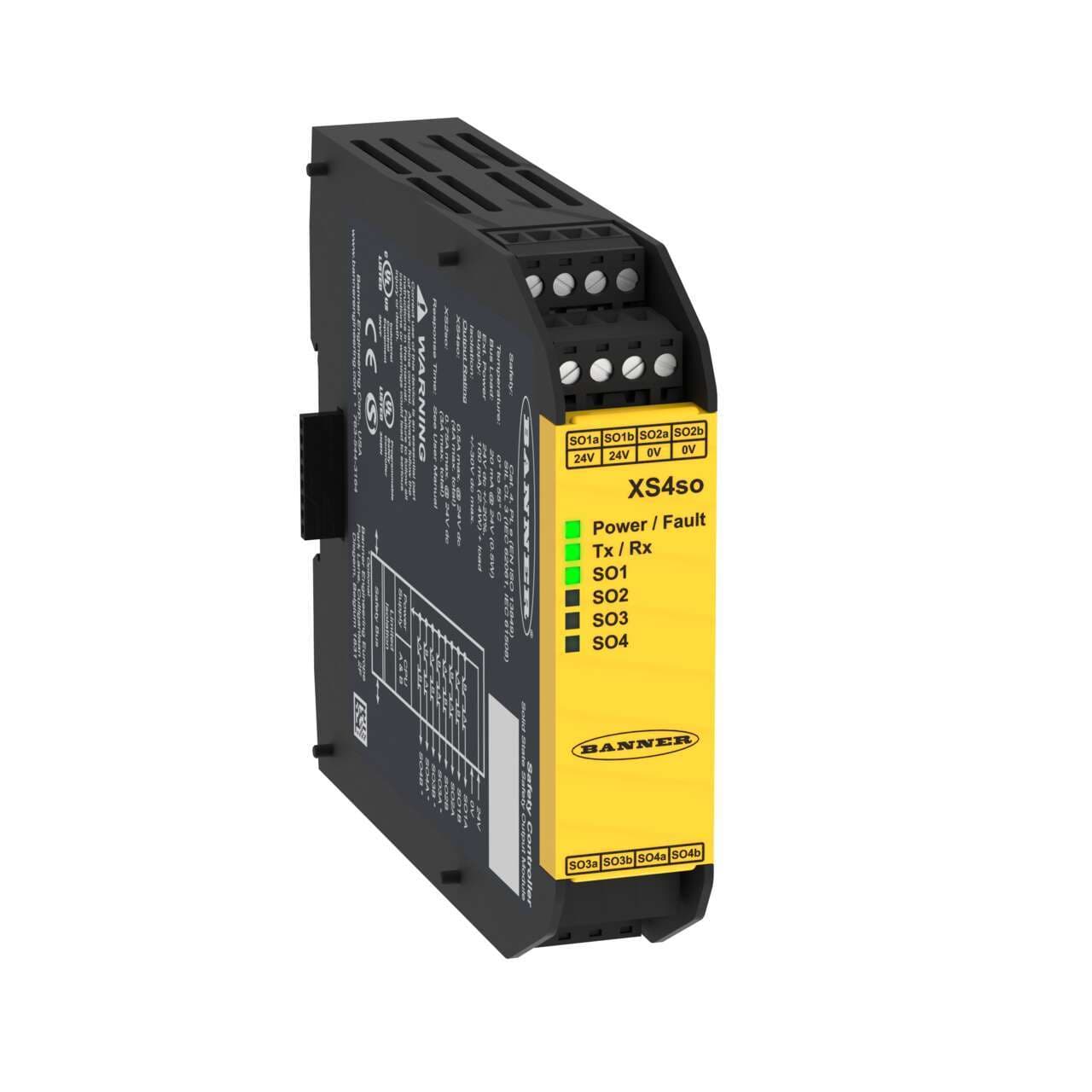

Banner Engineering XS4SO is a Safety I/O unit designed as a safety output interface module specifically for use with the XS26 safety controller. It operates with a supply voltage of 24Vac or 24Vdc and features screw-clamp connections for secure installation. This unit offers a degree of protection rated at IP20 and is designed for DIN rail mounting, facilitating easy integration into existing systems. The XS4SO measures 110 mm in height, 129 mm in depth, and 23 mm in width. It is equipped with 4 digital outputs, which are safety outputs (24Vdc; 500mA; 4 x OSSD outputs), ensuring it meets the requirements for a variety of safety applications.
Related documents XS4SO Specs
