VTBP6RL Banner Pick-to-Light Sensors

VTBP6RL on Powermatic Associates
Banner
  • VTBP6RL
  • VTBP6RL

Part#:VTBP6RL

Alt. Part#:71410

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

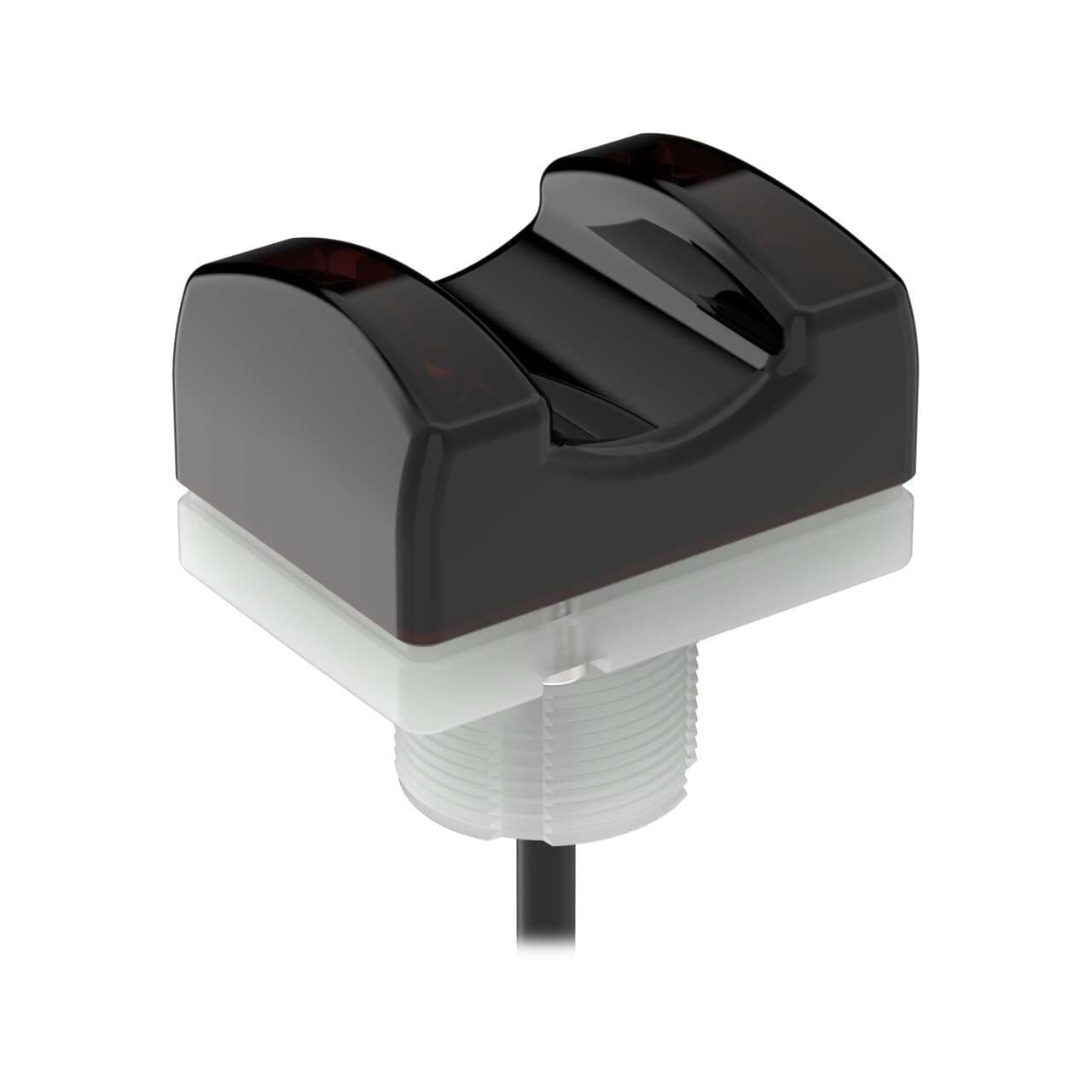

VTB Series: Verification Touch Button 1-Color; Input: 12-30 V dc; Upper Housing: Polycarbonate; Output: PNP; Job Light Input: +10-30 V dc; Color: Red; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    272.1552 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • IO Link
    No
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Button Operation
    Momentary
  • Field Cover Color
    Black
  • Primary Housing Color
    Red
  • Max Op. Temperature (°C)
    50
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -20
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 55°C
  • NEMA Type and UL Type Rating
    NEMA 1, 3, 4, 4X, 12, 13
  • Environmental Rating
    IP66
  • Input Type
    Bimodal (PNP/NPN)
  • Physical Dimensions (LxWxH or DxH mm)
    59.9 x 43.2 x 48.0
  • Number of Beams
    1
  • Max Output Response Time (ms)
    100
  • Operation
    Normally Open
  • Number of Input Pins/Conductors
    4
  • Output Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Connection
    Cable
  • Acknowledge (Sense) Light
    Red
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    120
  • Animation Option 1
    Multiple
  • Color Option 1
    Red
  • Product Size (mm)
    Other
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Actuation
    Yes
  • Activation Function
    Optical
  • Mounting Thread
    M30 x 1.5
  • Sensing Mode (General)
    Single Point Optical
  • Housing Style
    Base Mount - Saddle
  • Power Source
    DC
  • Cable Length (m)
    0.15
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VTBP6RL on Powermatic Associates is $184.00. Order now.

About the product

Banner Engineering VTBP6RL is a capacitive touch-sensitive pick-to-light device designed with a polycarbonate (PC) upper housing and base, ensuring durability. It offers a high degree of protection rated at IP66, NEMA 1, 3, 4, 4X, 12, and 13, making it suitable for a wide range of industrial environments. The device operates within an ambient air temperature range of -20°C to +50°C and can be mounted on a surface or base flush with a 30mm hole. It features a momentary job light (R; Red) that is ON or flashing when the job input is active, and the touch activates the output only with a Normally Open (NO) touch output. The VTBP6RL includes 1 x digital output (12-30Vdc; PNP) for touch and 1 x digital input (12-30Vdc; NPN/PNP) for JOB color control. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads, has a current consumption of 120mA, and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). The device's saddle/yoke-shaped body is red, and it features LED illumination for clear visibility.
