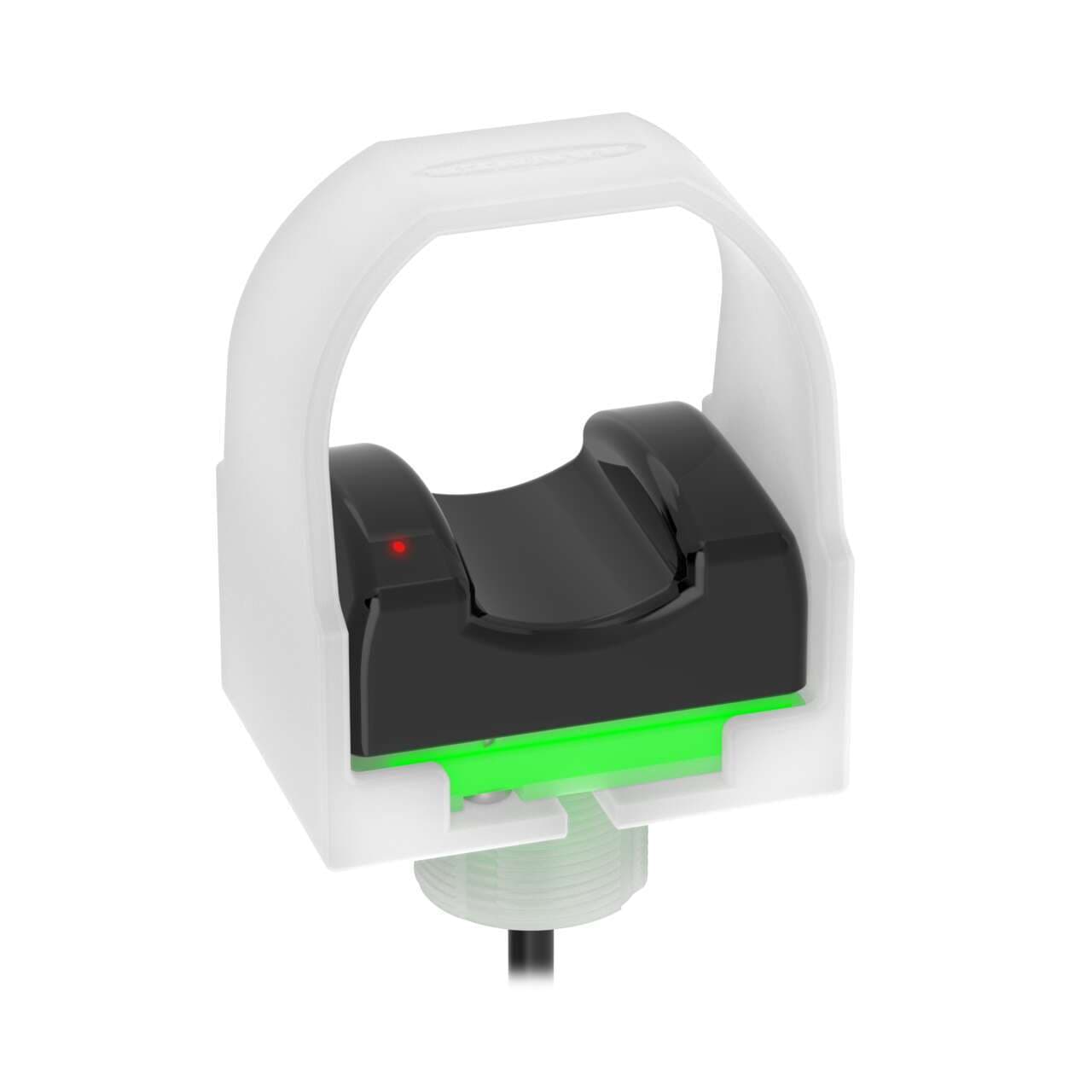

VTBP6QPMA12 Banner Pick-to-Light Sensors

VTBP6QPMA12 on Powermatic Associates
Banner

Part#:VTBP6QPMA12

Alt. Part#:74089

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

VTB Series: Verification Touch Button 1-Color; Input: 12-30 V dc; Upper Housing: Polysulfone; Output: PNP; Job Light Input: +10-30 V dc; Color: Green; 150 mm (6 in) 4-pin M12 PUR Pigtail QD; 500 mS OFF Delay

Product Details

  • Weight
    190.50864 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Wireless
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Button Operation
    Momentary
  • Field Cover Color
    Black
  • Storage Temp (°C)
    -40 to 70
  • Feature: Hazardous Area
    No
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -20
  • Max Op. Temperature (°C)
    50
  • NEMA Type and UL Type Rating
    NEMA 1, 3, 4, 4X, 12, 13
  • Environmental Rating
    IP66
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 55°C
  • Number of Beams
    1
  • Physical Dimensions (LxWxH or DxH mm)
    59.9 x 43.2 x 48.0
  • Max Output Response Time (ms)
    100
  • Input Type
    Bimodal (PNP/NPN)
  • Output Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Acknowledge (Sense) Light
    Green
  • Number of Input Pins/Conductors
    4
  • Animation Option 1
    Multiple
  • Max Current Color (mA)
    120
  • Connection
    Pigtail PUR QD
  • Color Option 1
    Green
  • Quick Disconnect Type
    M12 (Euro)
  • Color Technology
    Standard LED
  • Product Size (mm)
    Other
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M30 x 1.5
  • Activation Function
    Optical
  • Actuation
    Yes
  • Sensing Mode (General)
    Single Point Optical
  • Housing Style
    Base Mount - Saddle
  • Power Source
    DC
  • Primary Housing Material
    Thermoplastic Polysulfone
  • Cable Length (m)
    0.15
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VTBP6QPMA12 on Powermatic Associates is $194.00. Order now.


About the product

Banner Engineering VTBP6QPMA12 is a capacitive touch-sensitive pick-to-light device designed with a polysulfone upper housing, a polycarbonate (PC) base, and a polyurethane (PUR) cable sheath. It offers a high degree of protection rated at IP66, NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13, ensuring durability in various environmental conditions. This device operates within an ambient air temperature range of -20°C to +50°C and supports surface or base flush mounting with a 30mm hole. The operating mode is momentary, with a green job light that turns on or flashes when the job input is active, and touch activation triggers a normally open (NO) touch output. It features 1 x digital output (12-30Vdc; PNP) for touch and 1 x digital input (12-30Vdc; NPN/PNP) for JOB color control. The VTBP6QPMA12 is pre-wired with a 6" / 15cm PUR pigtail terminated with a 4-pin M12 Euro-style QD connector, consumes 120mA of current, and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). Its saddle/yoke-shaped body is black, and it is designed with LED illumination for clear visibility.
