Part#:TM18VP6FF50Q5

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Get a quick Quote!

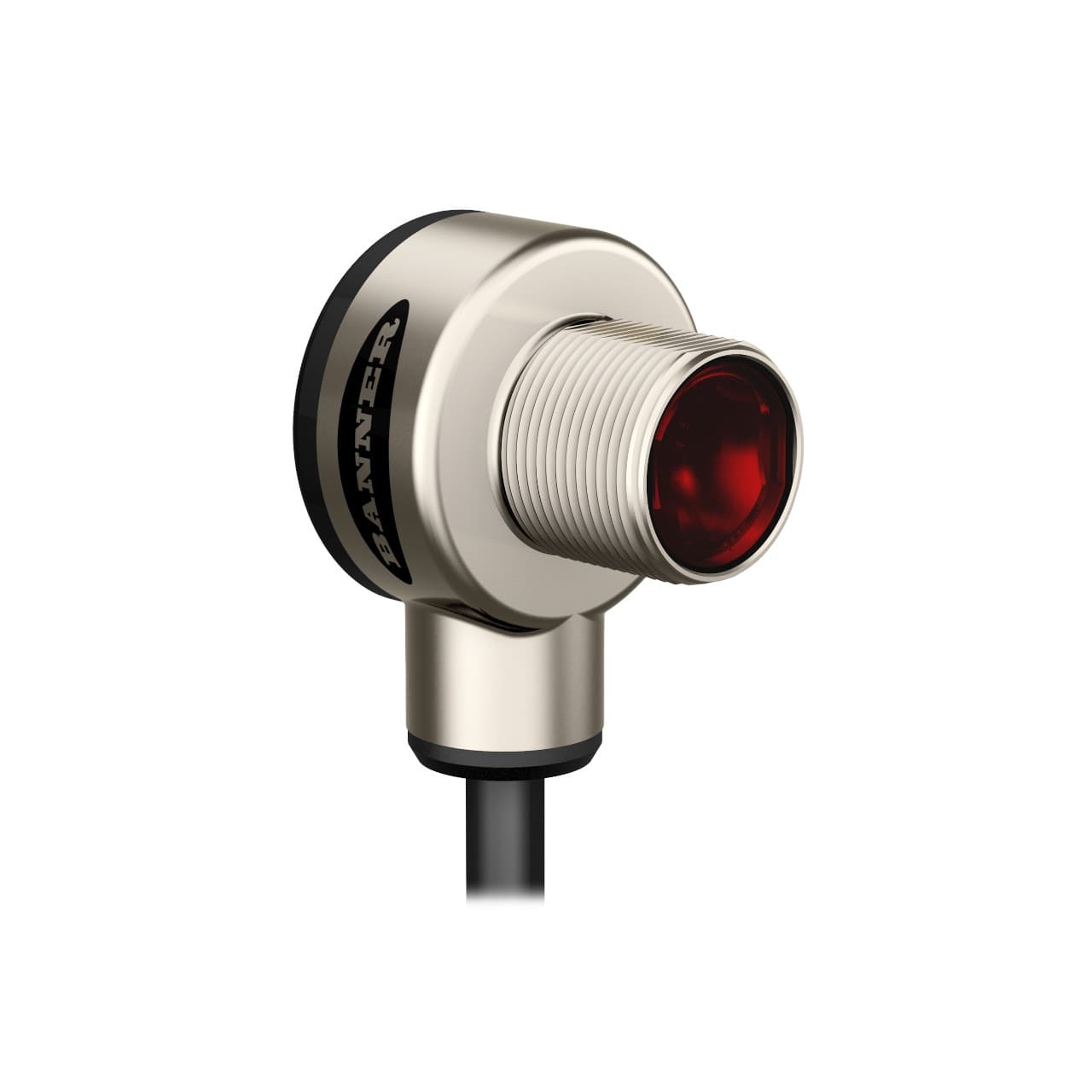

Banner Engineering TM18VP6FF50Q5 is a fixed-field photo-electric sensor from the TM18 series, designed with a background suppression system and housed in a nickel-plated die-cast zinc with an acrylic lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The TM18VP6FF50Q5 offers a threaded mount for installation, can operate in ambient air temperatures ranging from -40 to +70°C, and is rated with a degree of protection of IP67, IP69K, and NEMA 6, ensuring durability in various environments. Its shape is an M18 cylindrical threaded/barrel, and it features 1 x digital output (PNP transistor) with a sensing distance of 50mm. The sensor emits visible red light with a wavelength of 660 nm and has a response time of 3ms / 0.003 s. It supports both Light-ON and Dark-ON operating modes, with a thread size of M18.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TM18VP6FF50Q5 Banner price in the box on the right side or send a quick quote.

Product Details

  • Indicator
    LEDs
  • IP Rating
    IP67, IP69
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    Yes
  • Feature: Washdown Rated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6
  • Number of Pins
    4
  • Repeatability (µs)
    185
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3 ON/1.5 OFF
  • Max Op. Temp. (°C)
    70
  • Quick Disconnect Type
    M12 (Euro)
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Pigtail QD
  • Outputs
    PNP
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Power
    DC
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Housing Style
    Barrel
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Visible Red LED
  • Max Sensing Distance (mm)
    50
  • Input/Output
    Discrete
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Visible red
  • Product series / family name
    EZ-BEAM series
  • Primary brand
    Banner Engineering
  • Sub-range name
    TM18 series
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
  • Operating mode
    Light-ON Dark-ON
  • Response time
    3ms / 0.003 s
  • Order code / Manufacturer SKU
    42061
  • Wavelength
    660 nm
  • Mounting mode
    Threaded mount
  • Compliant with standard(s)
    cULus CE
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Sensing distance
    50mm
  • Thread size
    M18
  • Digital outputs
    1 x digital output (PNP transistor)
  • Ambient air temperature for operation
    -40...+70 °C
  • Design
    background suppression system heavy-duty
  • Shape
    Cylindrical smooth
  • Material
    Nickel-plate die-cast Zinc housing Acrylic lns.
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • Degree of protection
    IP67 NEMA 6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents TM18VP6FF50Q5 Specs

TM18VP6FF50Q5 TM18 Series Sensors: EZ-BEAM DC-1630948994879.pdf
TM18VP6FF50Q5 TM18 FF CABLE-1630948994877.pdf
TM18VP6FF50Q5 TM18 FF CABLE-1630948994874.stp
