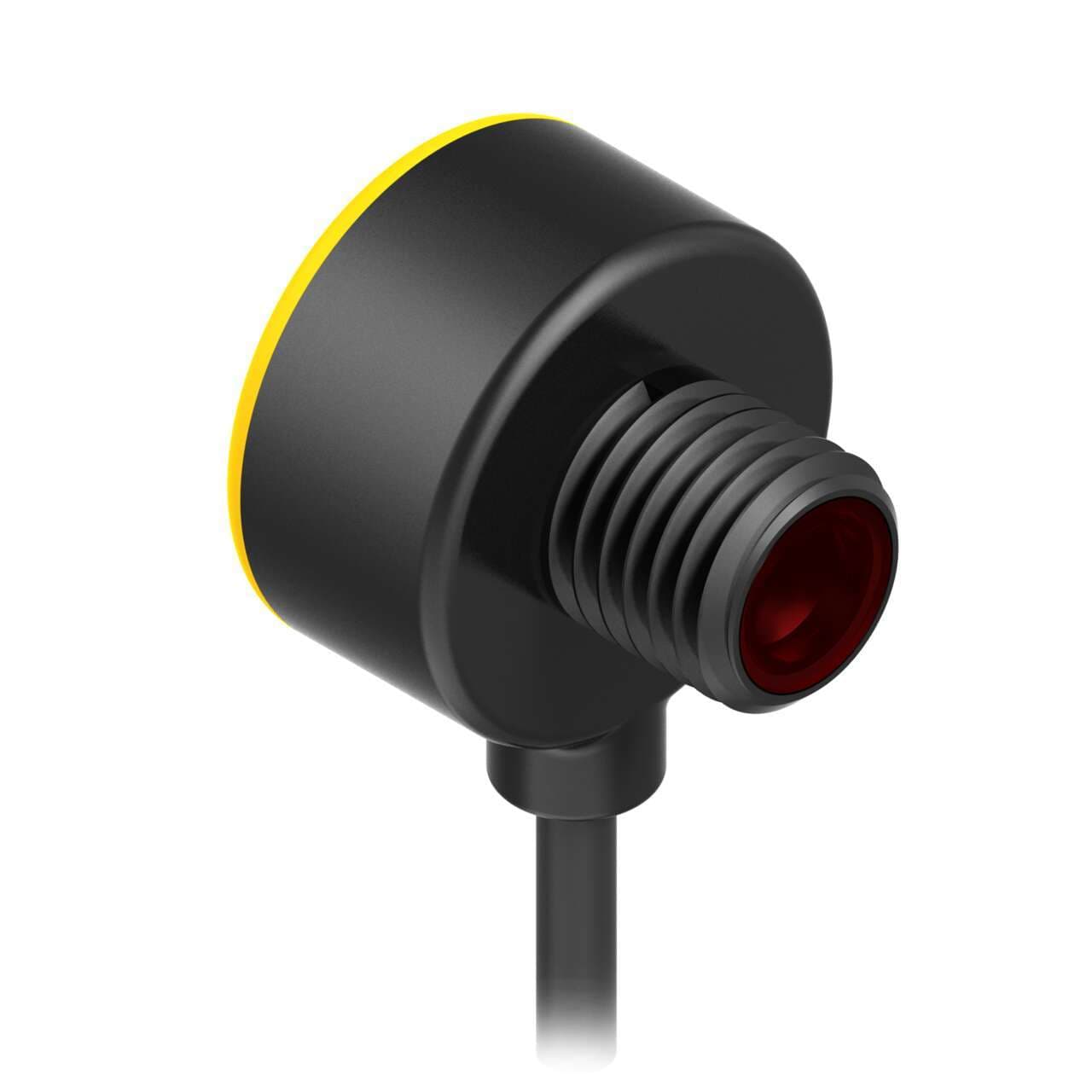

T8AP6RQ Banner Proximity Sensors

T8AP6RQ on Powermatic Associates
Banner

Part#:T8AP6RQ

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:66668

Product Lifecycle:Active

Get a quick Quote!

T8 Series: Opposed Mode; Range: 2000 mm; Input: 10-30 V dc; Output: PNP Light Operate; 150 mm (6 in) M8 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T8AP6RQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    36.28736 g
  • Country Of Origin
    MX
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Audible
    No
  • Opposed Mode Emitter/Receiver
    Receiver
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    8
  • Indicator
    LEDs
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • IP Rating
    IP67
  • Number of Pins
    3
  • Repeatability (µs)
    100
  • NEMA Rating
    NEMA 6
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    1 ON/0.5 OFF
  • Special Feature: Remote Teach
    No
  • Quick Disconnect Type
    M8 (Pico)
  • Max Op. Temp. (°C)
    55
  • Min Op. Temp. (°C)
    -20
  • Operation
    Light Operate
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Power
    DC
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Receiver
  • Max Sensing Distance (mm)
    2000
  • Outputs
    PNP
  • Sensing Mode (General)
    Opposed
  • Sensing Beam
    Visible Red LED
  • Housing Style
    Barrel
  • Degree of protection
    IP67 NEMA 6
  • Light Color
    Visible red
  • Shape
    Cylindrical threaded/barrel
  • Order code / Manufacturer SKU
    66668
  • Primary brand
    Banner Engineering
  • Main function
    Sensor (Photo-electric)
  • Product series / family name
    EZ-BEAM series
  • Functions
    Photo-electric sensor receiver green LED (power ON) red LED (failure)
  • Sensing distance
    2m
  • Wavelength
    660 nm
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
  • Ambient air temperature for operation
    -20...+55 °C
  • Sub-range name
    T8 series
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Operating mode
    Light-ON NO (Normally Open)
  • Design
    through-beam system / opposed mode
  • Digital outputs
    1 x digital output (PNP transistor)
  • Thread size
    M8
  • Response time
    1ms / 0.001 s
  • Material
    thermoplastic housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T8AP6RQ Description

Banner Engineering T8AP6RQ is a photo-electric sensor from the T8 series designed with a through-beam system, functioning as the receiver component of the opposed mode setup. It features a thermoplastic housing with an acrylic lens and is pre-wired, including a 6-inch (150mm) pigtail terminated with a 3-pin Pico-style M8 connector. This sensor operates within a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed to work within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environmental conditions. The T8AP6RQ has a cylindrical threaded/barrel shape with an M8 thread size. It provides one digital output (PNP transistor) and has a sensing distance of up to 2 meters. The sensor emits visible red light with a wavelength of 660 nm and boasts a quick response time of 1ms (0.001 s). Its operating mode is Light-ON NO (Normally Open).
