T30SP6FF400Q Banner Proximity Sensors

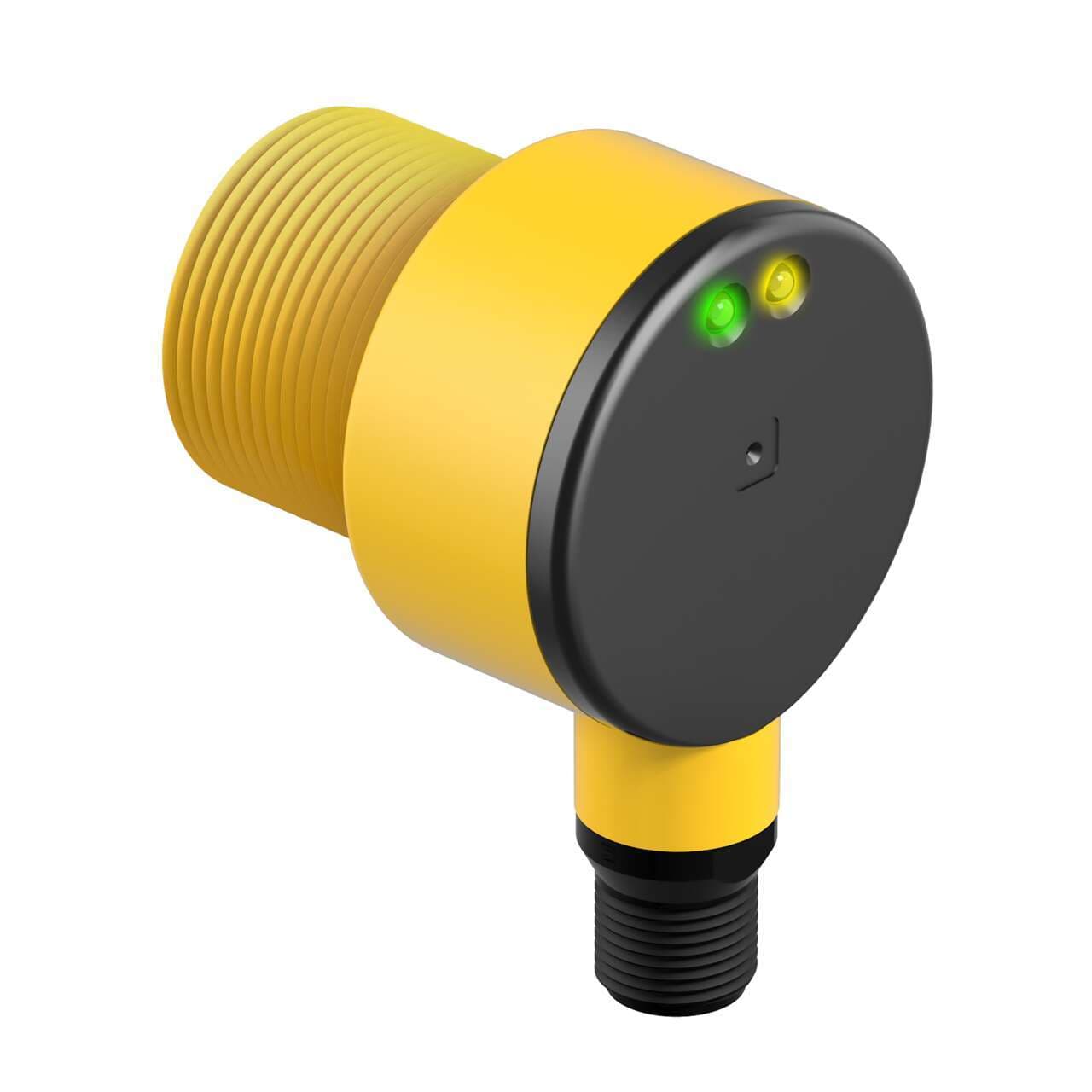

Banner T30SP6FF400Q EZ-BEAM T30 Series: Fixed Field; Range: 400 mm; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD
Banner

Part#:T30SP6FF400Q

Manufacturer:Banner

Alt. Part#:33437

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM T30 Series: Fixed Field; Range: 400 mm; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T30SP6FF400Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    97.52228 g
  • Country Of Origin
    US
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    Yes
  • Feature: Washdown Rated
    Yes
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    30
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6P
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • IP Rating
    IP69
  • Number of Pins
    4
  • Repeatability (µs)
    750
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3
  • Max Op. Temp. (°C)
    70
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    M12 (Euro)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Min Op. Temp. (°C)
    -40
  • Connection
    Integral QD
  • Power
    DC
  • Max Sensing Distance (mm)
    400
  • Outputs
    PNP
  • Housing Style
    Barrel
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Infrared LED
  • Main function
    Sensor (Photo-electric)
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
  • Light Color
    Infrared (IR)
  • Design
    background suppression system
  • Response time
    3ms / 0.003 s
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Compliant with standard(s)
    cULus cCSAus CE
  • Primary brand
    Banner Engineering
  • Sub-range name
    T30 series
  • Sensing distance
    400mm
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -40...+70 °C
  • Product series / family name
    EZ-BEAM series
  • Shape
    Cylindrical threaded/barrel
  • Thread size
    M30
  • Degree of protection
    IP69K NEMA 6P
  • Order code / Manufacturer SKU
    33437
  • Digital outputs
    1 x digital output (PNP transistor)
  • Material
    thermoplastic housing

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T30SP6FF400Q Description

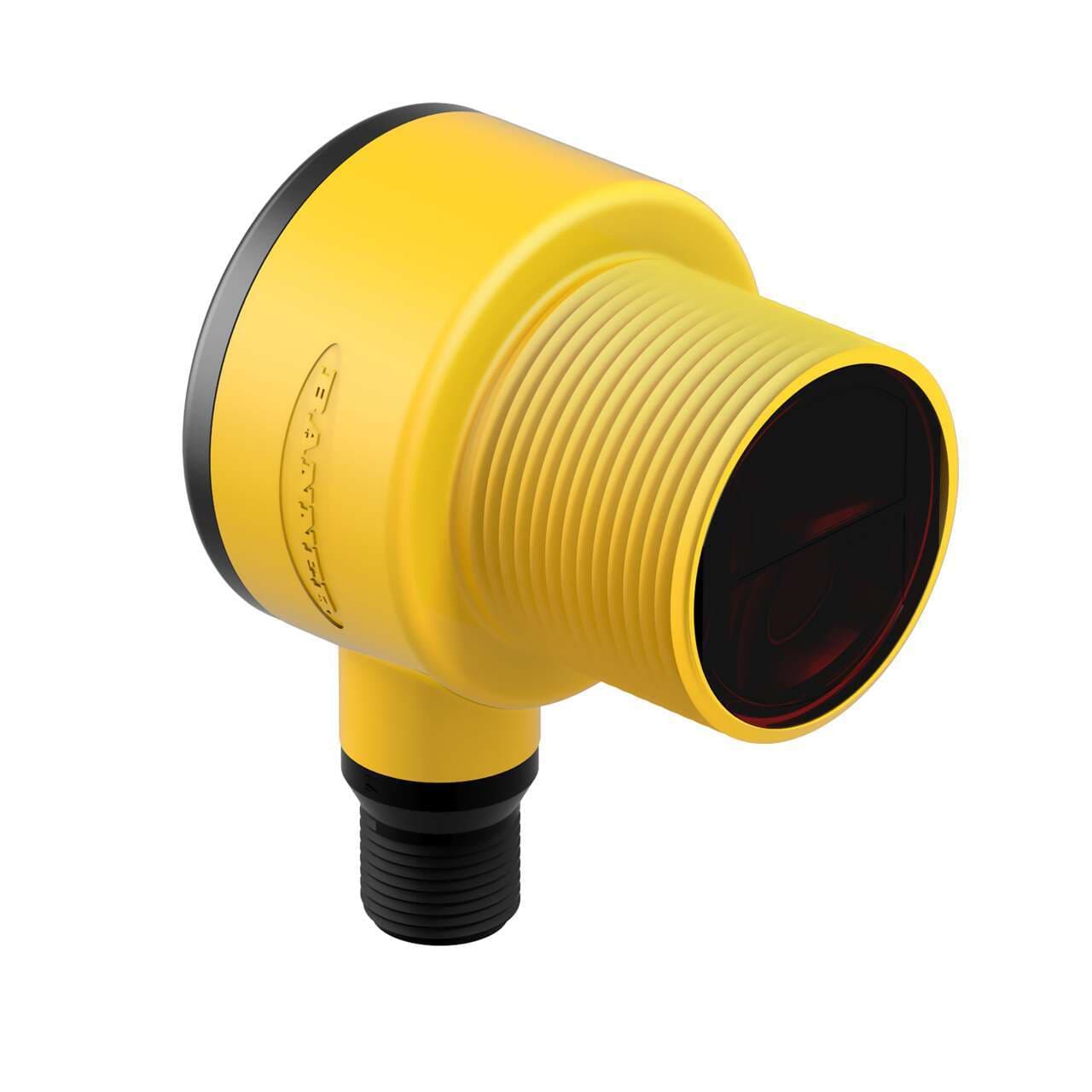

Banner Engineering T30SP6FF400Q is a fixed-field photo-electric sensor within the T30 series, designed with a background suppression system. This sensor features a thermoplastic housing and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The T30SP6FF400Q offers a degree of protection rated at IP69K NEMA 6P, making it suitable for demanding environments. Its M30 cylindrical threaded/barrel shape facilitates easy installation. This sensor provides one digital output via a PNP transistor and has a sensing distance of 400mm. It utilizes infrared (IR) light and has a response time of 3ms (0.003 s), with operating modes that include Light-ON and Dark-ON. The thread size for this sensor is M30.

Related documents T30SP6FF400Q Specs

T30SP6FF400Q 116161.pdf
