T30RW3FF200Q1

Banner

Product Lifecycle: Active

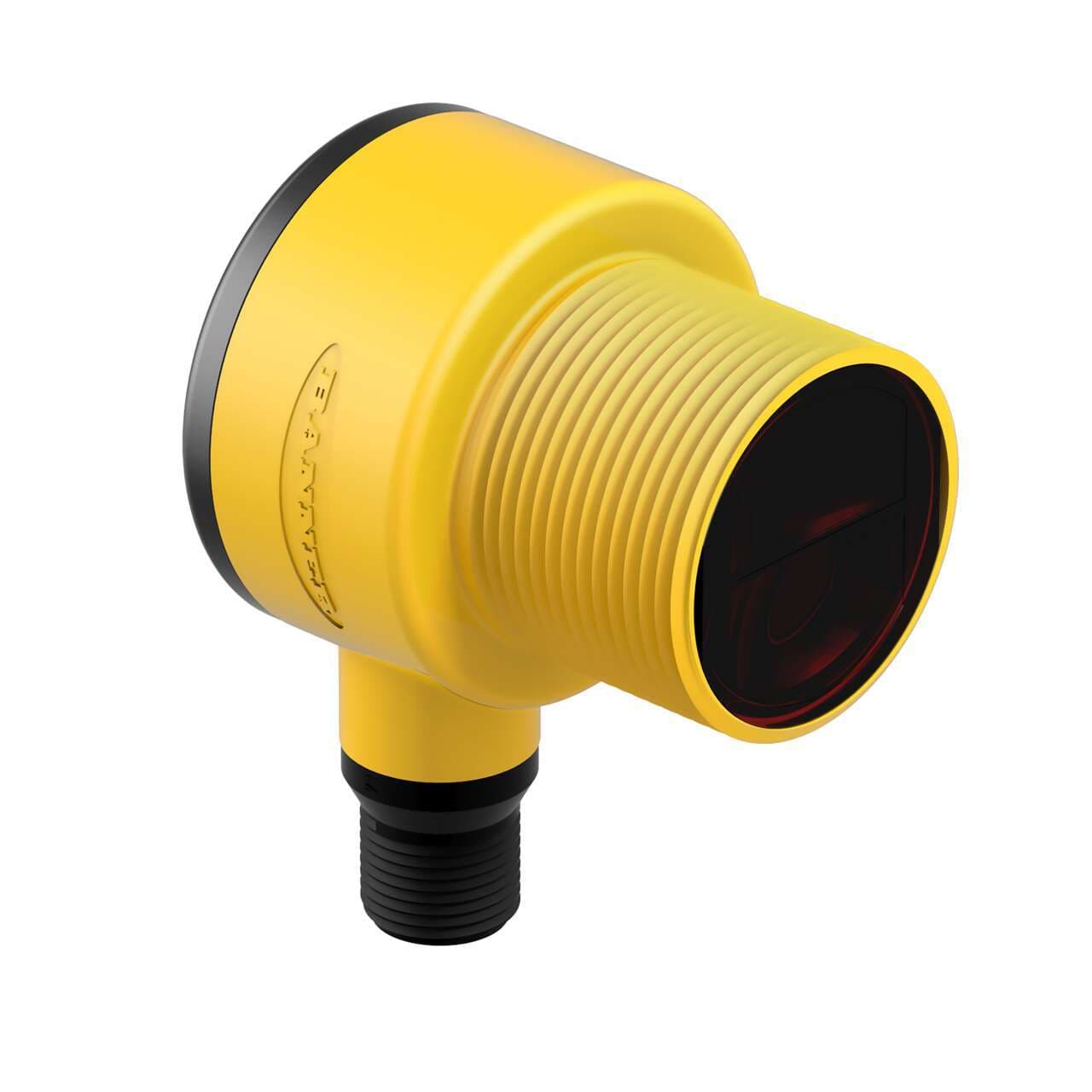

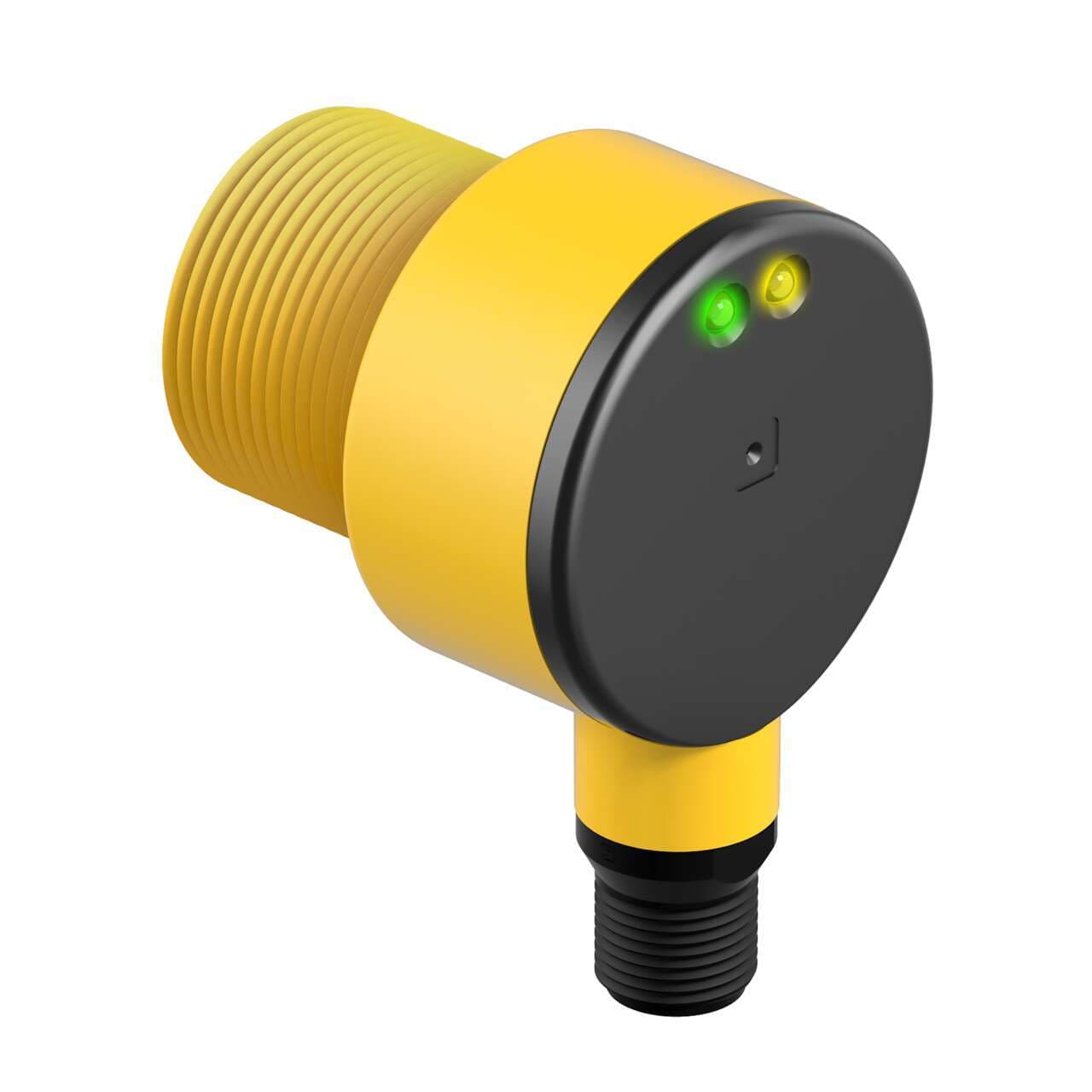

Banner Engineering T30RW3FF200Q1 is a fixed-field photo-electric sensor within the T30 series, featuring a background suppression system. This sensor is housed in thermoplastic and comes pre-equipped with a 4-pin 1/2" micro connector for connectivity. It operates on a supply voltage range of 20Vac-250Vac, with nominal voltages at 200Vac, 220Vac, and 240Vac. Designed for a wide range of ambient air temperatures, it functions effectively between -40 and +70 degrees Celsius. The T30RW3FF200Q1 offers a high degree of protection with an IP69K NEMA 6P rating, ensuring durability in harsh environments. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The sensor provides one digital output (Solid-state AC output; SPST contact type) and has a sensing distance of 200mm. It utilizes infrared light with a wavelength of 880 nm and responds within 16ms / 0.016 s. The operating mode is Dark-ON, tailored for specific application needs.

T30RW3FF200Q1

Banner Engineering T30RW3FF200Q1 is a fixed-field photo-electric sensor within the T30 series, featuring a background suppression system. This sensor is housed in thermoplastic and comes pre-equipped with a 4-pin 1/2" micro connector for connectivity. It operates on a supply voltage range of 20Vac-250Vac, with nominal voltages at 200Vac, 220Vac, and 240Vac. Designed for a wide range of ambient air temperatures, it functions effectively between -40 and +70 degrees Celsius. The T30RW3FF200Q1 offers a high degree of protection with an IP69K NEMA 6P rating, ensuring durability in harsh environments. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The sensor provides one digital output (Solid-state AC output; SPST contact type) and has a sensing distance of 200mm. It utilizes infrared light with a wavelength of 880 nm and responds within 16ms / 0.016 s. The operating mode is Dark-ON, tailored for specific application needs.

T30 LP/FF QD.pdf

T30 LP/FF QD.stp

Product details

T30 LP/FF QD.pdf

T30 LP/FF QD.stp

DeviceNetNo
IO LinkNo
Feature: Chemical ResistantNo
Feature: Ecolab CertifiedYes
Feature: AudibleNo
Feature: Hazardous AreaNo

Feature: EncapsulatedYes

Feature: Timing (Hold/Delay)No

Feature: Washdown RatedYes

Opposed Mode Emitter/ReceiverN/A

IndicatorLEDs

Barrel Diameter (mm)30

AdjustmentsN/A

Lens MaterialAcrylic

Max Op. Relative Humidity [%]90% @ 50°C

NEMA RatingNEMA 6P

Number of Pins4

Delay at Power-up (ms)100

IP RatingIP69

Repeatability (µs)4000

Special Feature: Water DetectionNo

Special Feature: Remote TeachNo

Max Op. Temp. (°C)70

Special Feature: Intrinsically SafeNo

Output response time (ms)16

Min Op. Temp. (°C)-40

OperationDark Operate

Quick Disconnect Type1/2 in. (Micro)

ConnectionIntegral QD

Power Supply/Supply Voltage20-250 V ac

Sensing BeamInfrared LED

PowerAC

Sensing Mode (General)Proximity

Housing StyleBarrel

Primary Housing MaterialThermoplastic

Max Sensing Distance (mm)200

Sensing Mode (Detailed)Background Suppression (Fixed)

Input/OutputSolid-State AC Switch

OutputsSolid-State AC Switch

Main functionSensor (Photo-electric)

Sensing distance200mm

Designbackground suppression system

Connection typePre-equipped with 4-pin 1/2" Micro connector

Response time16ms / 0.016 s

Light ColorInfrared (IR)

Operating modeDark-ON

Supply voltage (AC)20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Wavelength880 nm

Digital outputs1 x digital output (Solid-state AC output; SPST contact type)

Materialthermoplastic housing

Sub-range nameT30 series

FunctionsFixed-field photo-electric sensor green LED (power ON) yellow LED (output state)

Primary brandBanner Engineering

Product series / family nameEZ-BEAM series

ShapeCylindrical threaded/barrel

Thread sizeM30

Ambient air temperature for operation-40...+70 °C

Order code / Manufacturer SKU33432

Degree of protectionIP69K NEMA 6P

Compliant with standard(s)cULus cCSAus CE
