Part#:SP150WP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

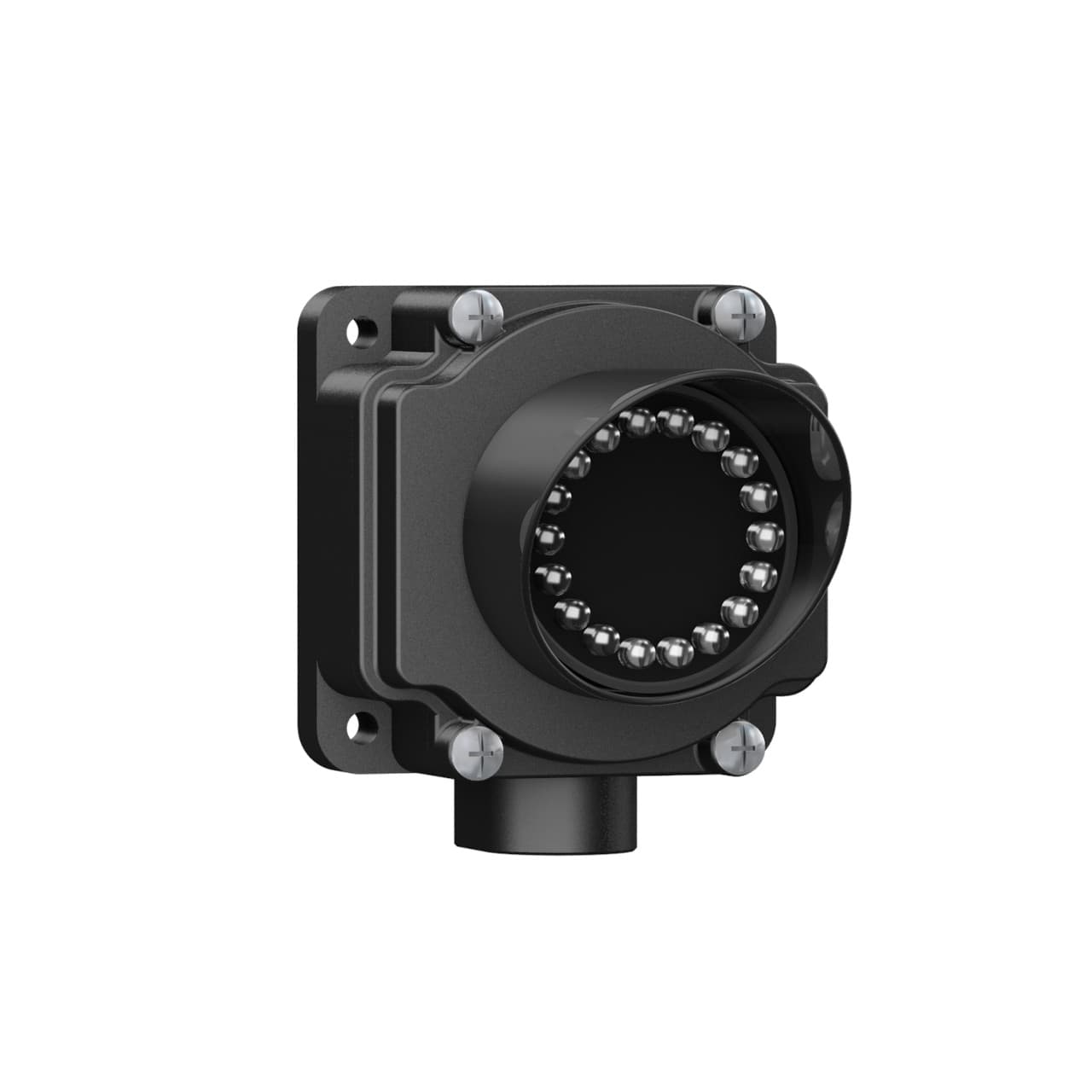

Banner Engineering SP150WP, part of the EZ-LIGHT series, is a traffic light designed with a 1-tier 1-color white LED illumination. This product features a polycarbonate (PC) base and a black housing, equipped with a screw-clamp terminal connection for secure installation. It operates on a supply voltage range of 15Vdc to 30Vdc, with a nominal voltage of 24Vdc, and can be mounted on surfaces or walls. The SP150WP is designed to function within an ambient air temperature range of -40°C to +50°C, ensuring operation in various environmental conditions. It boasts an IP67 degree of protection, indicating a high level of resistance to dust and water ingress. The current consumption is rated at 120mA, and it includes 1 x digital input (15-30Vdc; PNP) for color control, enhancing its functionality as an LED traffic signal light.

Product Details

  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Application: Traffic Light
    Yes
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Indication Intensity
    High Brightness & Daylight Visible
  • Max Input Response Time (ms)
    10
  • Physical Dimensions (LxWxH or DxH mm)
    93.1 x 80.9 x 91.6
  • Feature: Hazardous Area
    No
  • Environmental Rating
    IP67
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Input Type
    Bimodal (PNP/NPN)
  • Supply Voltage
    15-30 V dc
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    120
  • Connection
    Terminal
  • Color 1 - Wavelength/Color Temp/Coordinates
    6000K
  • Lumens Color 1
    20.0
  • Animation Option 1
    Solid On
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Product Size (mm)
    Other
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes
  • Housing Style
    Flat Mount - Signal Light
  • Mounting Thread
    No Thread
  • Primary Housing Material
    Polycarbonate
  • Power
    DC
  • Power Source
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
