SME312FVBQD Banner Proximity Sensors
Part#:SME312FVBQD
Alt. Part#:54595
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

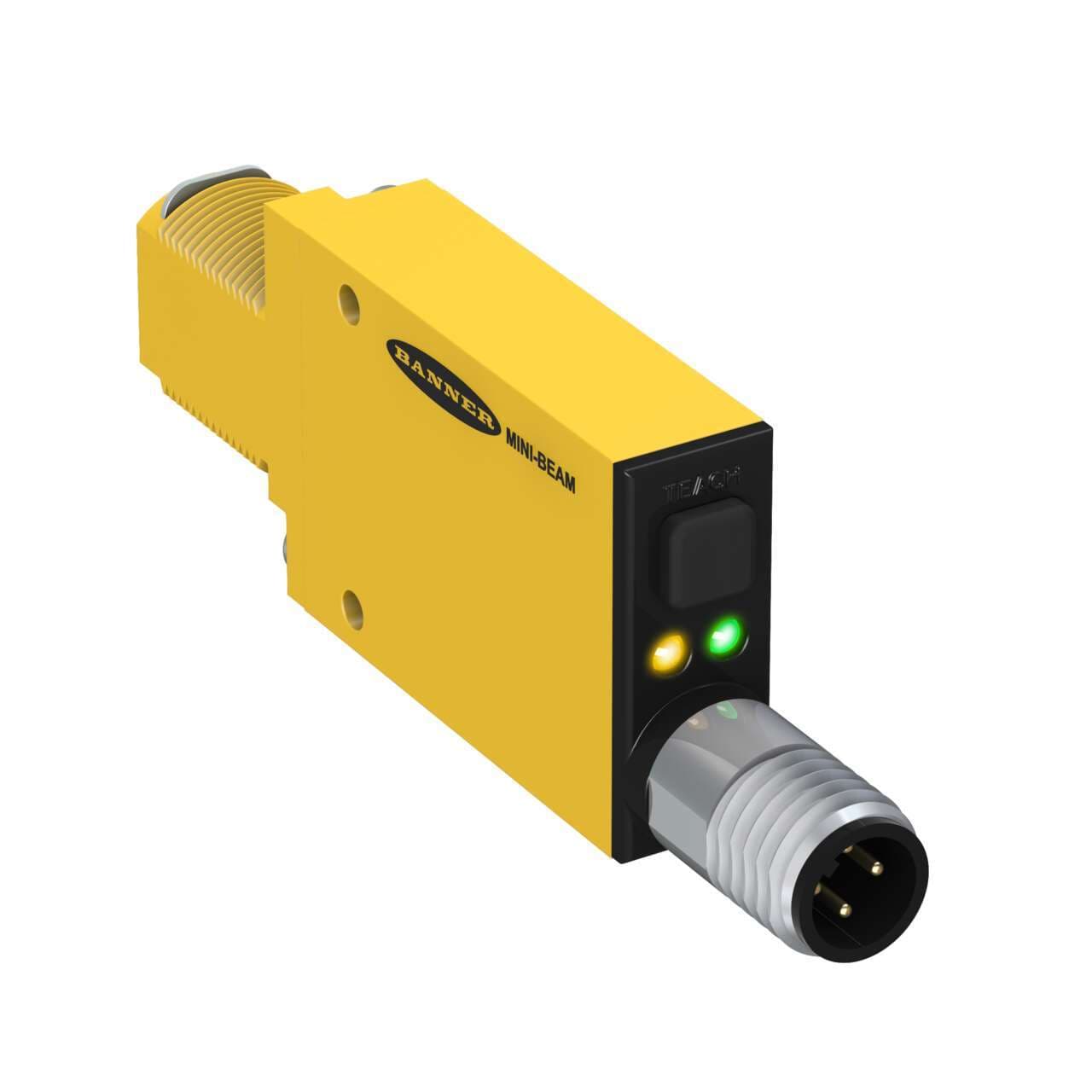

MINI-BEAM EXPERT: Visible Blue Glass Fiber Optic; Range: Depends on Fiber; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
Product Details
- Weight 95.25432 g
- Country Of Origin US
- Sub-range name SME312 Expert
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Compliant with standard(s) cURus CE
- Product series / family name MINI-BEAM series
- Thread size M18
- Operating mode Light-ON Dark-ON
- Primary brand Banner Engineering
- Wavelength 475 nm
- Mounting mode Threaded mount
- Order code / Manufacturer SKU 54595
- Light Color Visible blue
- Shape Rectangular
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Ambient air temperature for operation -20...+70 °C
- Main function Sensor (Photo-electric)
- Functions Photo-electric fiber optic sensor green / red LED (power ON) amber LED (output state) TEACH mode
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Material thermoplastic housing Glass fiber
- Fiber Type Glass Only
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Indicator Display Type Indicator LEDs
- Housing Style Rectangular w/M18 Mount
- Repeatability (µs) 100
- Power Supply/Supply Voltage 10-30 V dc
- Housing Material Thermoplastic
- Power DC
- Quick Disconnect Type M12 (Euro)
- Max Op. Relative Humidity (%) 90% @ 50°C
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Output Type (Specific) Single Discrete
- Intrinsically Safe No
- Feature: Timing (Hold/Delay) No
- Output Bipolar (NPN & PNP)
- Connection Integral QD
- Special Feature: Remote Teach Yes
- Minimum response time (ms) .5
- Min Op. Temperature (°C) -20
- IO Link No
- Color LED - Amplifiers Blue
- IP Rating IP67
- Delay at Power-up (ms) 1000
- Number of Pins 5
- Input/Output Discrete
- Adjustments Teach Button
- Feature: Audible No
- Max Op. Temperature (°C) 70
- Special Feature: Bussable Power No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SME312FVBQD on Powermatic Associates is $239.00. Order now.
About the product
Banner Engineering SME312FVBQD is a photo-electric fiber optic sensor from the SME312 Expert series. This sensor features a thermoplastic housing with glass fiber and is designed with TEACH mode for versatile application. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy integration. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed for M18 threaded mount installation and can operate within an ambient air temperature range of -20 to +70°C. The SME312FVBQD offers a high degree of protection, rated at IP67 and compliant with multiple NEMA standards including 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, ensuring durability in various environments. Its rectangular shape is equipped with 1 x digital output (PNP/NPN transistor), and it operates with a visible blue light at a wavelength of 475 nm. The sensor's response time is quick, at 0.5ms / 0.0005 s, and it supports both Light-ON and Dark-ON operating modes for flexible application.
