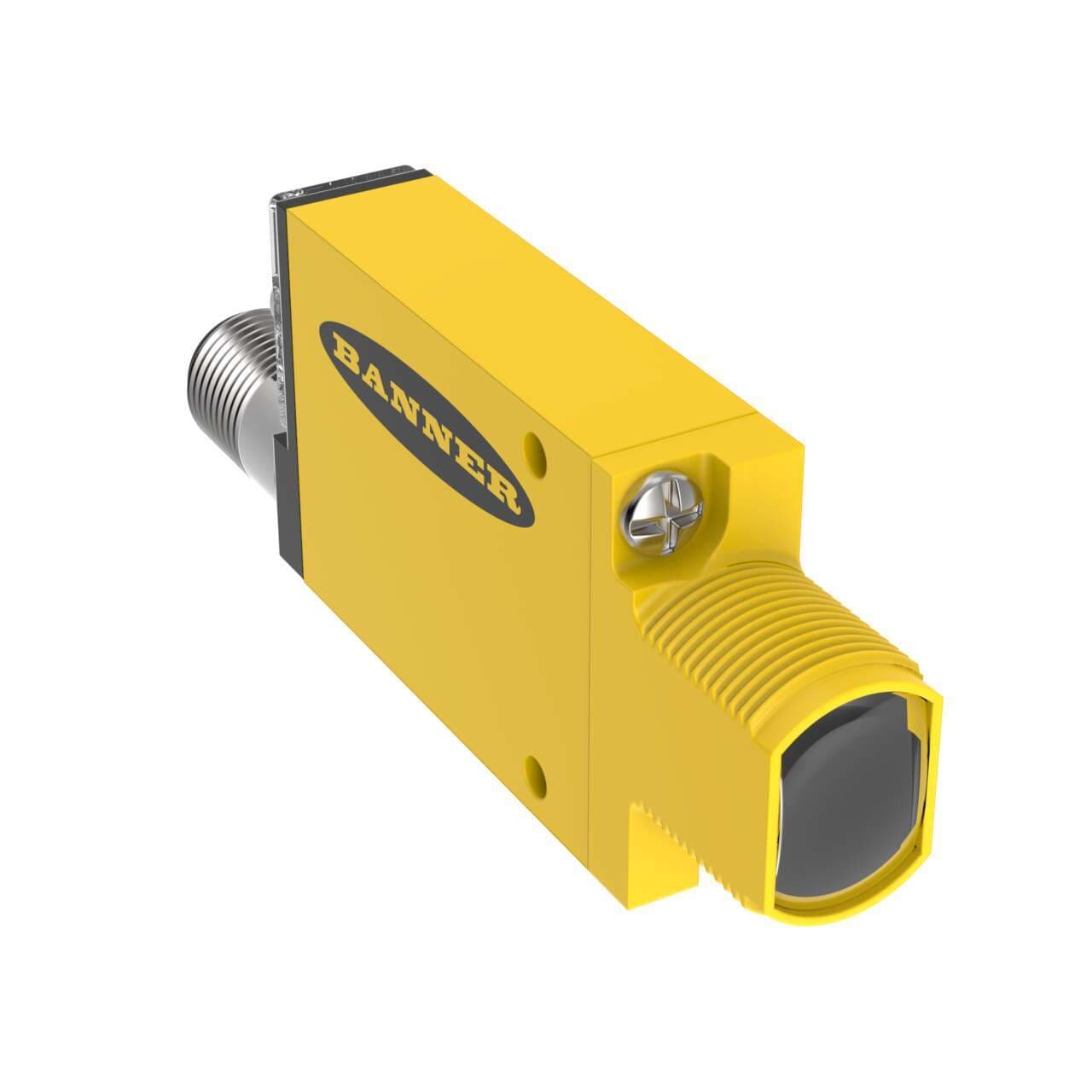

SM2A31RLQD Banner Proximity Sensors
Part#:SM2A31RLQD
Alt. Part#:26991
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Receiver; Range: 30 m; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 3-pin Micro Integral QD
Product Details
- Weight 69.853168 g
- Country Of Origin US
- Sub-range name SM2A312
- Product series / family name MINI-BEAM series
- Design through-beam system / opposed mode
- Shape Rectangular
- Primary brand Banner Engineering
- Functions Photo-electric sensor receiver red LED (power ON) potentiometer adjustment
- Wavelength 880 nm
- Mounting mode Threaded mount
- Ambient air temperature for operation -20...+70 °C
- Main function Sensor (Photo-electric)
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Sensing distance 30m
- Thread size M18
- Response time 2ms / 0.002 s
- Compliant with standard(s) cURus CSA CE
- Light Color Infrared (IR)
- Connection type Pre-equipped with 3-pin 1/2" Micro connector
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Order code / Manufacturer SKU 26991
- Housing Style Rectangular w/M18 Mount
- Max Sensing Distance (mm) 30000
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Power AC
- Operation Light/Dark Operate
- Repeatability (µs) 300
- Opposed Mode Emitter/Receiver Receiver
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Connection Integral QD
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Receiver
- Power Supply/Supply Voltage 24-240 V ac
- Delay at Power-up (ms) 300
- Sensing Mode (General) Opposed
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Encapsulated Yes
- Quick Disconnect Type 1/2 in. (Micro)
- Number of Pins 3
- DeviceNet No
- Feature: Timing (Hold/Delay) No
- Input/Output Solid-State AC Switch
- Sensing Beam Infrared LED
- Output response time (ms) 2 ON/1 OFF
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Outputs Solid-State AC Switch
- Special Feature: Water Detection No
- Max Op. Temp. (°C) 70
- Indicator LEDs
- IO Link No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- Adjustments Potentiometer
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A31RLQD on Powermatic Associates is $158.00. Order now.
About the product
Banner Engineering SM2A31RLQD is a photo-electric sensor designed for through-beam system applications with opposed mode potentiometer adjustment. This sensor, part of the SM2A312 series, functions as a receiver alone and is housed in a thermoplastic casing with an acrylic lens. It comes pre-equipped with a 3-pin 1/2" micro connector for connectivity and operates on a supply voltage ranging from 24Vac to 240Vac, with nominal voltages at 200Vac and 220Vac. The SM2A31RLQD features an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. It offers a high degree of protection, rated at IP67 and compliant with multiple NEMA standards, including 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, ensuring durability in various environmental conditions. The sensor has a rectangular shape and includes 1 x digital output (Solid-state AC output; SPST contact type) for signaling. It boasts a sensing distance of up to 30 meters and utilizes infrared light with a wavelength of 880 nm for detection. The response time is swift at 2ms / 0.002 s, and it supports both Light-ON and Dark-ON operating modes for versatile application use.
