SM2A312CV W/30 Banner Proximity Sensors

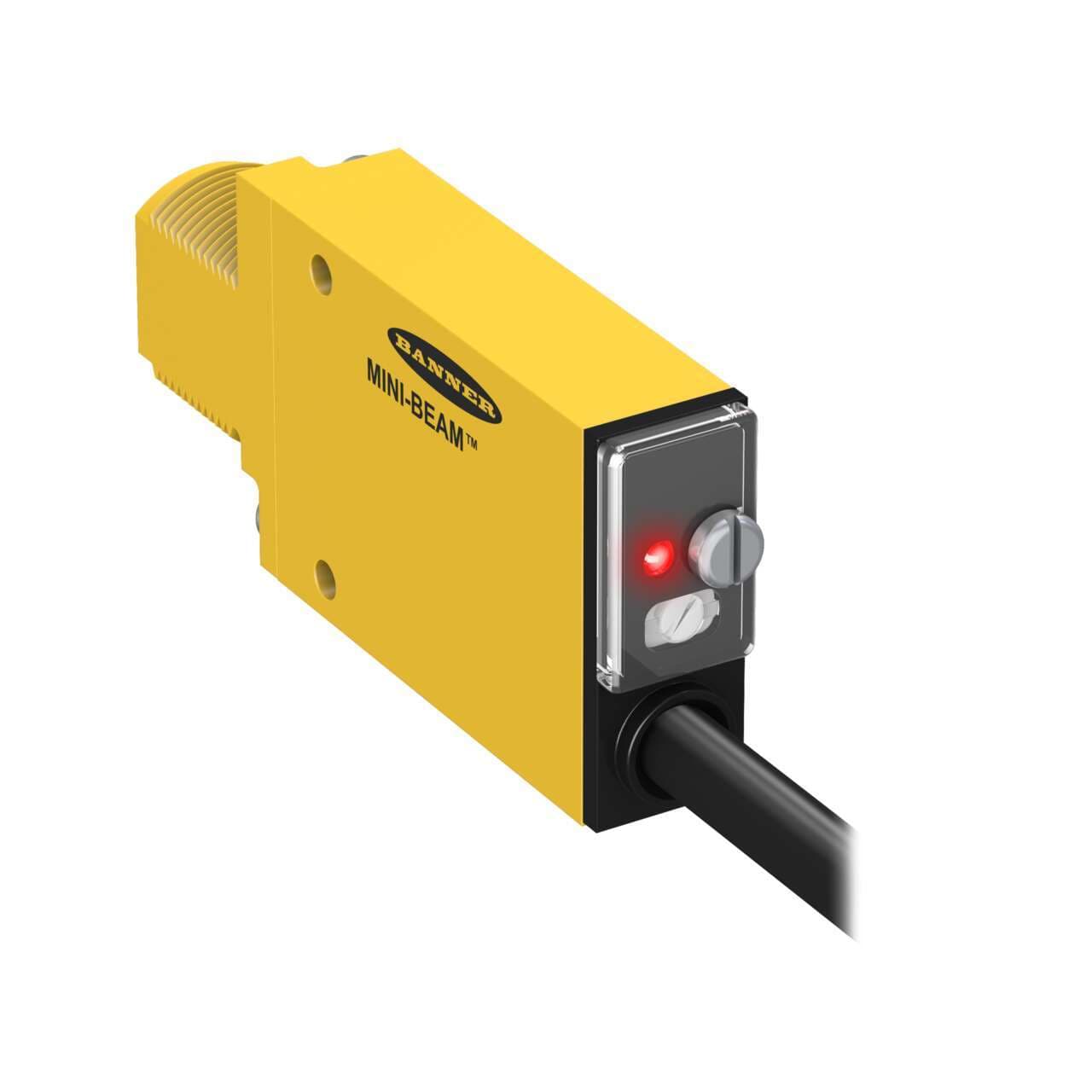

Banner SM2A312CV W/30 MINI-BEAM: Visible Red 650 nm Convergent; Focal Point: 16 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 9 m (30 ft) cable
Banner

Part#:SM2A312CV W/30

Manufacturer:Banner

Alt. Part#:26292

Product Lifecycle:Active

Get a quick Quote!

MINI-BEAM: Visible Red 650 nm Convergent; Focal Point: 16 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 9 m (30 ft) cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM2A312CV W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    580.59776 g
  • Country Of Origin
    US
  • DeviceNet
    No
  • Feature: Encapsulated
    Yes
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    Potentiometer
  • Lens Material
    Acrylic
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Hazardous Area
    No
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Delay at Power-up (ms)
    300
  • IP Rating
    IP67
  • Number of Pins
    2
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Sensing Beam Wavelength
    650
  • Repeatability (µs)
    1300
  • Output response time (ms)
    4
  • Max Op. Temp. (°C)
    70
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -20
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    24-240 V ac
  • Connection
    Cable
  • Outputs
    Solid-State AC Switch
  • Max Sensing Distance (mm)
    16
  • Input/Output
    Solid-State AC Switch
  • Sensing Mode (Detailed)
    Convergent
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular w/M18 Mount
  • Sensing Beam
    Visible Red LED
  • Sensing Mode (General)
    Proximity
  • Power
    AC
  • Cable Length (m)
    9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SM2A312CV W/30 Description

Banner Engineering SM2A312CV W/30 is a photo-electric sensor from the SM2A312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing and an acrylic lens. It is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. The supply voltage for this sensor ranges from 24Vac to 240Vac, with nominal voltages of 200Vac and 220Vac. It is designed for M18 threaded mount installation and can operate within an ambient air temperature range of -20 to +70°C. The SM2A312CV W/30 offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, and NEMA 13. Its shape is rectangular, and it includes 1 x digital output (Solid-state AC output; SPST contact type). The sensing distance is 16mm, with a visible red light color, a response time of 4ms / 0.004 s, and operates in both Light-ON and Dark-ON modes. The wavelength of the light is 650 nm.
