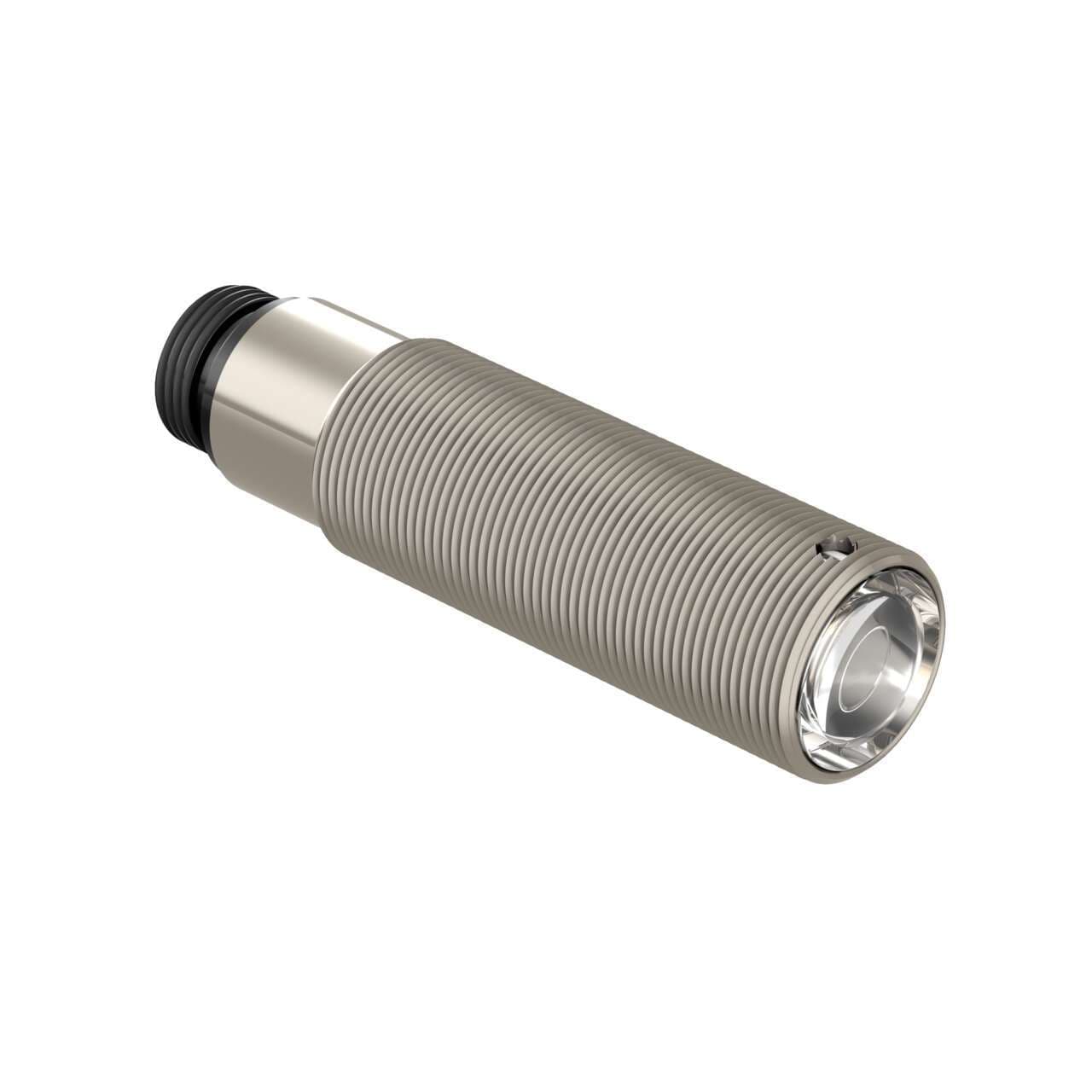

SM2A30SRLQD Banner Proximity Sensors

SM2A30SRLQD on Powermatic Associates
Banner

Part#:SM2A30SRLQD

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:27294

Product Lifecycle:Active

Get a quick Quote!

SM30 Series: Receiver - Frequency A Stainless Stl; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Light Operate; 3-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM2A30SRLQD Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    301.63868 g
  • Country Of Origin
    MX
  • Feature: Chemical Resistant
    Yes
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6P
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Encapsulated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    30
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Adjustments
    N/A
  • Opposed Mode Emitter/Receiver
    Receiver
  • Indicator
    LEDs
  • IP Rating
    IP67
  • Number of Pins
    3
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Repeatability (µs)
    1000
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    70
  • Delay at Power-up (ms)
    N/A
  • Output response time (ms)
    10
  • Operation
    Light Operate
  • Special Feature: Water Detection
    No
  • Connection
    Integral QD
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Power Supply/Supply Voltage
    24-240 V ac
  • Outputs
    Solid-State AC Switch
  • Max Sensing Distance (mm)
    150000
  • Housing Style
    Barrel
  • Primary Housing Material
    Stainless Steel
  • Input/Output
    Solid-State AC Switch
  • Sensing Mode (Detailed)
    Receiver
  • Sensing Mode (General)
    Opposed
  • Power
    AC
  • Sensing Beam
    Infrared LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SM2A30SRLQD Description

Banner Engineering SM2A30SRLQD is a photo-electric sensor designed for through-beam system applications, part of the SM30 series. This sensor operates as a receiver alone, featuring "A" modulation frequency and is washdown rated. It is housed in stainless steel, ensuring durability, and comes pre-equipped with a 3-pin 7/8" mini connector for easy installation. The sensor is designed to work with a supply voltage ranging from 24Vac to 240Vac, with nominal voltages at 200Vac and 220Vac. It can operate in ambient air temperatures from -40 to +70°C. With an IP67, NEMA 6P, and IP69K degree of protection, it is well-suited for harsh environments. The sensor has a cylindrical M30 threaded/barrel shape, includes 1 digital output (Solid-state AC output), and offers a sensing distance of up to 150m. It utilizes infrared light with a wavelength of 880 nm and has a quick response time of 10ms. The operating mode is Light-ON.

Related documents SM2A30SRLQD Specs

SM2A30SRLQD 03541.pdf
