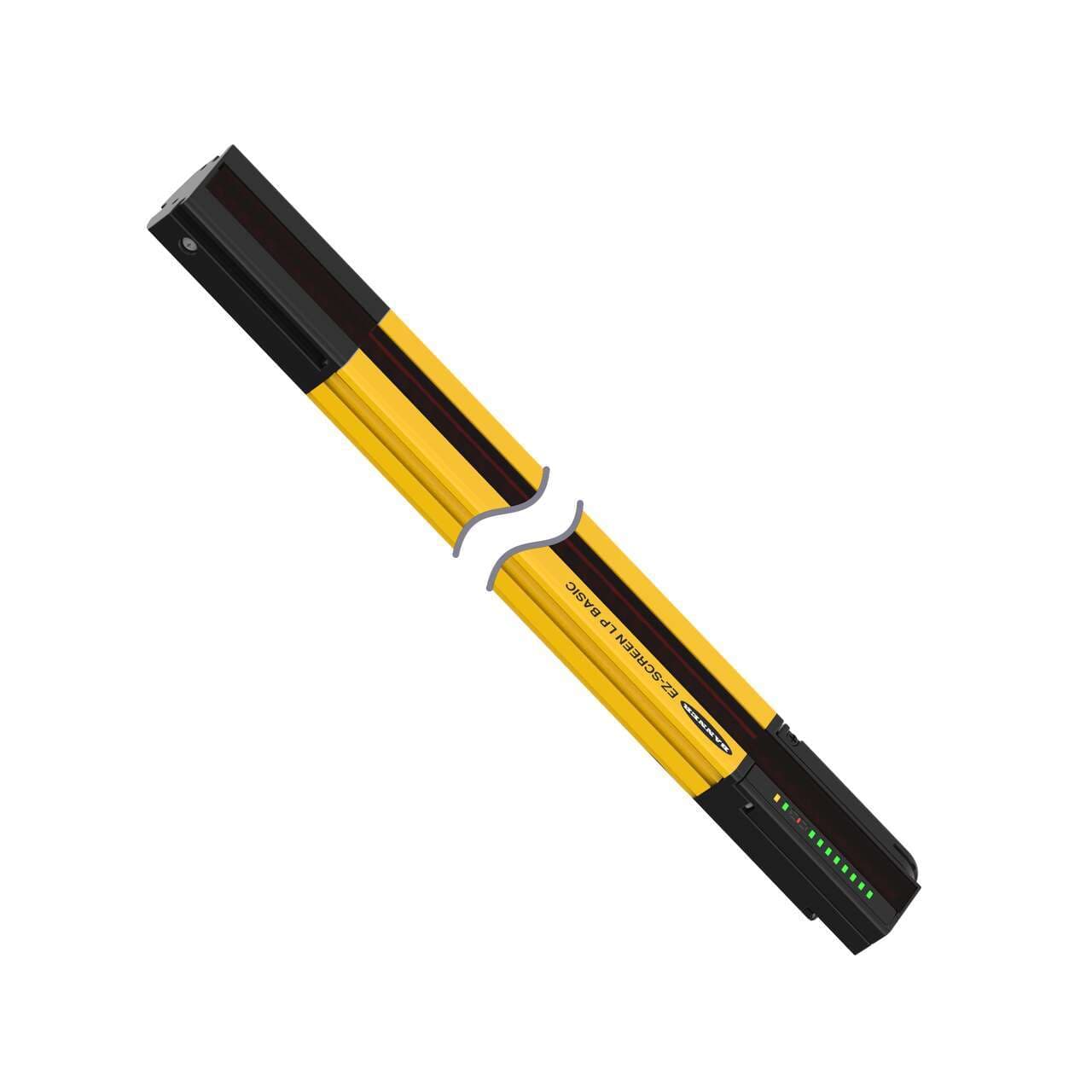

SLPVAR14-550 Banner Safety Light Curtains

SLPVAR14-550 on Powermatic Associates
Banner

Part#:SLPVAR14-550

Alt. Part#:805344

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Low Profile BASIC, Receiver; Resolution: 14 mm Response (Tr): 16.5 ms; Beams: 55; Range: 0.1-4 m (4 in - 13.1 ft); Height 550 mm (21.7 in); Removable Disconnect (RD) Cordsets & Mounting Hardware Ordered Separately

Product Details

  • Weight
    1350.343384 g
  • Country Of Origin
    US
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Supply Current
    150 mA max.
  • OSSD Rating
    24 V dc at 0.5 A each
  • Feature: End-to-End Sensing
    Yes
  • Trip/Latch Output
    N/A
  • Test Input
    No
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • Shock
    10g at 16ms (6000 cycles)
  • System Type
    Receiver
  • Fault Output
    No
  • Short Protection
    Yes
  • Scan Code
    None
  • SIL Rating
    SIL3; CL3
  • Electrical Safety Class
    III
  • PL Rating
    Ple
  • Reduced Resolution
    No
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Recovery Time
    33-220 / 109-800
  • Resolution (mm)
    14
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 4
  • IP Rating
    IP54
  • Housing Finish
    Yellow Polyester
  • Overall Length (mm)
    550
  • Fixed Blanking
    No
  • External Monitoring Device
    No
  • Connector Type
    Removable Disconnect
  • Dimensions WxD (mm)
    28 x 26
  • Defined Area Height (mm)
    550
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPVAR14-550 on Powermatic Associates is $898.00. Order now.

About the product

Banner Engineering SLPVAR14-550 is a safety light curtain from the LP Basic series designed for finger detection with a resolution of 14mm. This unit, serving as a receiver alone, is encased in an aluminium housing with an acrylic lens and die-cast zinc end caps. It features a protective height of 550mm and is pre-wired with a 300mm pigtail that terminates with an RD connector and bare end flying leads. The SLPVAR14-550 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP54. The dimensions include a net width of 28mm, a net height of 549mm, and a net depth of 26mm. It is designed with a 14mm beam spacing/pitch and can sense objects within a distance of 10cm to 4m. The device has a response time of 16.5ms and includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). The housing is colored yellow.
