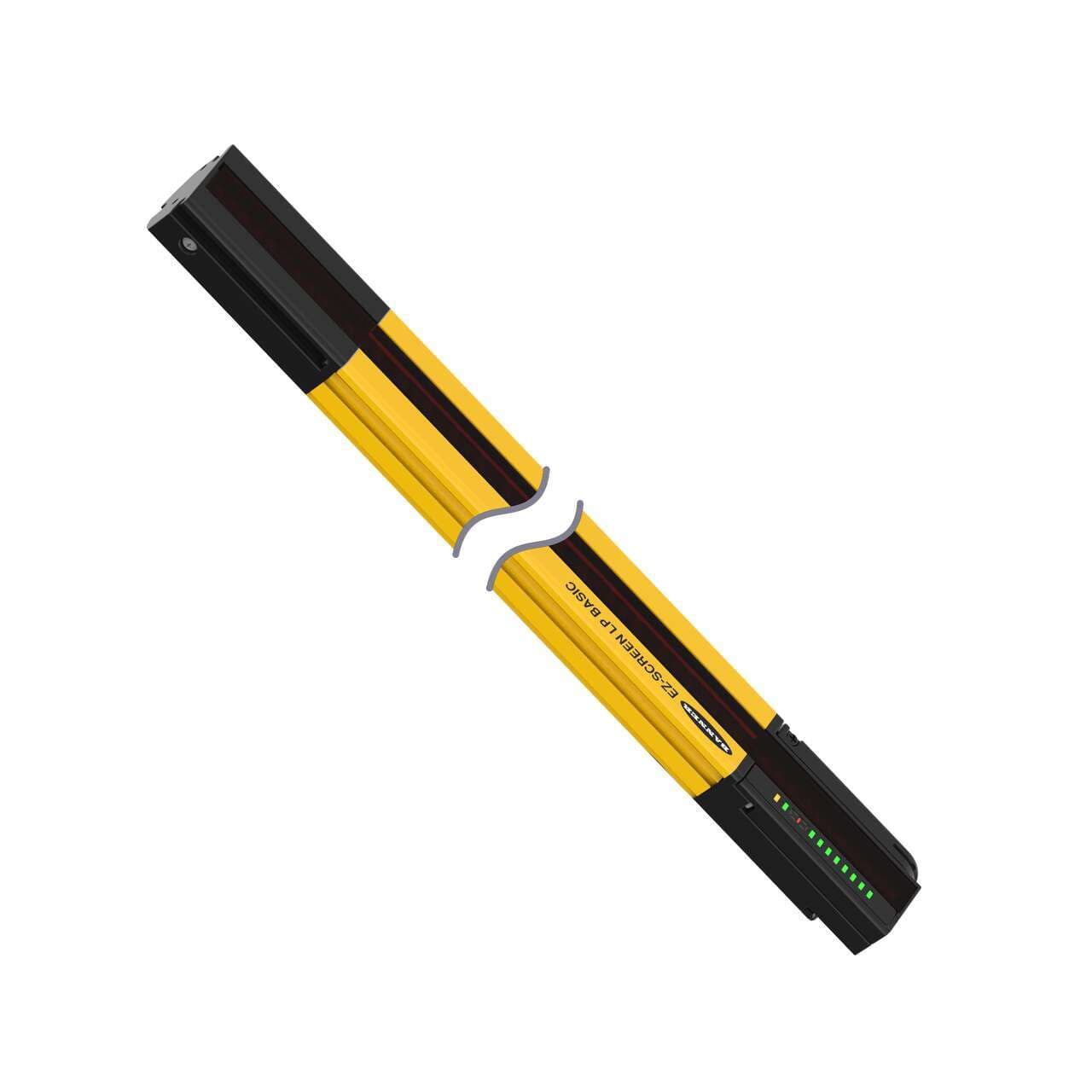

SLPVAR14-270 Banner Safety Light Curtains

SLPVAR14-270 on Powermatic Associates
Banner

Part#:SLPVAR14-270

Alt. Part#:805346

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Low Profile BASIC, Receiver; Resolution: 14 mm; Response (Tr): 10.5 ms; Beams: 27; Range: 0.1-4 m (4 in - 13.1 ft); Height: 270 mm (10.6 in); Removable Disconnect (RD) Cordsets & Mounting Hardware Ordered Separately

Product Details

  • Weight
    1098.599824 g
  • Country Of Origin
    US
  • Feature: End-to-End Sensing
    Yes
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Supply Current
    150 mA max.
  • Trip/Latch Output
    N/A
  • OSSD Rating
    24 V dc at 0.5 A each
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Fault Output
    No
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    None
  • Short Protection
    Yes
  • Electrical Safety Class
    III
  • System Type
    Receiver
  • SIL Rating
    SIL3; CL3
  • Reduced Resolution
    No
  • Resolution (mm)
    14
  • Recovery Time
    33-220 / 109-800
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Distance (m)
    0.1 - 4
  • PL Rating
    Ple
  • Housing Finish
    Yellow Polyester
  • IP Rating
    IP54
  • Fixed Blanking
    No
  • Overall Length (mm)
    270
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum
  • External Monitoring Device
    No
  • Connector Type
    Removable Disconnect
  • Dimensions WxD (mm)
    28 x 26
  • Defined Area Height (mm)
    270
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPVAR14-270 on Powermatic Associates is $627.00. Order now.

About the product

Banner Engineering SLPVAR14-270 is a safety light curtain from the LP Basic series designed for finger detection with a resolution of 14mm. This unit, serving as the receiver alone, is encased in an aluminium housing with an acrylic lens and die-cast zinc end caps. It features a protective height of 270mm and is pre-wired with a 300mm pigtail that terminates with an RD connector and bare end flying leads. The device operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP54. The SLPVAR14-270 has dimensions of 28mm in width, 270mm in height, and 26mm in depth. It is designed with a yellow housing and provides a sensing distance from 10cm to 4m, with a response time of 10.5ms. Additionally, it is equipped with 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and has a 14mm beam spacing/pitch.
