SLPVAP25-550 Banner Safety Light Curtains

SLPVAP25-550 on Powermatic Associates
Banner

Part#:SLPVAP25-550

Alt. Part#:805355

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Low Profile BASIC, Pair; Resolution: 25 mm; Response (Tr): 11 ms; Beams: 28; Range: 0.1-4 m (4 in - 13.1 ft); Height: 550 mm (21.7 in); Removable Disconnect (RD) Cordsets & Mounting Hardware Ordered Separately

Product Details

  • Weight
    2609.061184 g
  • Country Of Origin
    US
  • Scan Code
    None
  • IP Rating
    IP54
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Feature: End-to-End Sensing
    Yes
  • Feature: ESD Safe
    No
  • Feature: Integral Muting
    No
  • Trip/Latch Output
    N/A
  • OSSD Rating
    24 V dc at 0.5 A each
  • Test Input
    No
  • Fault Output
    No
  • Supply Current
    210 mA max.
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Short Protection
    Yes
  • System Type
    Emitter/Receiver Pair
  • Shock
    10g at 16ms (6000 cycles)
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • SIL Rating
    SIL3; CL3
  • Electrical Safety Class
    III
  • Reduced Resolution
    No
  • Resolution (mm)
    25
  • Recovery Time
    25-152 / 81-495
  • Operating Distance (m)
    0.1 - 4
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Housing Finish
    Yellow Polyester
  • Defined Area Height (mm)
    550
  • External Monitoring Device
    No
  • PL Rating
    Ple
  • Fixed Blanking
    No
  • Dimensions WxD (mm)
    28 x 26
  • Overall Length (mm)
    550
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum
  • Connector Type
    Removable Disconnect

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPVAP25-550 on Powermatic Associates is $1,325.00. Order now.

About the product

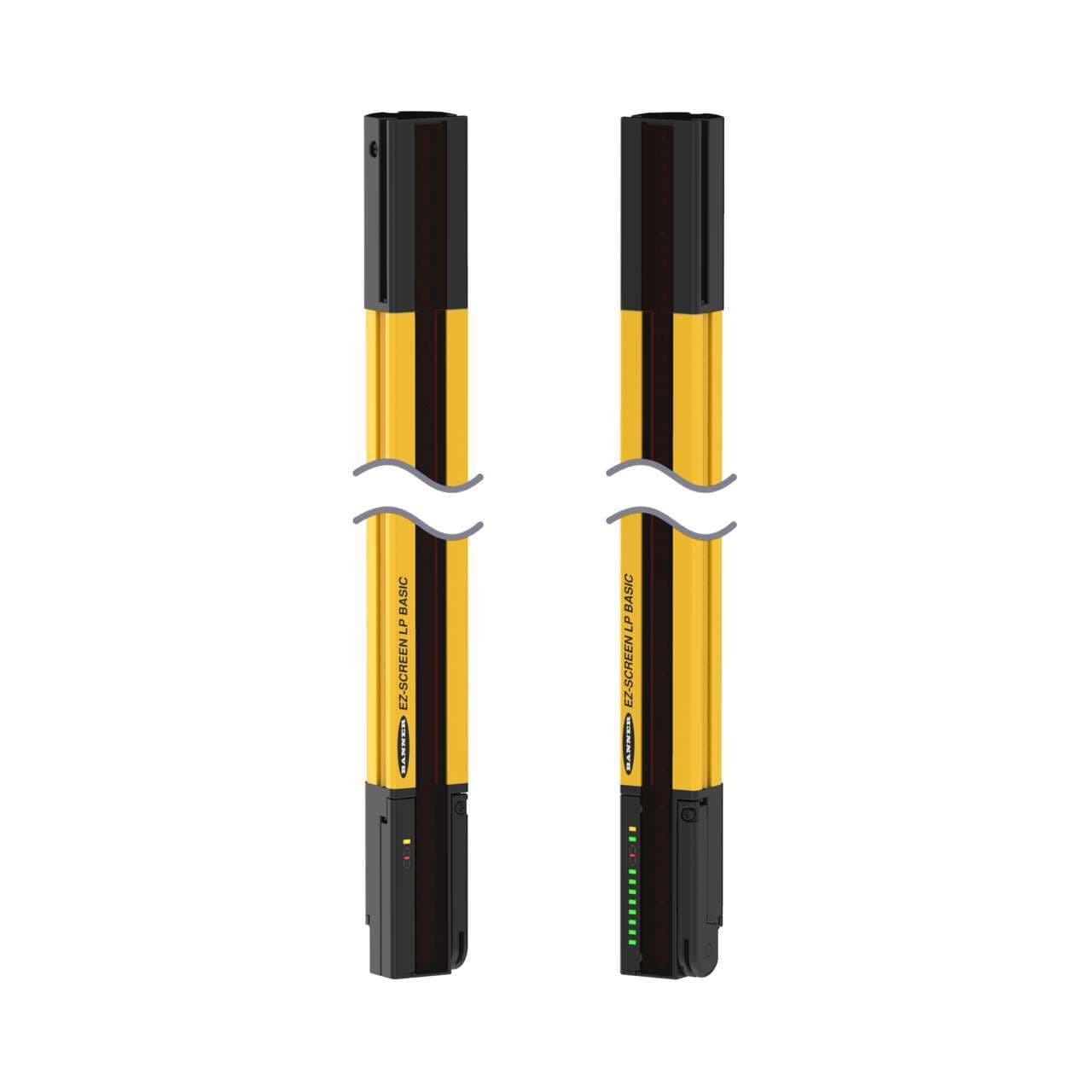

Banner Engineering SLPVAP25-550 is a safety light curtain from the LP Basic series designed for hand detection with a resolution of 25mm. This unit features an emitter and receiver pair housed in yellow aluminum with acrylic lens and die-cast zinc end caps. It offers a protective height of 550mm and is pre-wired with a 300mm pigtail terminated with an RD connector and bare end flying leads for connectivity. The SLPVAP25-550 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP54 degree of protection, ensuring durability against dust and splashing water. The device has a net width of 28mm, a height of 549mm, and a depth of 26mm. It features a 25mm beam spacing/pitch and provides a sensing distance from 10cm to 4m. The light curtain emits infrared (IR) light with a wavelength of 850 nm and has a response time of 11ms. Additionally, it is equipped with 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) for integration into safety systems.
