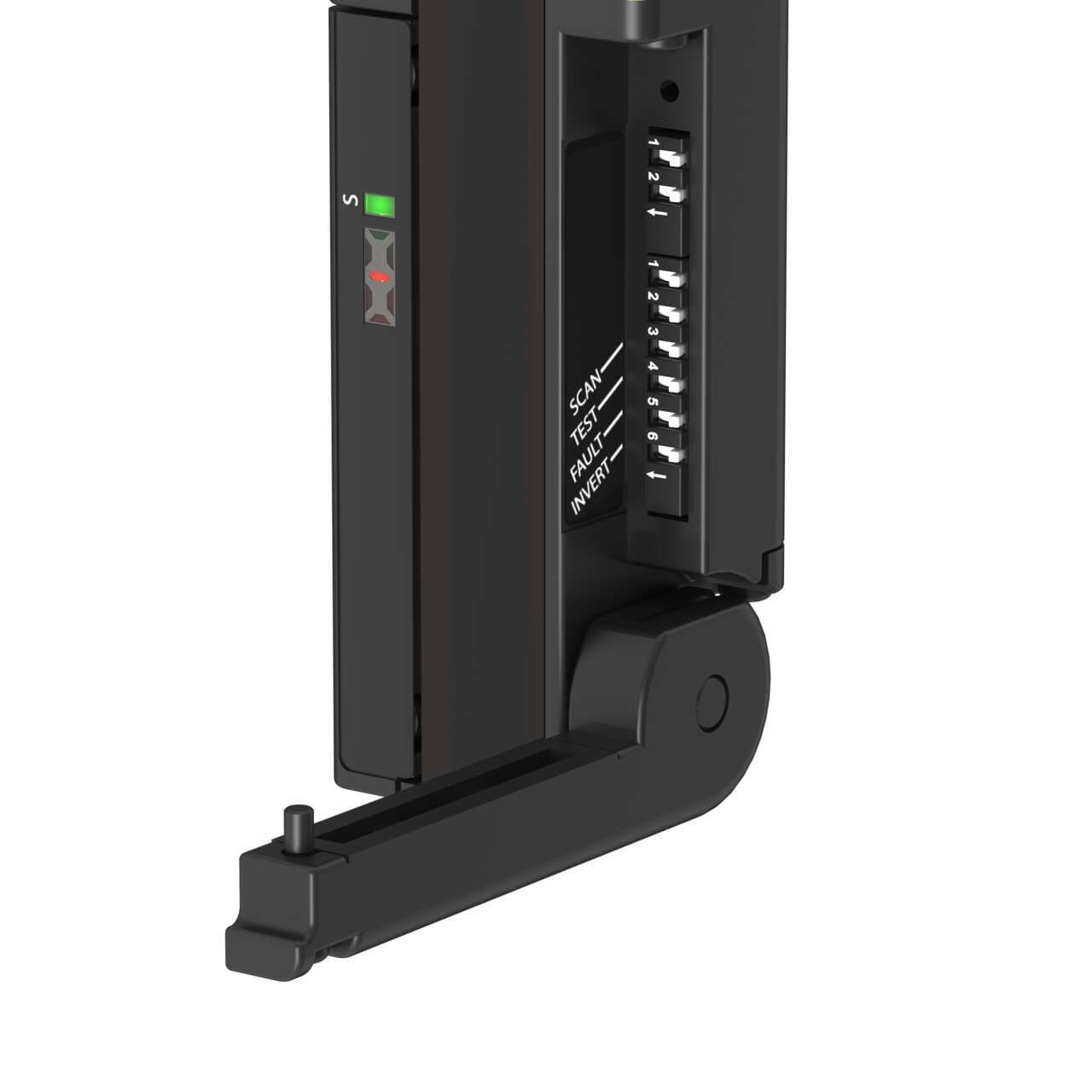

SLPCP25-690P88 Banner Safety Light Curtains
Part#:SLPCP25-690P88
Alt. Part#:83761
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPCP25-690P88 EZ-SCREEN Low Profile Cascade Pair; Resolution: 25 mm; Response (Tr): 12.5 ms; Beams: 35; Range: 0.1-7 m (4 in - 23 ft); Height: 690 mm (27.2 in); 300 mm (1 ft) 8-pin M12 Pigtail QD
Product Details
- Weight 2222.6008 g
- Country Of Origin US
- Feature: Integral Muting No
- Feature: ESD Safe No
- Feature: End-to-End Sensing Yes
- Feature: Cascade Yes
- Test Input Yes
- Trip/Latch Output Selectable
- Supply Current 210 mA max.
- OSSD Rating 24 V dc at 0.5 A each
- Housing Material Aluminum; Zinc; Acrylic
- Fault Output Yes
- Auxiliary Output Yes
- Vibration 10-55 Hz at 0.35 mm
- System Type Emitter/Receiver Pair
- Short Protection Yes
- Electrical Safety Class III
- Shock 10g at 16ms (6000 cycles)
- Scan Code Selectable
- Response Time 12.5
- Reduced Resolution Yes
- SIL Rating SIL3; CL3
- Resolution (mm) 25
- Recovery Time 25-152 / 81-495
- Operating Voltage 24 V dc +/- 15%
- Operating Temperature 0 to +55 deg. C; RH 95%
- PL Rating Ple
- Housing Finish Yellow Polyester
- Operating Distance (m) 0.1 - 7
- IP Rating IP65
- Number of Pins (Receiver/Emitter) 8
- Fixed Blanking Yes
- Overall Length (mm) 690
- External Monitoring Device 1 or 2 Channel
- Dimensions WxD (mm) 28 x 26
- Defined Area Height (mm) 690
- Primary Housing Material Aluminum
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Safety Level Type 4
- Connector Type M12 Pigtail (Yellow)
- low-profile Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPCP25-690P88 on Powermatic Associates is $2,576.00. Order now.
About the product
Banner Engineering SLPCP25-690P88 is a safety light curtain from the LP Low-Profile series, designed for hand detection with a resolution of 25mm. This cascadable unit features an emitter and receiver pair housed in aluminum with acrylic lens and zinc end caps, ensuring durability. It comes pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector for easy installation. The protective height of the device is 690mm, and it operates on a 24Vdc supply voltage. Suitable for use in ambient air temperatures ranging from 0 to +55°C, it offers a degree of protection rated at IP65. The SLPCP25-690P88 has a net width of 28mm, a height of 689mm, and a depth of 26mm. It features a 25mm beam spacing/pitch and can detect objects within a sensing distance of 10cm to 7m using infrared light with a wavelength of 850nm. The device includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for EDM, and one digital input (10Vdc-30Vdc) for reset functions. Its response time is 12.5ms.
