Part#:SLPCR14-830

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

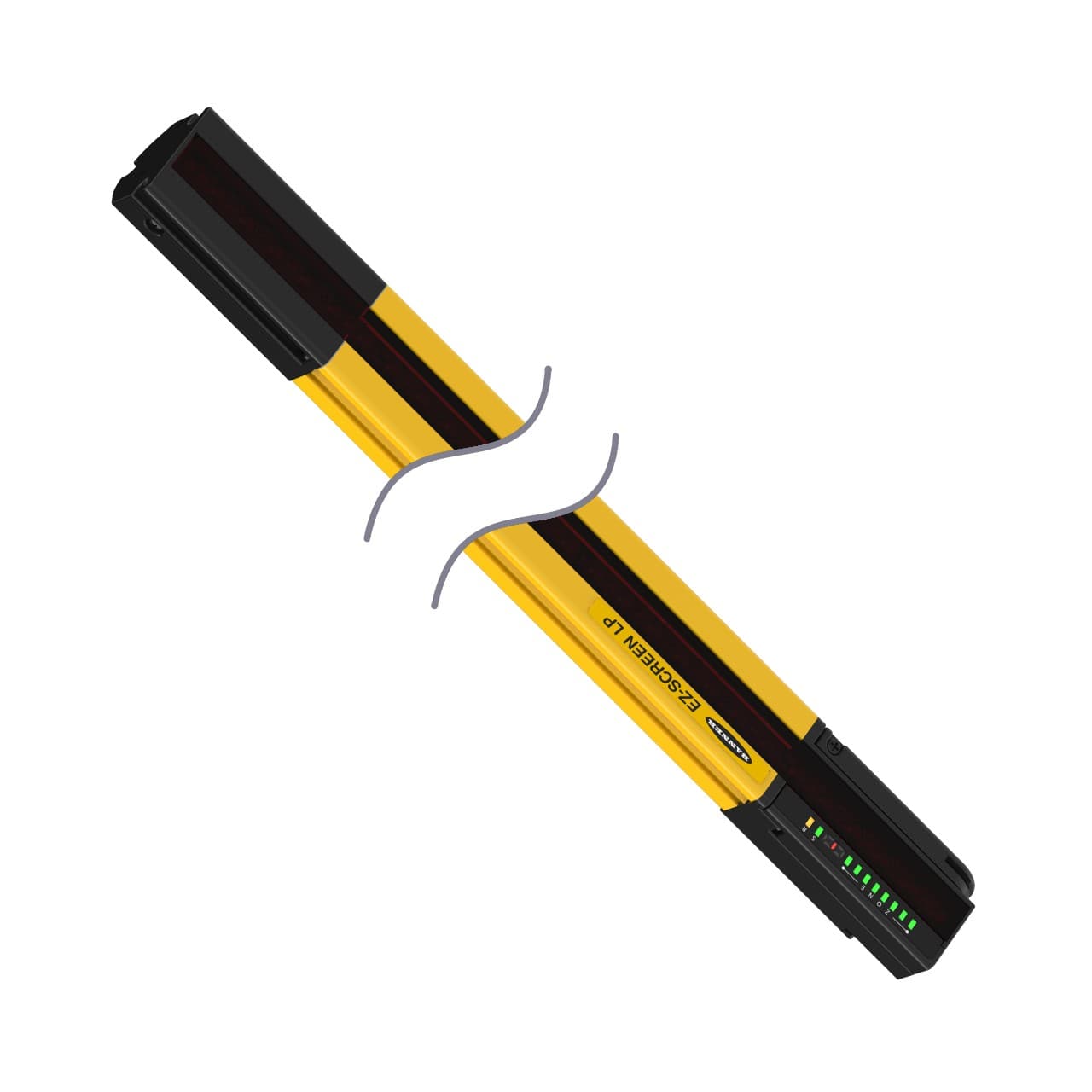

SLPCR14-830 EZ-SCREEN Low Profile Cascade Receiver, Resolution: 14 mm; Response (Tr): 22.5 ms; Beams: 83, Range: 0.1 to 7 m (4in. to 23ft.); Height: 830 mm (32.7in.), Connection: integral RD

Product Details

  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Supply Current
    150 mA max.
  • Vibration
    10-55 Hz at 0.35 mm
  • Trip/Latch Output
    Selectable
  • Feature: End-to-End Sensing
    Yes
  • Feature: Cascade
    Yes
  • Test Input
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • OSSD Rating
    24 V dc at 0.5 A each
  • Fault Output
    Yes
  • Auxiliary Output
    Yes
  • System Type
    Receiver
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • SIL Rating
    SIL3; CL3
  • Scan Code
    Selectable
  • Response Time
    22.5
  • Electrical Safety Class
    III
  • Reduced Resolution
    Yes
  • Operating Distance (m)
    0.1 - 7
  • Resolution (mm)
    14
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 15%
  • IP Rating
    IP65
  • PL Rating
    Ple
  • Recovery Time
    33-220 / 109-800
  • Housing Finish
    Yellow Polyester
  • Fixed Blanking
    Yes
  • Defined Area Height (mm)
    830
  • Connector Type
    Removable Disconnect
  • Primary Housing Material
    Aluminum
  • Overall Length (mm)
    830
  • External Monitoring Device
    1 or 2 Channel
  • Dimensions WxD (mm)
    28 x 26
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • low-profile
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
