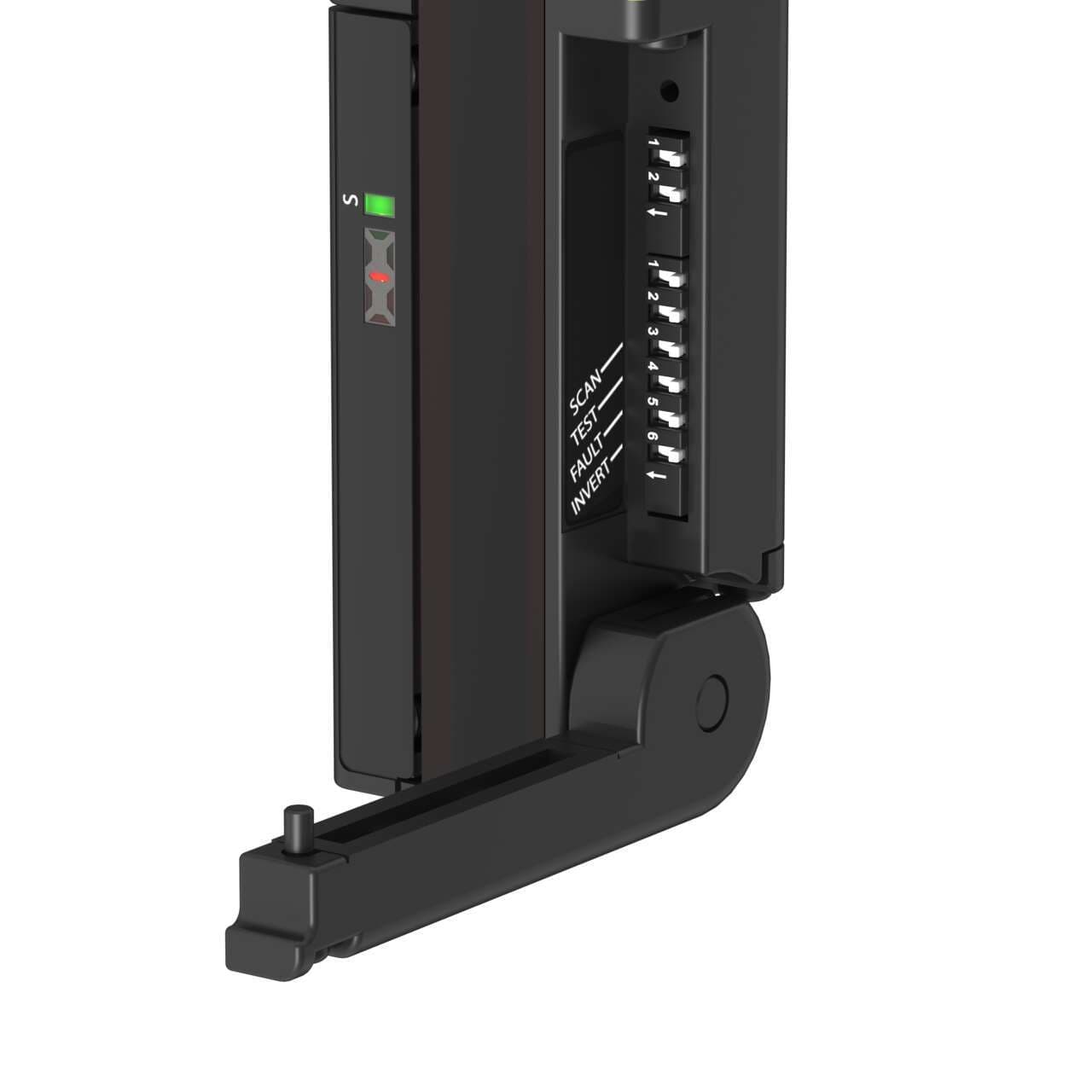

SLPCP25-1250P88 Banner Safety Light Curtains
Part#:SLPCP25-1250P88
Alt. Part#:83765
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPCP25-1250P88 EZ-SCREEN Low Profile Cascade Pair; Resolution: 25 mm; Response (Tr): 18.5 ms; Beams: 63; Range: 0.1-7 m (4 in - 23 ft); Height: 1250 mm (49.2 in); 300 mm (1 ft) 8-pin M12 Pigtail QD
Product Details
- Weight 3719.4544 g
- Country Of Origin US
- Feature: ESD Safe No
- Feature: Integral Muting No
- Feature: Cascade Yes
- Feature: End-to-End Sensing Yes
- Test Input Yes
- Trip/Latch Output Selectable
- OSSD Rating 24 V dc at 0.5 A each
- Housing Material Aluminum; Zinc; Acrylic
- Fault Output Yes
- Auxiliary Output Yes
- Supply Current 210 mA max.
- Electrical Safety Class III
- Vibration 10-55 Hz at 0.35 mm
- System Type Emitter/Receiver Pair
- Short Protection Yes
- Shock 10g at 16ms (6000 cycles)
- Scan Code Selectable
- PL Rating Ple
- Operating Temperature 0 to +55 deg. C; RH 95%
- Operating Voltage 24 V dc +/- 15%
- Operating Distance (m) 0.1 - 7
- SIL Rating SIL3; CL3
- Response Time 18.5
- Reduced Resolution Yes
- Resolution (mm) 25
- Recovery Time 25-152 / 81-495
- External Monitoring Device 1 or 2 Channel
- Number of Pins (Receiver/Emitter) 8
- IP Rating IP65
- Housing Finish Yellow Polyester
- Fixed Blanking Yes
- Defined Area Height (mm) 1250
- Dimensions WxD (mm) 28 x 26
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Overall Length (mm) 1250
- Connector Type M12 Pigtail (Yellow)
- low-profile Yes
- Primary Housing Material Aluminum
- Safety Level Type 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPCP25-1250P88 on Powermatic Associates is $4,018.00. Order now.
About the product
Banner Engineering SLPCP25-1250P88 is a safety light curtain from the LP Low-Profile series, designed for hand detection with a resolution of 25mm and a protective height of 1250mm. This cascadable unit features an aluminium housing, acrylic lens, and zinc end caps, colored yellow. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The device operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65 and has dimensions of 28mm in width, 1248mm in height, and 26mm in depth. The SLPCP25-1250P88 provides a sensing distance from 10cm to 7m, utilizing infrared light with a wavelength of 850 nm. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for external device monitoring (EDM), and one digital input (10Vdc-30Vdc) for reset functions. The response time of the device is 18.5ms.
