SLLE40-350-S Banner Safety Light Curtains

SLLE40-350-S on Powermatic Associates
Banner

Part#:SLLE40-350-S

Alt. Part#:808931

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

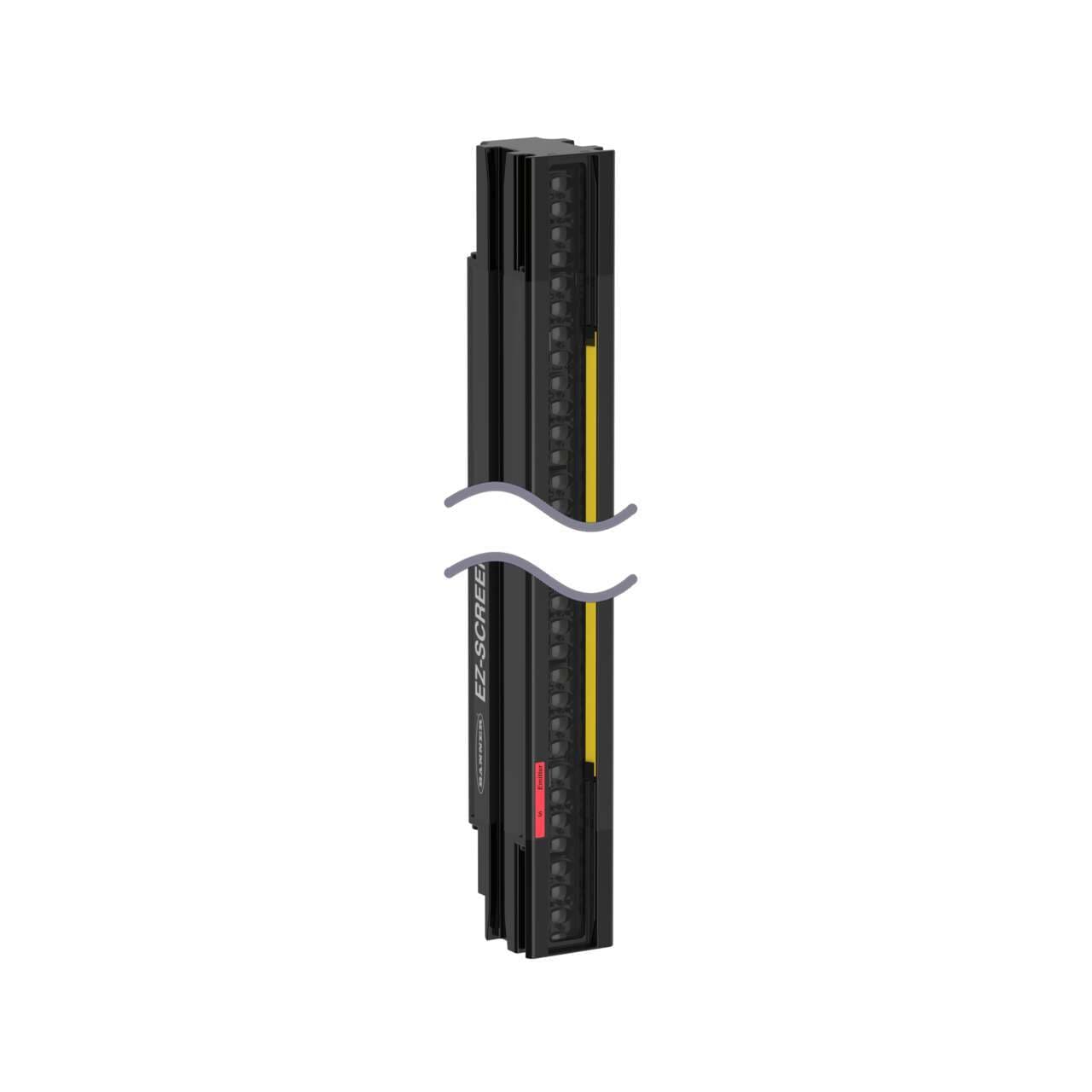

EZ-SCREEN LS, Emitter; Resolution: 40 mm; Range: 12 m (40 ft); Defined Area: 350 mm (13.8 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately

Product Details

  • Weight
    997.9024 g
  • Country Of Origin
    MX
  • Supply Current
    25 mA Typical
  • OSSD Rating
    N/A
  • Trip/Latch Output
    N/A
  • Scan Code
    Selectable
  • Vibration
    10-55 Hz at 0.35 mm
  • Recovery Time
    32 / 110
  • Operating Distance (m)
    0.1 - 12
  • Operating Voltage
    24 V dc +/- 15%
  • SIL Rating
    SIL3; CL3
  • Feature: End-to-End Sensing
    Yes
  • Feature: ESD Safe
    No
  • Feature: Integral Muting
    No
  • Test Input
    No
  • Fault Output
    Yes
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Auxiliary Output
    No
  • System Type
    Emitter
  • Electrical Safety Class
    III
  • Shock
    10g at 16ms (6000 cycles)
  • Short Protection
    Yes
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • Reduced Resolution
    No
  • Resolution (mm)
    40
  • PL Rating
    Ple
  • IP Rating
    IP65; IP67
  • Housing Finish
    Yellow Polyester
  • Overall Length (mm)
    355
  • Fixed Blanking
    No
  • Defined Area Height (mm)
    350
  • Dimensions WxD (mm)
    36 x 45
  • External Monitoring Device
    No
  • Connector Type
    Removable Disconnect
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Primary Housing Material
    Aluminum
  • Safety Level
    Type 4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLLE40-350-S on Powermatic Associates is $471.00. Order now.

About the product

Banner Engineering SLLE40-350-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed specifically to function as an emitter alone. It features an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. This model comes with an Integral Removable Disconnect (RD) connection type and is encased in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLE40-350-S offers a protective height of 350mm and is designed with a degree of protection rated at IP65 and IP67, making it suitable for various industrial environments. It has a net width of 36mm, a net height of 355mm, and a net depth of 45mm. The light curtain features a 40mm beam spacing/pitch and is capable of detecting objects with a resolution of 40mm, suitable for arm detection. It includes 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter fault indication. The sensing distance of this model ranges from 10cm to 12m, and it has a response time of 8.2ms / 0.0082 s.
