SLLE14-1680-S Banner Safety Light Curtains

SLLE14-1680-S on Powermatic Associates
Banner

Part#:SLLE14-1680-S

Alt. Part#:809155

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

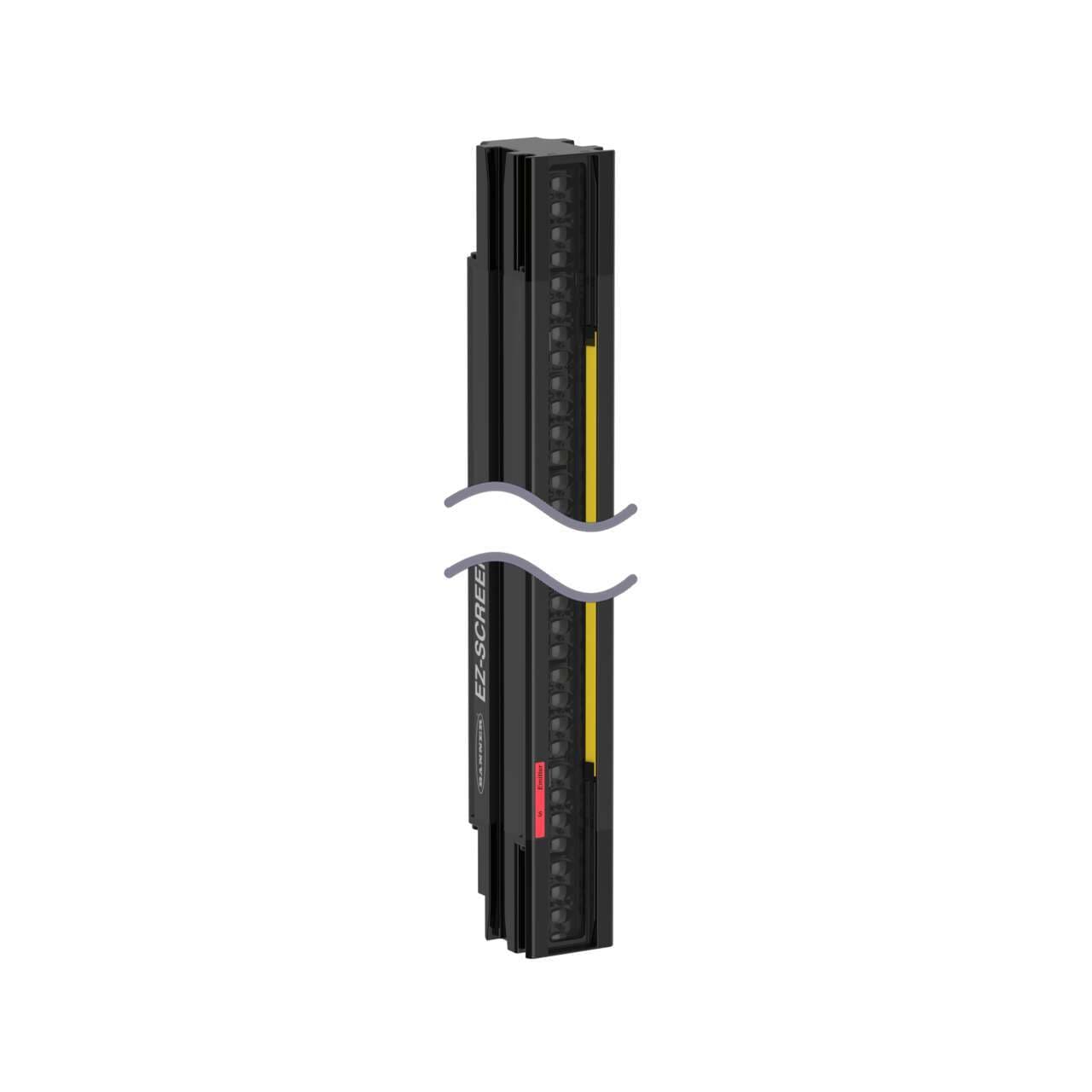

EZ-SCREEN LS, Emitter; Resolution: 14 mm; Range: 12 m (40 ft); Defined Area: 1680 mm (66.1 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately

Product Details

  • Weight
    3646.87968 g
  • Country Of Origin
    MX
  • Feature: End-to-End Sensing
    Yes
  • OSSD Rating
    N/A
  • Test Input
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Fault Output
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter
  • Auxiliary Output
    No
  • Scan Code
    Selectable
  • Electrical Safety Class
    III
  • Shock
    10g at 16ms (6000 cycles)
  • SIL Rating
    SIL3; CL3
  • Short Protection
    Yes
  • Recovery Time
    198 / 672
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • PL Rating
    Ple
  • Reduced Resolution
    No
  • Resolution (mm)
    14
  • Housing Finish
    Yellow Polyester
  • Feature: ESD Safe
    No
  • Feature: Integral Muting
    No
  • Supply Current
    27 mA Typical
  • Trip/Latch Output
    N/A
  • Fixed Blanking
    No
  • IP Rating
    IP65; IP67
  • External Monitoring Device
    No
  • Overall Length (mm)
    1682
  • Connector Type
    Removable Disconnect
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 12
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Primary Housing Material
    Aluminum
  • Dimensions WxD (mm)
    36 x 45
  • Defined Area Height (mm)
    1680
  • Safety Level
    Type 4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLLE14-1680-S on Powermatic Associates is $2,127.00. Order now.

About the product

Banner Engineering SLLE14-1680-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed with an aluminium housing, acrylic lens, and zinc end cap. This part functions as a safety light curtain emitter alone, featuring an integral removable disconnect (RD) for connection. It has a protective height of 1680mm and comes in a yellow housing. The SLLE14-1680-S operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. It is rated with a degree of protection of IP65 and IP67, ensuring durability in various environmental conditions. The net dimensions are 36mm in width, 1682mm in height, and 45mm in depth. It offers a 14mm beam spacing/pitch for detection, equipped with 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter fault indication. The sensing distance ranges from 10cm to 12m, with a response time of 45.5ms / 0.0455 s, and a resolution of 14mm for finger detection.
