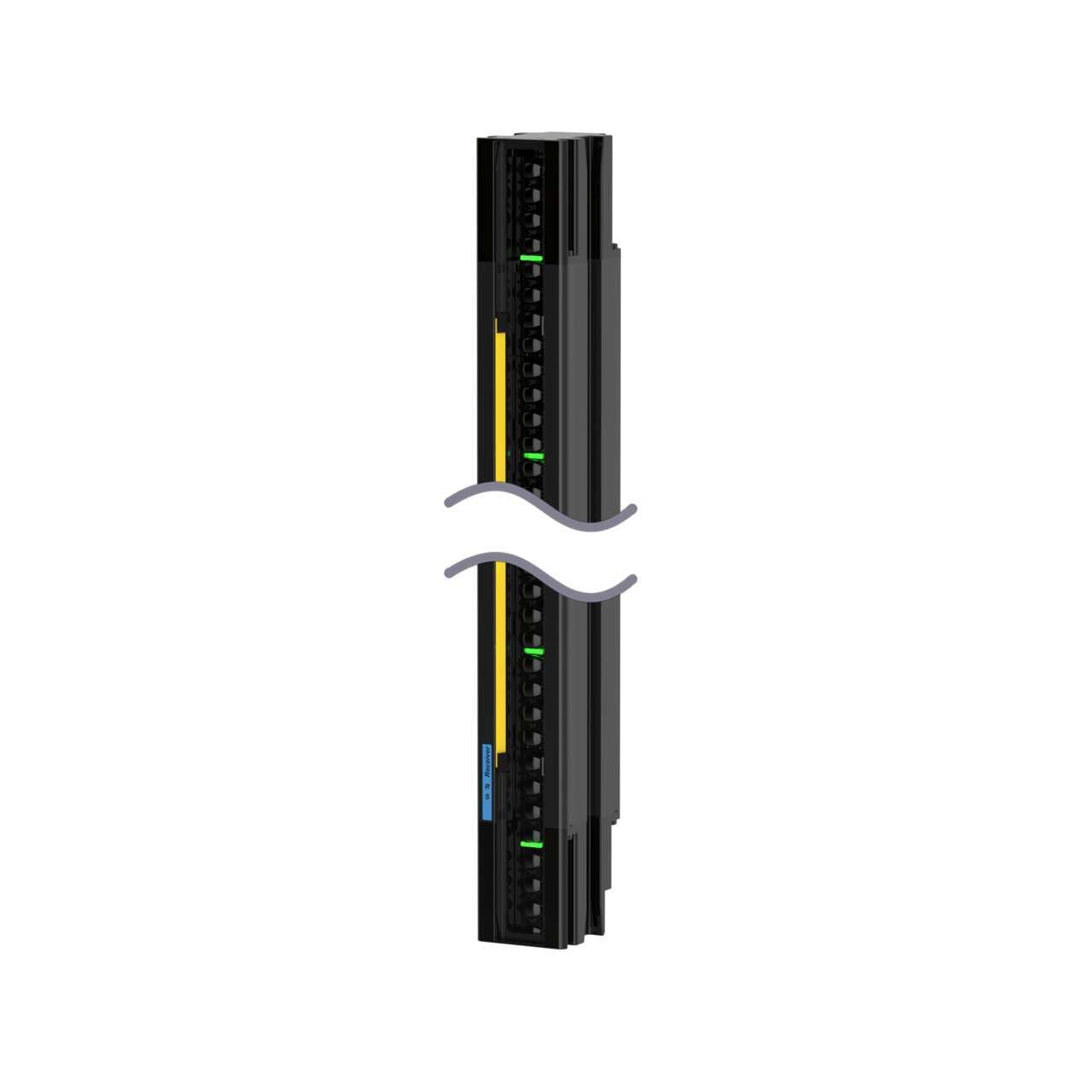

SLLCR14-1540-S Banner Safety Light Curtains

Banner SLLCR14-1540-S EZ-SCREEN LS Cascade, Receiver; Resolution: 14 mm; Range: 12 m (40 ft); Defined Area: 1540 mm (60.6 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately
Banner

Part#:SLLCR14-1540-S

Manufacturer:Banner

Alt. Part#:809126

Product Lifecycle:Active

Get a quick Quote!

EZ-SCREEN LS Cascade, Receiver; Resolution: 14 mm; Range: 12 m (40 ft); Defined Area: 1540 mm (60.6 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLLCR14-1540-S Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    3469.9788 g
  • Country Of Origin
    MX
  • Feature: End-to-End Sensing
    Yes
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Feature: Cascade
    Yes
  • Trip/Latch Output
    Trip
  • OSSD Rating
    24 V dc at 0.5 A each
  • Supply Current
    136 mA Typical
  • Fault Output
    Yes
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Vibration
    10-55 Hz at 0.35 mm
  • Auxiliary Output
    No
  • Shock
    10g at 16ms (6000 cycles)
  • System Type
    Receiver
  • Short Protection
    Yes
  • Electrical Safety Class
    III
  • Reduced Resolution
    No
  • Resolution (mm)
    14
  • SIL Rating
    SIL3; CL3
  • Scan Code
    Selectable
  • PL Rating
    Ple
  • Recovery Time
    183 / 621
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • Operating Distance (m)
    0.1 - 12
  • IP Rating
    IP65; IP67
  • Housing Finish
    Yellow Polyester
  • Operating Voltage
    24 V dc +/- 15%
  • Dimensions WxD (mm)
    36 x 45
  • Fixed Blanking
    Yes
  • Overall Length (mm)
    1542
  • Defined Area Height (mm)
    1540
  • Connector Type
    Removable Disconnect
  • External Monitoring Device
    1 Channel
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLLCR14-1540-S Description

Banner Engineering SLLCR14-1540-S is a safety light curtain from the LS-S series type 4 safety light curtains, designed for finger detection with a resolution of 14mm. This cascadable unit features an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. It comes with an Integral Removable Disconnect (RD) for easy connection and has a protective height of 1540mm. The housing is colored yellow for visibility. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. This model offers a degree of protection rated at IP65 and IP67, making it suitable for various industrial environments. The net dimensions are 36mm in width, 1542mm in height, and 45mm in depth. It features a 14mm beam spacing/pitch and provides a sensing distance from 10cm to 12m. The light curtain emits infrared (IR) light with a wavelength of 850 nm and has a response time of 42.1ms. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status output.

Related documents SLLCR14-1540-S Specs

SLLCR14-1540-S 189856.pdf
