SLLCR23-1330P8

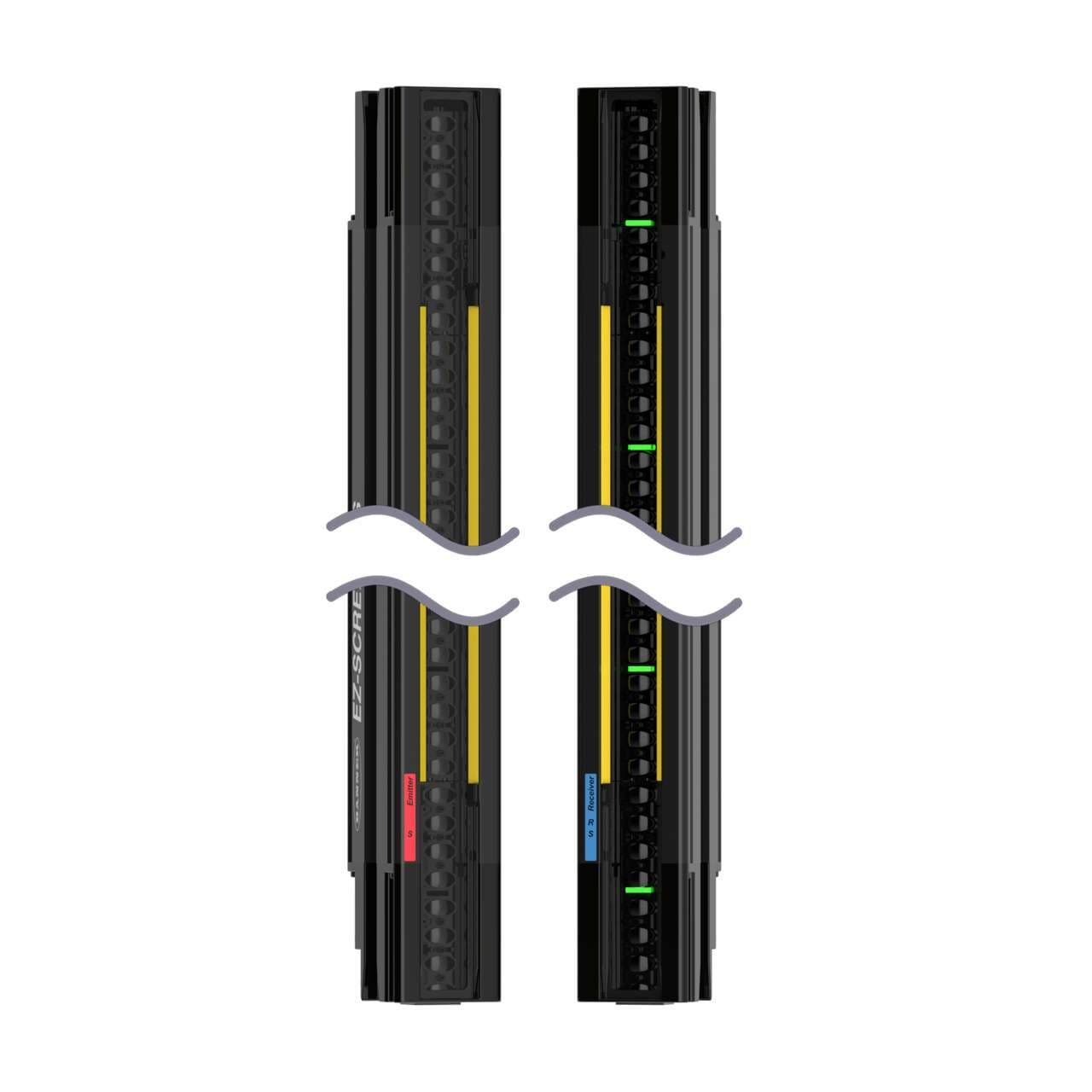

Banner Engineering SLLCR23-1330P8 is a safety light curtain from the LS series type 4 safety light curtains, designed to be cascadable. This part functions as a safety light curtain receiver alone, constructed with an aluminium housing, acrylic lens, and zinc end caps. It features a pre-wired connection with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector. The protective height is 1330mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The degree of protection offered is IP65 and IP67, with dimensions including a net width of 36mm, a net height of 1333mm, and a net depth of 45mm. The light curtain has a 23mm beam spacing/pitch and offers two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status output. The sensing distance ranges from 10cm to 12m, with an infrared light color at a wavelength of 850 nm. Additionally, it includes one digital input (10Vdc-30Vdc; 30mA) for EDM input and one digital input (10Vdc-30Vdc; 30mA) for scan code input, with a response time of 20.9ms / 0.0209 s. The resolution is set at 23mm for hand detection.
