Part#:SLC4R14-320P4

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

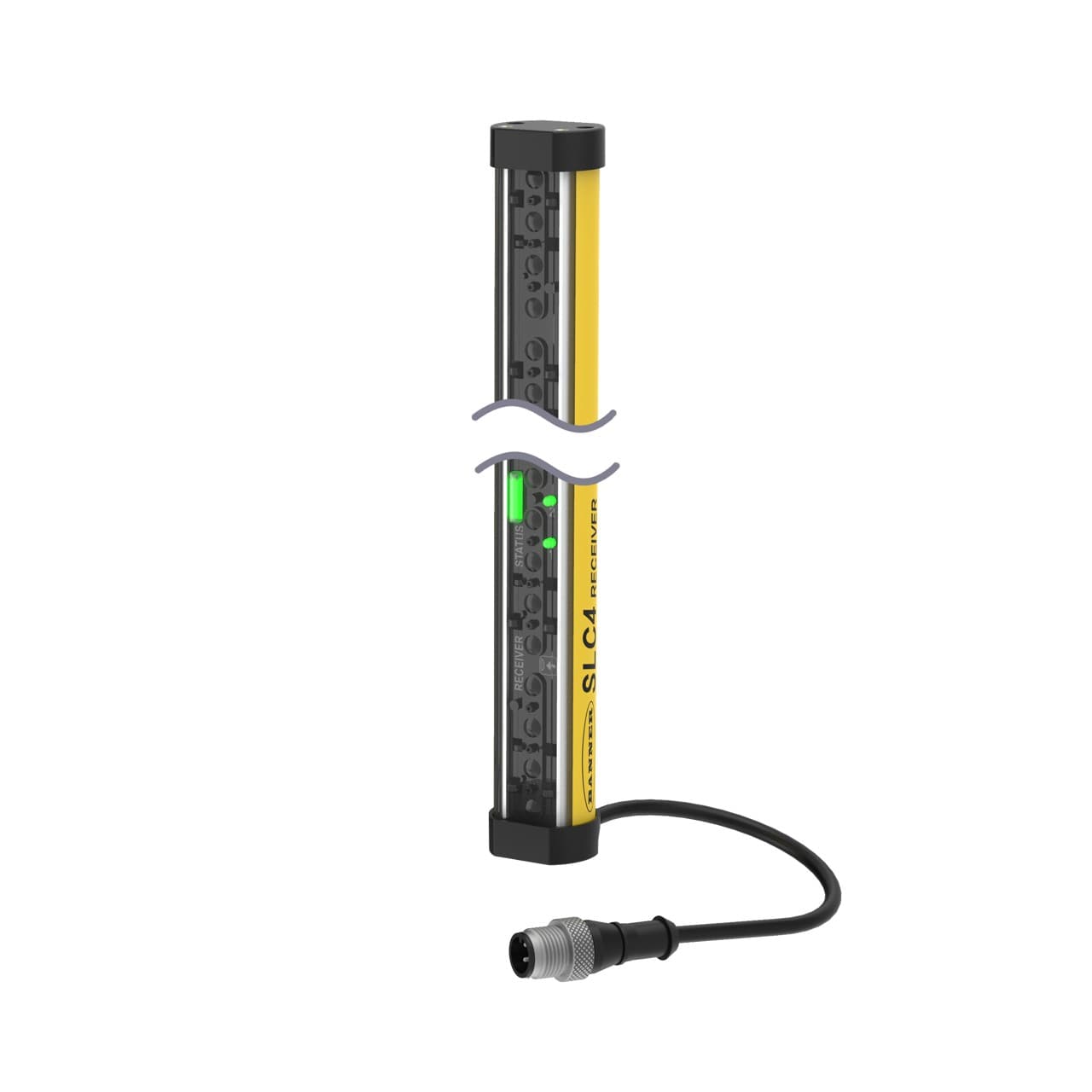

Banner Engineering SLC4R14-320P4 is a safety light curtain designed specifically as a receiver unit. It features a polycarbonate (PC) housing and end cap, ensuring durability in various industrial environments. This unit is pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector for straightforward installation. It offers a protective height of 320mm and comes in a yellow housing, making it easily identifiable. The SLC4R14-320P4 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. It is rated with an IP65 degree of protection, indicating a high level of resistance to dust and water ingress. The dimensions of this safety light curtain are 27mm in width, 333mm in height, and 23mm in depth, with a 14mm beam spacing/pitch that allows for finger detection resolution. It also features 2 x digital outputs (24Vdc; 300mA; sourcing; redundant OSSD solid-state outputs) and is capable of sensing distances ranging from 10cm to 2m.

Product Details

  • Feature: ESD Safe
    No
  • External Monitoring Device
    No
  • Feature: Integral Muting
    No
  • Feature: End-to-End Sensing
    Yes
  • Trip/Latch Output
    Trip
  • Test Input
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • Shock
    10g at 16ms (6000 cycles)
  • Short Protection
    Yes
  • Fault Output
    No
  • Auxiliary Output
    No
  • Scan Code
    None
  • Reduced Resolution
    No
  • Operating Voltage
    24 V dc +/- 15%
  • Recovery Time
    49 / 295
  • Supply Current
    65
  • OSSD Rating
    24 V dc; 0.3 A max.
  • System Type
    Receiver
  • Housing Material
    Aluminum, Polycarbonate
  • PL Rating
    Ple
  • Resolution (mm)
    14
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • IP Rating
    IP65
  • Primary Housing Material
    Polycarbonate
  • Overall Length (mm)
    333
  • Connector Type
    M12 Pigtail (Black)
  • Operating Distance (m)
    0.1 - 2
  • Number of Pins (Receiver/Emitter)
    4
  • Housing Finish
    Clear Polycarbonate/Yellow Polyester
  • Fixed Blanking
    No
  • Defined Area Height (mm)
    320
  • Safety Level
    Type 4
  • Dimensions WxD (mm)
    26.7 x 22.1
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLC4R14-320P4 Related Documents

SLC4 320mm-1630955303570.stpSLC4 320mm-1630955303575.pdfSLC4 Safety Light Curtain -- Multilingual Datasheet-1630955303573.pdf
