SLC4E14-320P4 Banner Electronic Components

SLC4E14-320P4 on Powermatic Associates
Banner

Part#:SLC4E14-320P4

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

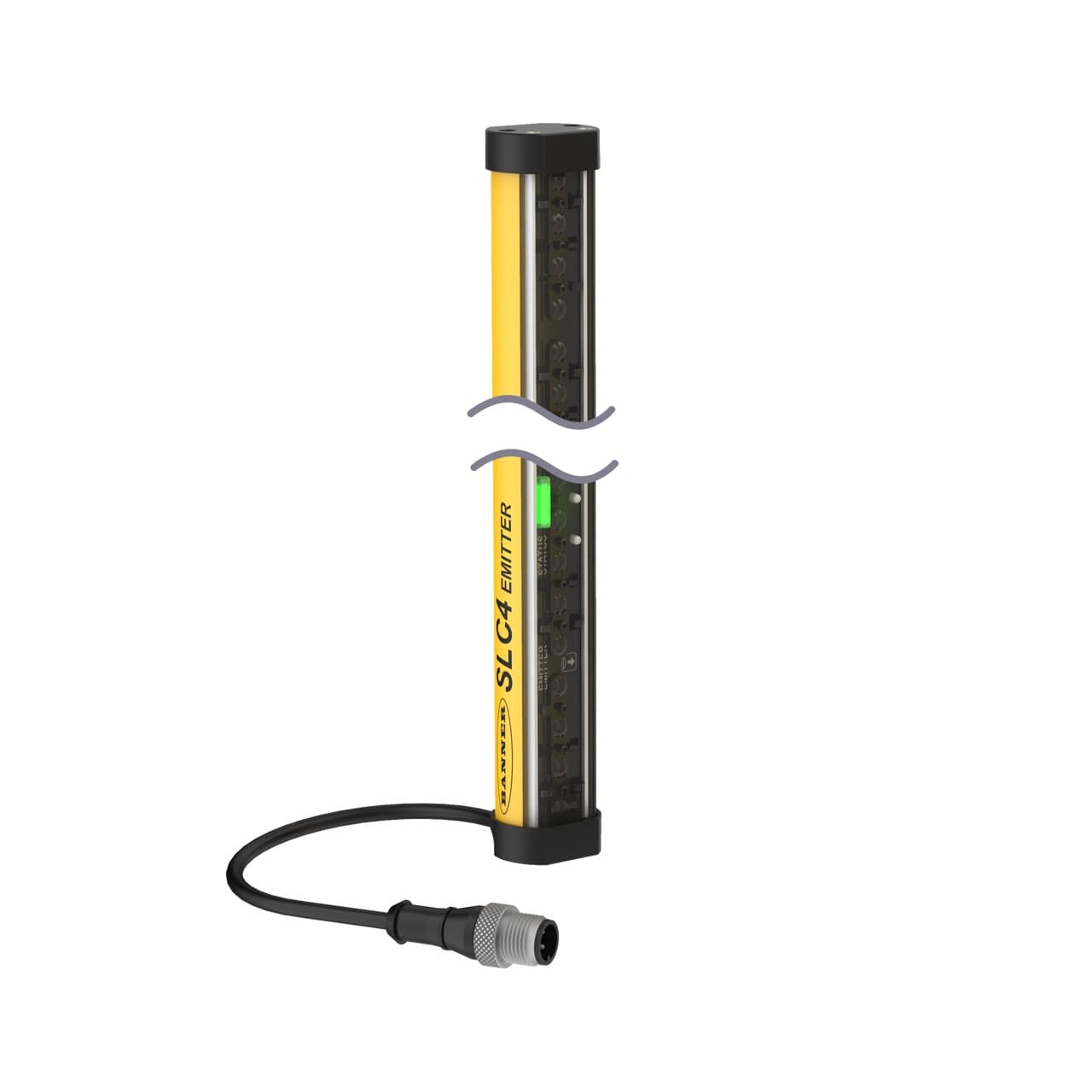

Banner Engineering SLC4E14-320P4 is a safety light curtain designed for finger detection with a resolution of 14mm, featuring a protective height of 320mm and 14mm beam spacing/pitch. It is constructed with a polycarbonate (PC) housing and end cap, and comes pre-wired with a 300mm pigtail terminated with a 4-pin Euro-style M12 connector. This part operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. It offers a degree of protection rated at IP65 and has dimensions of 27mm in width, 333mm in height, and 23mm in depth. The SLC4E14-320P4 is equipped with 2 x digital outputs (24Vdc; 300mA; sourcing; redundant OSSD solid-state outputs) and has a sensing distance ranging from 10cm to 2m. The light emitted is in the infrared (IR) spectrum with a wavelength of 860 nm, and the housing is colored yellow.

Product Details

  • Housing Material
    Aluminum, Polycarbonate
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Trip/Latch Output
    Trip
  • Feature: End-to-End Sensing
    Yes
  • OSSD Rating
    24 V dc; 0.3 A max.
  • Supply Current
    35
  • Fault Output
    No
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter
  • Shock
    10g at 16ms (6000 cycles)
  • Short Protection
    Yes
  • SIL Rating
    SIL3; CL3
  • Electrical Safety Class
    III
  • Scan Code
    None
  • Reduced Resolution
    No
  • Number of Pins (Receiver/Emitter)
    4
  • Recovery Time
    N/A
  • Resolution (mm)
    14
  • PL Rating
    Ple
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 2
  • IP Rating
    IP65
  • Housing Finish
    Clear Polycarbonate/Yellow Polyester
  • Overall Length (mm)
    333
  • Fixed Blanking
    No
  • Defined Area Height (mm)
    320
  • External Monitoring Device
    No
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Primary Housing Material
    Polycarbonate
  • Dimensions WxD (mm)
    26.7 x 22.1
  • Connector Type
    M12 Pigtail (Black)
  • Safety Level
    Type 4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLC4E14-320P4 Related Documents

SLC4 320mm-1630955791441.stpSLC4 320mm-1630955791448.pdfSLC4 Safety Light Curtain -- Multilingual Datasheet-1630955791453.pdf
