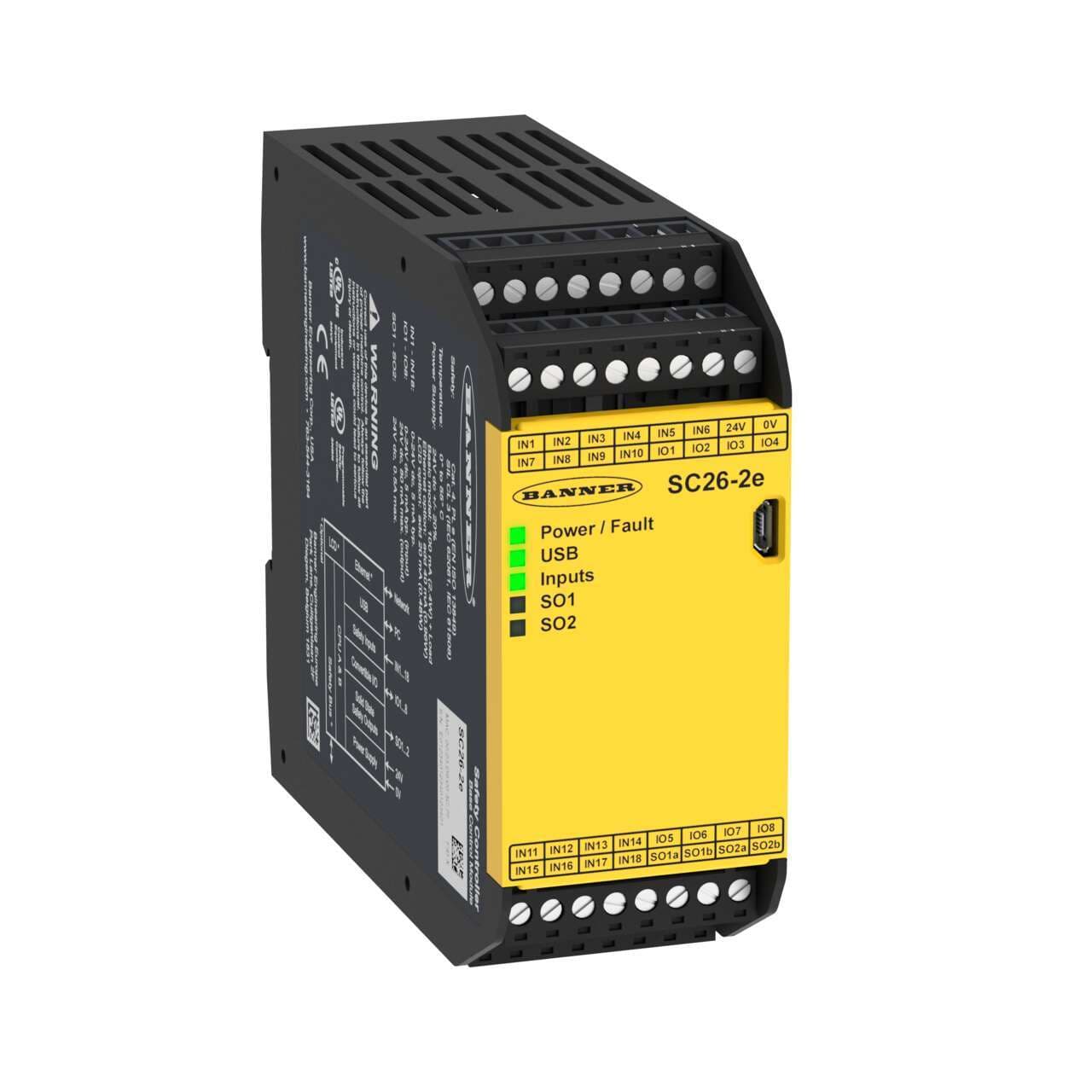

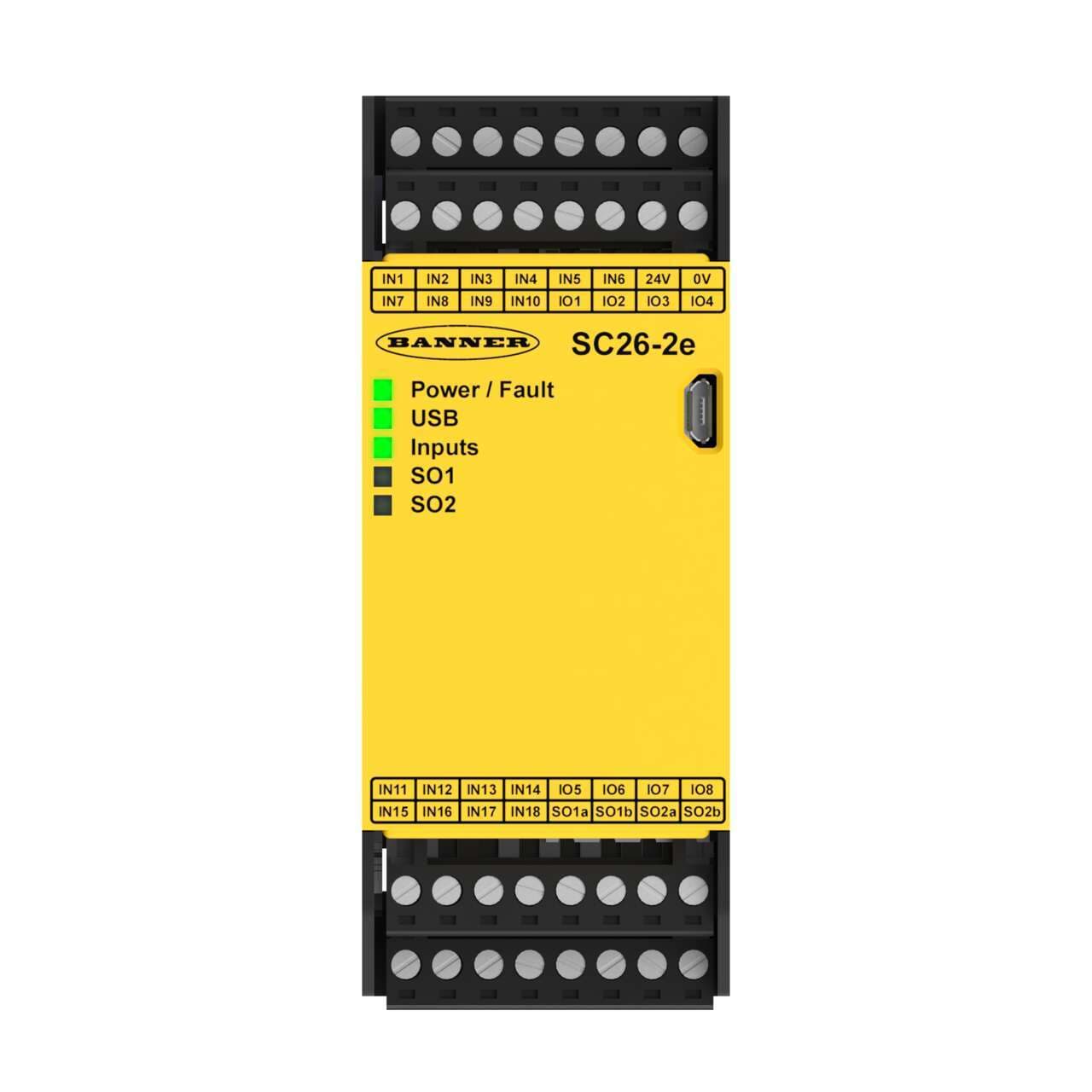

SC26-2E Banner Safety Relays
Part#:SC26-2E
Alt. Part#:85067
Manufacturer:Banner
Category:Safety Relays
Product Lifecycle:Active
Product description
SC26-2E Safety Controller: Non Expandable; 26 Input; 2 pairs of PNP Safety Outputs (0.5 A each); No Display; Ethernet; USB; 8 Convertible Inputs; Removable Screw Terminals; 24 V dc; 140 mA
Product Details
- Weight 263.08336 g
- Country Of Origin US
- PCCC Yes
- Recovery Time 250 (typical), 400 (max)
- PROFINET Yes
- Modbus/TCP Yes
- Two-Hand Controls Yes
- Safety Category Rating 4
- In-Series Diagnostics No
- Light Curtains/Scanner without EDM Input Yes
- Light Curtains/Scanner with EDM Input Yes
- Common Ethernet Protocol No
- Gate Switch (OSSD) Input Yes
- EtherNet/IP Yes
- Gate Switch (NC/NO) Input Yes
- Gate Switch (NC/NC) Input Yes
- Muting Yes
- Motor Speed No
- E-Stops/Rope Pulls Yes
- SIL Rating 3
- PL Rating e
- Safety Mat Yes
- Safety Input - Single Channel 5-50 mA @ 24 V dc
- Input Resistance 150 Ω max. per lead
- THC Rating IIIC
- SISTEMA PFHd = 1.05 x 10-9
- IP Rating IP20
- Removable Terminals Yes
- Vibration 9-150 Hz at 1g occasional/0.5g continuous
- Terminal Type Screw
- Safe Output Rating OSSD 0.50 A max. @ 24 V dc
- Non Safe Output Rating 80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
- Supply Voltage 24 V dc +/- 20%
- Safety Input - Reset 5-50 mA @ 24 V dc
- Power Consumption 0.14 A (controller only)
- Response Time (ms) See Software Configuration Summary
- Output Configuration 2 OSSD Pairs
- Splittable Safe Output Yes
- Non Safe Output Configuration Up to 11 PNP
- Independently Controlled Safe Outputs 4
- Safety Input - Dual Channel (Dry Contact) 5-50 mA @ 24 V dc
- Number of Convertible Inputs 8
- Safety Input - Dual Channel (Solid-State) 50 mA @ 15 - 30 V dc
- Input Configuration Configurable
- Number of Safe Inputs 26
- Safety Module Type Base Controller
- Relative Humidity 90% @ 50° C
- Input Operation Simultaneous or Concurrent
- Max Operating Temperature ( °C) 55
- Dimension (H x W x D in mm) 110 x 45 x 129
- Expandable No
- LCD Display No
- Power DC
- Device Type Safety Controller
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SC26-2E on Powermatic Associates is $1,010.00. Order now.
About the product
Banner Engineering SC26-2E is a safety controller designed with a PCCC architecture. It features screw-clamp connections for secure installation and operates on a 24Vdc supply voltage. Suitable for DIN rail mounting, this controller can function within an ambient air temperature range of 0 to +55°C and has an IP20 degree of protection. With dimensions of 45 mm in width, 110 mm in height, and 129 mm in depth, the SC26-2E supports Ethernet/IP, Modbus TCP, and PROFINET communication protocols. It is equipped with 2 safety outputs (24Vdc; 500mA; 2 x OSSD outputs) and 26 safety inputs (15Vdc-30Vdc; including 8 inputs convertible to non-safety outputs), catering to a variety of safety control needs in automation environments.
