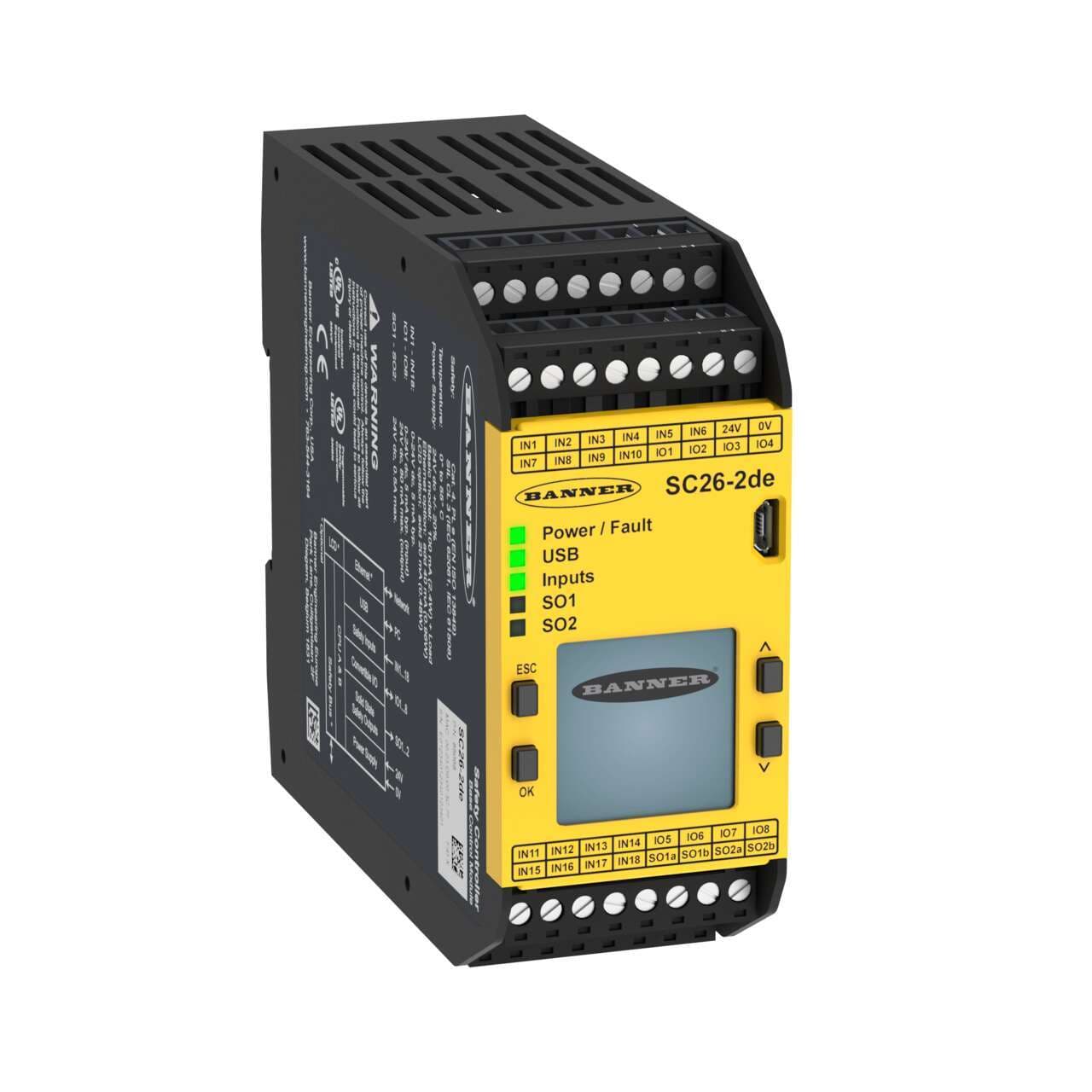

SC26-2DE Banner Safety Relays

Product Details

• Weight
  267.61928 g
• Country Of Origin
  US
• Recovery Time
  250 (typical), 400 (max)
• PROFINET
  Yes
• EtherNet/IP
  Yes
• Modbus/TCP
  Yes
• Motor Speed
  No
• THC Rating
  IIIC
• Safety Category Rating
  4
• Supply Voltage
  24 V dc +/- 20%
• Independently Controlled Safe Outputs
  4
• Light Curtains/Scanner without EDM Input
  Yes
• Gate Switch (OSSD) Input
  Yes
• In-Series Diagnostics
  No
• PCCC
  Yes
• Common Ethernet Protocol
  No
• Light Curtains/Scanner with EDM Input
  Yes
• Gate Switch (NC/NO) Input
  Yes
• Gate Switch (NC/NC) Input
  Yes
• Two-Hand Controls
  Yes
Muting
Yes
E-Stops/Rope Pulls
Yes
Input Resistance
150 Ω max. per lead
Safety Mat
Yes
Safety Input - Single Channel
5-50 mA @ 24 V dc
SISTEMA
PFHd = 1.05 x 10-9
IP Rating
IP20
SIL Rating
3
PL Rating
e
Terminal Type
Screw
Vibration
9-150 Hz at 1g occasional/0.5g continuous
Removable Terminals
Yes
Power Consumption
0.16 A (controller only)
Response Time (ms)
See Software Configuration Summary
Splittable Safe Output
Yes
Safe Output Rating
OSSD 0.50 A max. @ 24 V dc
Non Safe Output Rating
80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
Safety Input - Dual Channel (Dry Contact)
5-50 mA @ 24 V dc
Safety Input - Reset
5-50 mA @ 24 V dc
Safety Input - Dual Channel (Solid-State)
50 mA @ 15 - 30 V dc
Number of Convertible Inputs
8
Input Configuration
Configurable
Output Configuration
2 OSSD Pairs
Non Safe Output Configuration
Up to 11 PNP
Number of Safe Inputs
26
Input Operation
Simultaneous or Concurrent
Max Operating Temperature ( °C)
55
Relative Humidity
90% @ 50° C
Dimension (H x W x D in mm)
110 x 45 x 129
LCD Display
Yes
Expandable
No
Safety Module Type
Base Controller
Device Type
Safety Controller
Power
DC
