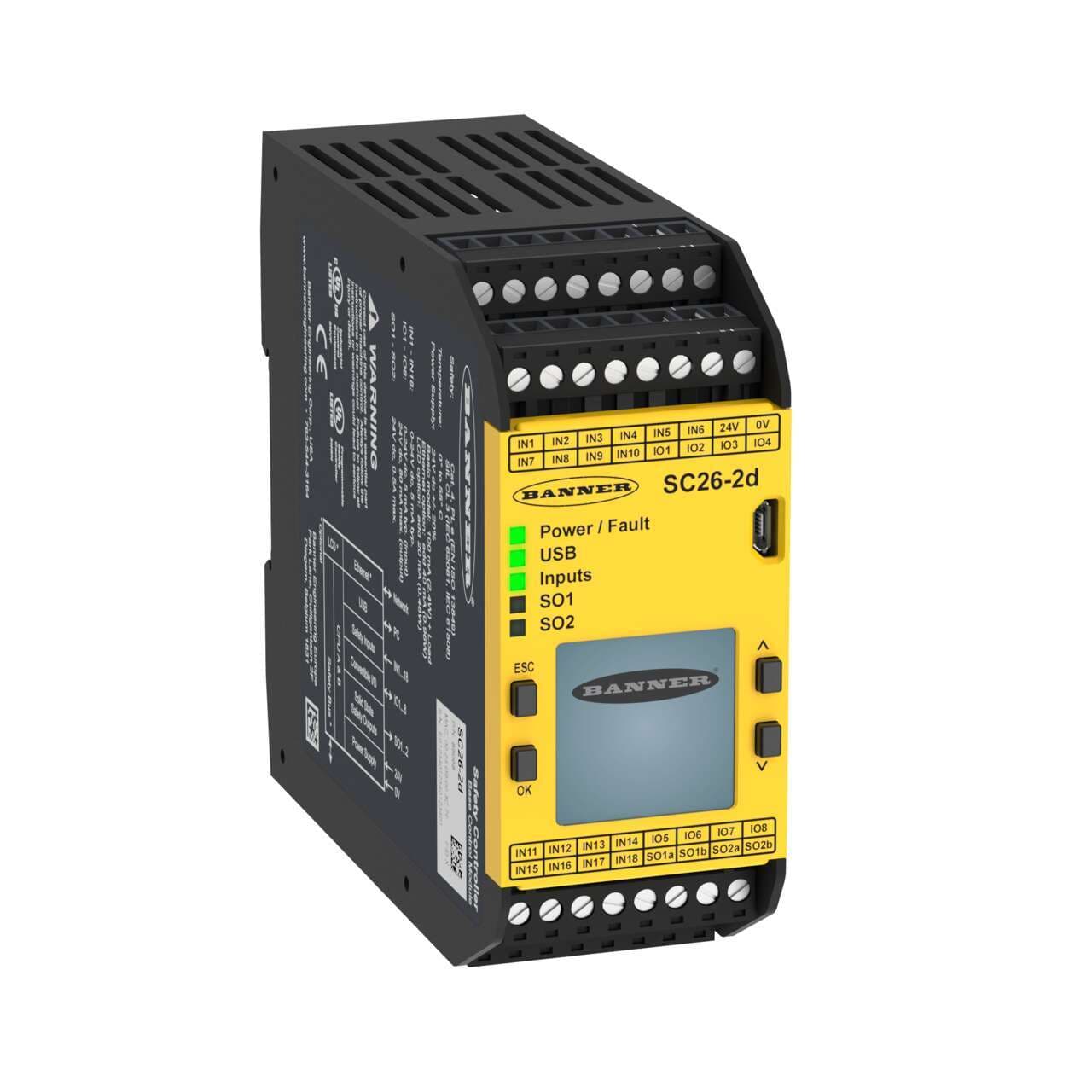

SC26-2D Banner Safety Relays

Banner SC26-2D SC26-2D Safety Controller: Non Expandable; 26 Input; 2 pairs of PNP Safety Outputs (0.5 A each); Display; No Ethernet; USB; 8 Convertible Inputs; Removable Screw Terminals; 24 V dc; 120 mA
Banner

Part#:SC26-2D

Manufacturer:Banner

Alt. Part#:85066

Product Lifecycle:Active

Get a quick Quote!

SC26-2D Safety Controller: Non Expandable; 26 Input; 2 pairs of PNP Safety Outputs (0.5 A each); Display; No Ethernet; USB; 8 Convertible Inputs; Removable Screw Terminals; 24 V dc; 120 mA

About the manufacturer: Banner is one of the manufacturers that offers Safety Relays that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SC26-2D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    263.08336 g
  • Country Of Origin
    US
  • Vibration
    9-150 Hz at 1g occasional/0.5g continuous
  • Splittable Safe Output
    Yes
  • Independently Controlled Safe Outputs
    4
  • PL Rating
    e
  • IP Rating
    IP20
  • SIL Rating
    3
  • Power Consumption
    0.12 A (controller only)
  • Removable Terminals
    Yes
  • Terminal Type
    Screw
  • Response Time (ms)
    See Software Configuration Summary
  • Supply Voltage
    24 V dc +/- 20%
  • Safe Output Rating
    OSSD 0.50 A max. @ 24 V dc
  • Non Safe Output Rating
    80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
  • Output Configuration
    2 OSSD Pairs
  • Non Safe Output Configuration
    Up to 11 PNP
  • Safety Input - Reset
    5-50 mA @ 24 V dc
  • Safety Input - Dual Channel (Solid-State)
    50 mA @ 15 - 30 V dc
  • Dimension (H x W x D in mm)
    110 x 45 x 129
  • Safety Input - Dual Channel (Dry Contact)
    5-50 mA @ 24 V dc
  • Power
    DC
  • LCD Display
    Yes
  • Device Type
    Safety Controller
  • Number of Convertible Inputs
    8
  • Input Configuration
    Configurable
  • Number of Safe Inputs
    26
  • Input Operation
    Simultaneous or Concurrent
  • Max Operating Temperature ( °C)
    55
  • Relative Humidity
    90% @ 50° C
  • Recovery Time
    250 (typical), 400 (max)
  • PROFINET
    No
  • In-Series Diagnostics
    No
  • PCCC
    No
  • Modbus/TCP
    No
  • Common Ethernet Protocol
    No
  • EtherNet/IP
    No
  • Light Curtains/Scanner without EDM Input
    Yes
  • Light Curtains/Scanner with EDM Input
    Yes
  • Gate Switch (OSSD) Input
    Yes
  • Gate Switch (NC/NC) Input
    Yes
  • Gate Switch (NC/NO) Input
    Yes
  • Muting
    Yes
  • Motor Speed
    No
  • Safety Mat
    Yes
  • E-Stops/Rope Pulls
    Yes
  • Two-Hand Controls
    Yes
  • Input Resistance
    150 Ω max. per lead
  • Safety Input - Single Channel
    5-50 mA @ 24 V dc
  • Safety Category Rating
    4
  • THC Rating
    IIIC
  • SISTEMA
    PFHd = 1.05 x 10-9
  • Expandable
    No
  • Safety Module Type
    Base Controller

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SC26-2D Description

Banner Engineering SC26-2D is a safety controller featuring a display for easy monitoring and configuration. It utilizes screw-clamp connections for secure installation and operates on a 24Vdc supply voltage. Designed for DIN rail mounting, this controller can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP20. The dimensions of the SC26-2D are 45 mm in width, 110 mm in height, and 129 mm in depth. It is equipped with 2 safety outputs (24Vdc; 500mA; 2 x OSSD outputs) and 26 safety inputs (15Vdc-30Vdc; including 8 inputs convertible to non-safety outputs), catering to a wide range of safety management requirements in automated environments.

Related documents SC26-2D Specs

SC26-2D 174869.pdf
