S18UIAR
Banner
Product Lifecycle: Active
Banner Engineering S18UIAR is an ultrasonic distance sensor/transmitter belonging to the S18U right-angle series. It features a time-of-flight system with TEACH mode for precise distance measurement. The sensor is housed in a thermoplastic material and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. Designed for operation in ambient air temperatures ranging from -20 to +60°C, the S18UIAR offers a degree of protection rated at IP67 NEMA 6P, making it suitable for challenging environments. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensing distance of the device spans from 30mm to 300mm, and it operates at a transmission frequency of 300kHz. It includes protection functions against short-circuit and features 1 x analog output (4-20mA) for connectivity. The thread size of the sensor is M18.

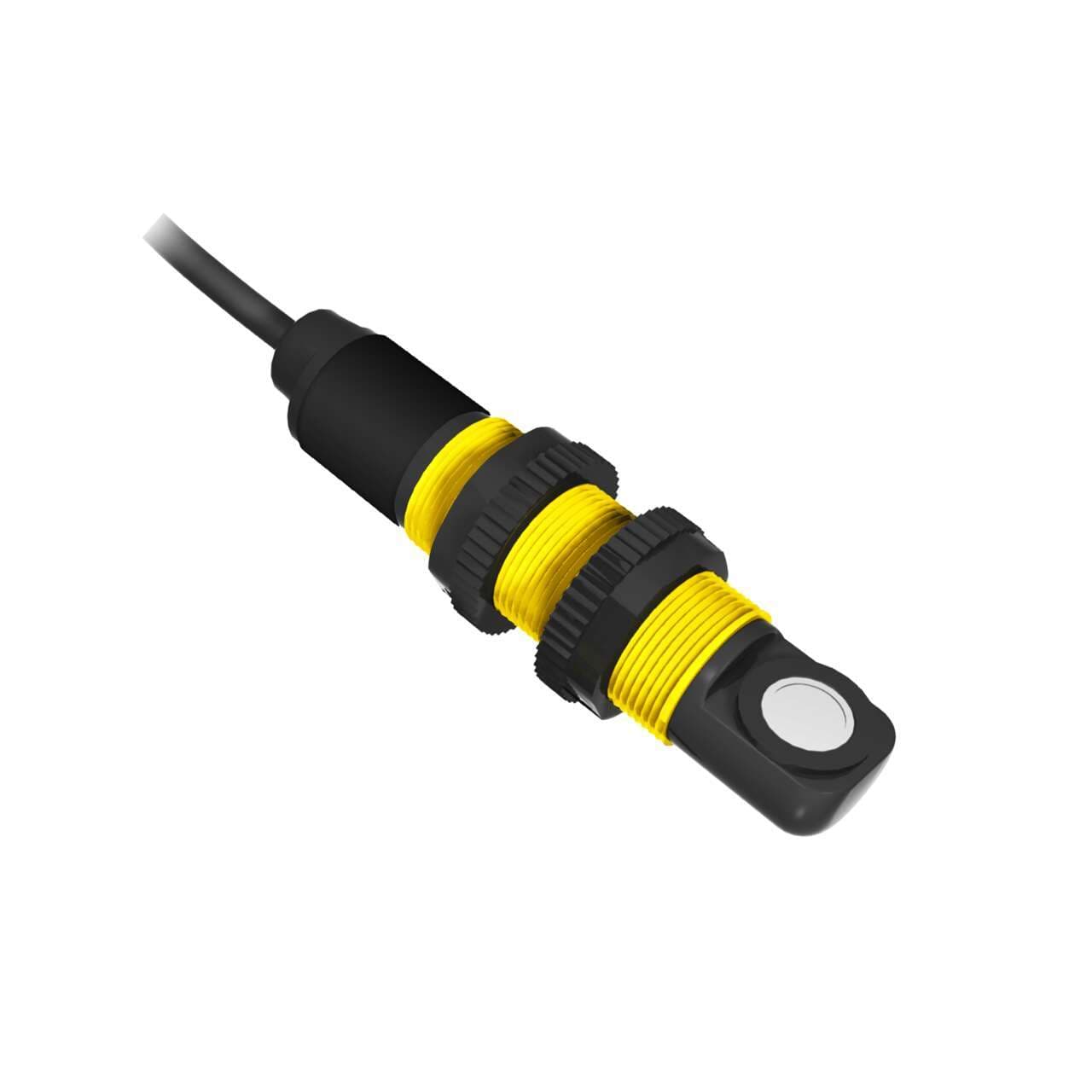

![S18UIAR](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F6868814d-6be3-4ff0-b190-767ee838794a.jpeg&w=3840&q=75)
Banner Engineering S18UIAR is an ultrasonic distance sensor/transmitter belonging to the S18U right-angle series. It features a time-of-flight system with TEACH mode for precise distance measurement. The sensor is housed in a thermoplastic material and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. Designed for operation in ambient air temperatures ranging from -20 to +60°C, the S18UIAR offers a degree of protection rated at IP67 NEMA 6P, making it suitable for challenging environments. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensing distance of the device spans from 30mm to 300mm, and it operates at a transmission frequency of 300kHz. It includes protection functions against short-circuit and features 1 x analog output (4-20mA) for connectivity. The thread size of the sensor is M18.
Product details
- 1-wire Serial InterfaceNo
- SSINo
- RS-485No
- WirelessNo
- RS-232No
- RS-422No
- PROFINETNo
- IO LinkNo
- Common Ethernet ProtocolNo
- Application: UltrasonicYes
- Feature: Chemical ResistantNo
- Feature: Timing (Hold/Delay)No
- Feature: Clear Object DetectionYes
- Power/Current Consumption (exclusive of load)65 mA max; 40 mA @ 25 V dc
- Ultrasonic Frequency (kHz)300
- Minimum Window Size (mm)5
- Remote Teach and Laser Control Input Impedence12 kΩ
- Temp. Warm-up Drift (Notes 1)After 30 min, the apparent switchpoint is < 0.5% of the actual position.
- Max Op. Relative Humidity Non-Condensing (%)100
- ProfibusNo
- Feature: Remote TeachYes
- Supply Protection CircuitryProtected against reverse polarity and transient overvoltages
- Barrel Diameter (mm)18
- Analog Linearity (mm)+/- 0.5
- Rep Rate (ms)2.5
- Minimum Response Time (ms)2.5
- Temp. Warm-up Drift (Notes 2)After 60 min, the apparent switchpoint is < 0.3% of the actual position.
- Temperature Warm-up Drift upon Power-upTemp. compensation enabled, < 1.0% of the sensing distance upon power-up.
- Warm-up Time (minutes)10
- Min Operating Temperature (°C)-20
- Max Operating Temperature (°C)60
- Storage Temperature (°C)-40 to 80
- NEMA RatingNEMA 6P
- IP RatingIP67
- Output ProtectionProtected against short circuit conditions
- Discrete (Switched) OutputsBipolar (NPN & PNP)
- Analog Voltage Output Rating2.5 kΩ min. load impedance
- Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- VibrationMIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Number of Pins5
- AdjustmentsPush Button; Remote Teach
- Temperature Effect (mm/°C)0.02% of sensing distance/°C
- Delay at Power-up (ms)300
- Power Supply12-30 V dc
- Minimum Sensing Distance (mm)30
- Max Sensing Distance (mm)300
- Analog Resolution/Discrete Repeatability1 at 2.5 ms response speed, 0.5 at 30 ms response speed
- Quick Disconnect TypeNo QD
- Analog Output Configuration4-20 mA
- ConnectionFlying Leads
- IndicatorLED(s)
- Input/OutputAnalog
- Primary Housing MaterialABS/Polycarbonate
- Max Measurement Range>100 mm - <=500 mm
- Device TypeSensor
- PowerDC
- Sensing Mode (Detailed)Time of Flight
- Sensing Mode (General)Proximity
- Housing StyleBarrel - Right Angle
- PC ConfigurableNo
- Cable Length (m)2
- Sensing BeamUltrasonic
