S183E W/30 Banner Retroreflective Sensors

S183E W/30 on Powermatic Associates
Banner

Part#:S183E W/30

Alt. Part#:30828

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

EZ-BEAM S18 Series: Emitter; Range: 20 m; Input: 20-250 V ac; Output: Not Applicable; 9 m (30 ft) Cable

Product Details

  • Weight
    544.3104 g
  • Country Of Origin
    MX
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Feature: Ecolab Certified
    Yes
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    Emitter
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Lens Material
    Polycarbonate
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • IP Rating
    IP67, IP69
  • NEMA Rating
    NEMA 6P
  • Number of Pins
    2
  • Repeatability (µs)
    2000
  • Special Feature: Water Detection
    No
  • Delay at Power-up (ms)
    100
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    N/A
  • Max Op. Temp. (°C)
    70
  • Operation
    N/A
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Power Supply/Supply Voltage
    20-250 V ac
  • Cable Length (m)
    9
  • Outputs
    N/A
  • Sensing Beam
    Infrared LED
  • Max Sensing Distance (mm)
    20000
  • Sensing Mode (Detailed)
    Emitter
  • Power
    AC
  • Housing Style
    Barrel
  • Sensing Mode (General)
    Opposed
  • Primary Housing Material
    Thermoplastic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S183E W/30 on Powermatic Associates is $76.00. Order now.

About the product

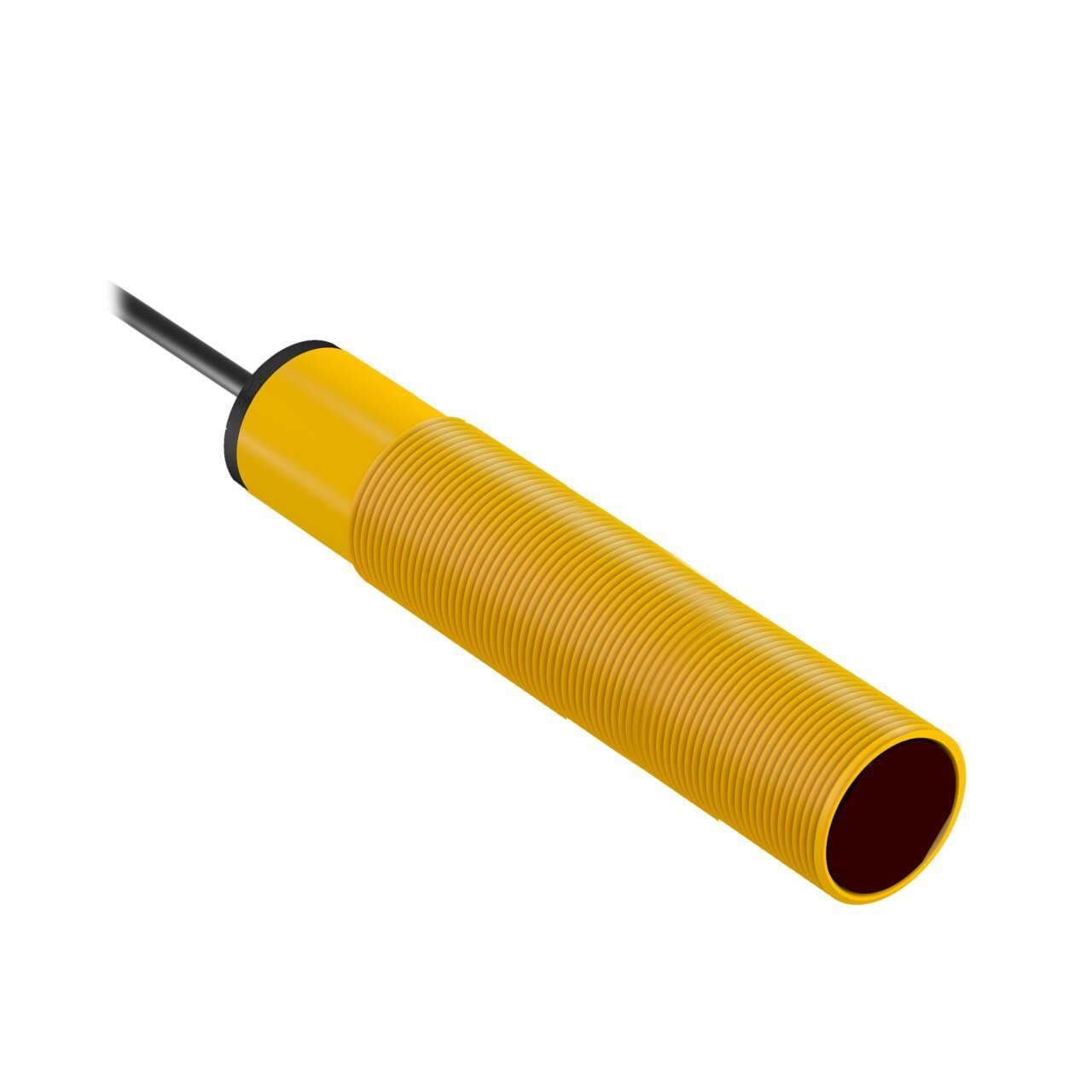

Banner Engineering S183E W/30 is a photo-electric sensor from the S18 AC series, designed with a through-beam system in an opposed mode configuration. This sensor functions as an emitter alone and is housed in a thermoplastic material with a polycarbonate lens. It features a pre-wired connection with a 30ft / 9m cable terminated with bare end flying leads. The S183E W/30 operates on a supply voltage ranging from 20Vac to 250Vac, with nominal voltages at 200Vac, 220Vac, and 240Vac. It is designed to operate within an ambient air temperature range of -40 to +70°C. This sensor offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring its durability in various environmental conditions. It has an M18 cylindrical threaded/barrel shape, a sensing distance of 20m, and utilizes infrared light with a wavelength of 950 nm. The thread size for mounting is M18.
