S183E W-30 Banner Sensors & Transducers

Name: S183E W-30
Brand: Banner

Part#:S183E W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

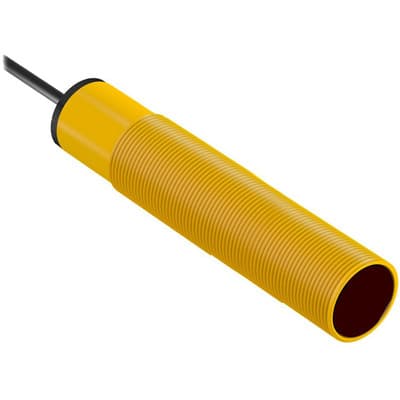

Photo-electric emitter with through-beam system / opposed mode - Banner Engineering (EZ-BEAM series - S18 AC series) - Part #30828 - Infrared (IR) light (950nm) - Supply voltage 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.) - Pre-wired with 30ft / 9m cable

Product Details

Product series / family name
EZ-BEAM series
Functions
Photo-electric emitter green LED (power ON) amber LED (output state)
Wavelength
950 nm
Ambient air temperature for operation
-40...+70 °C
Sub-range name
S18 AC series
Main function
Sensor (Photo-electric)
Shape
Cylindrical threaded/barrel
Equivalent to
S183EW30
Supply voltage (AC)
20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
Thread size
M18
Material
thermoplastic housing Polycarbonate lns.
Order code / Manufacturer SKU
30828
Primary brand
Banner Engineering
Light Color
Infrared (IR)
Degree of protection
IP67 IP69K NEMA 6P
Design
through-beam system / opposed mode
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Compliant with standard(s)
cULus CCC cCSAus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S183E W-30 Related Documents

Banner Engineering - S18 AC series - Datasheet.pdf
