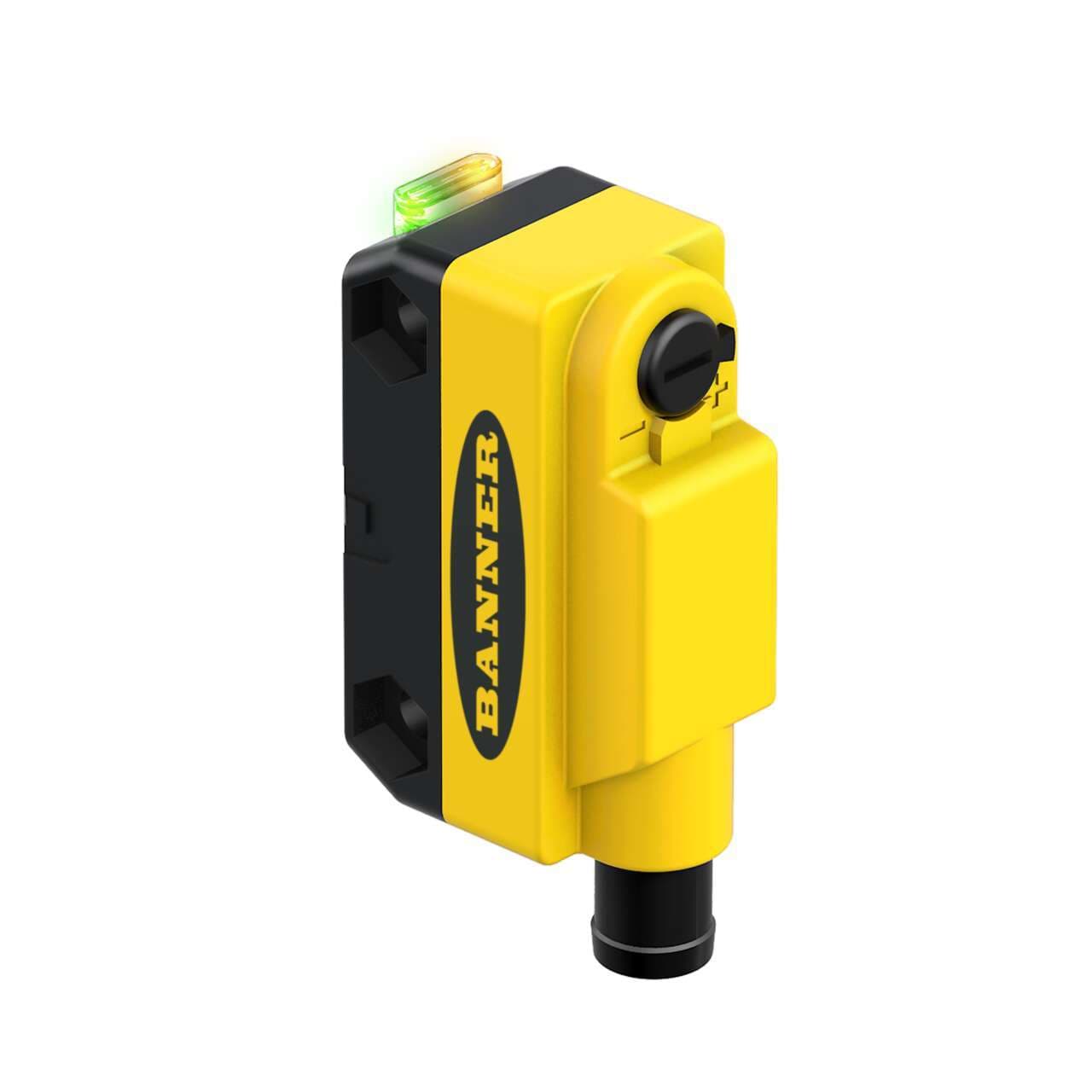

QS18VP6WQ7 Banner Proximity Sensors

Name: QS18VP6WQ7
Brand: Banner
Price: 90 USD
Availability: BackOrder

Part#:QS18VP6WQ7

Alt. Part#:66442

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18 Series: Divergent Diffuse; Range: 100 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; M8 Integral QD

Product Details

Weight
36.28736 g
Country Of Origin
MX
IO Link
No
Feature: Audible
No
DeviceNet
No
Feature: Quick Disconnect
Yes
Feature: Chemical Resistant
No
Feature: Encapsulated
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
No
Indicator
LEDs
Barrel Diameter (mm)
N/A
Adjustments
N/A
Lens Material
Acrylic
Max Op. Relative Humidity [%]
95% @ 50°C
Repeatability (µs)
150
IP Rating
IP67
Delay at Power-up (ms)
100
Special Feature: Water Detection
No
NEMA Rating
NEMA 6

Number of Pins

Output response time (ms)

0.6

Special Feature: Intrinsically Safe

Special Feature: Remote Teach

Quick Disconnect Type

M8 (Pico)

Max Op. Temp. (°C)

Min Op. Temp. (°C)

-20

Operation

Light/Dark Operate

Connection

Integral QD

Power Supply/Supply Voltage

10-30 V dc

Housing Style

Rectangular

Outputs

PNP

Max Sensing Distance (mm)

100

Input/Output

Discrete

Primary Housing Material

ABS

Sensing Mode (Detailed)

Divergent

Sensing Beam

Infrared LED

Sensing Mode (General)

Proximity

Power

Main function

Sensor (Photo-electric)

Shape

Rectangular

Degree of protection

IP67 NEMA 6

Primary brand

Banner Engineering

Sub-range name

QS18 series

Design

divergent diffuse system

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Sensing distance

100mm

Digital outputs

1 x digital output (PNP transistor)

Ambient air temperature for operation

-20...+70 °C

Product series / family name

WORLD-BEAM series

Connection type

Pre-equipped with 4-pin Pico-style M8 connector

Material

thermoplastic housing Acrylic lns.

Functions

Photo-electric sensor green LED (power ON) yellow LED (light sensed)

Light Color

Infrared (IR)

Response time

0.6ms / 0.0006 s

Order code / Manufacturer SKU

66442

Operating mode

Light-ON Dark-ON

Compliant with standard(s)

cURus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6WQ7 on Powermatic Associates is $90.00. Order now.

About the product

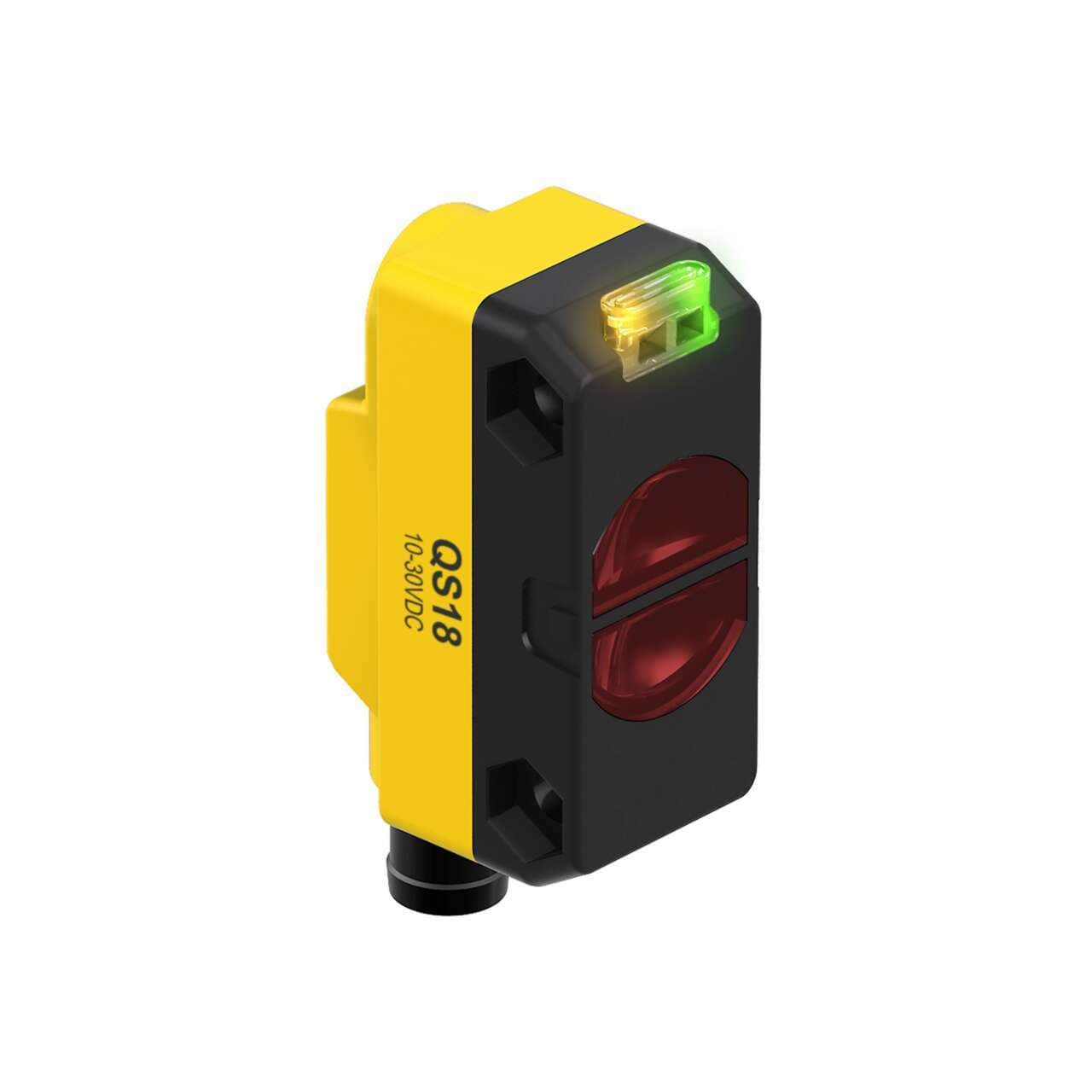

Banner Engineering QS18VP6WQ7 is a photo-electric sensor designed with a divergent diffuse system and operates within an ambient air temperature range of -20 to +70°C. This sensor is part of the QS18 series and comes pre-equipped with a 4-pin Pico-style M8 connector for easy installation. It features a rectangular shape with a thermoplastic housing and an acrylic lens. The QS18VP6WQ7 offers a sensing distance of 100mm and utilizes infrared (IR) light. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) for versatile application. The sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and boasts a rapid response time of 0.6ms / 0.0006 s. It is protected to a degree of IP67 NEMA 6, ensuring durability in various environmental conditions.

QS18VP6WQ7 Related Documents
