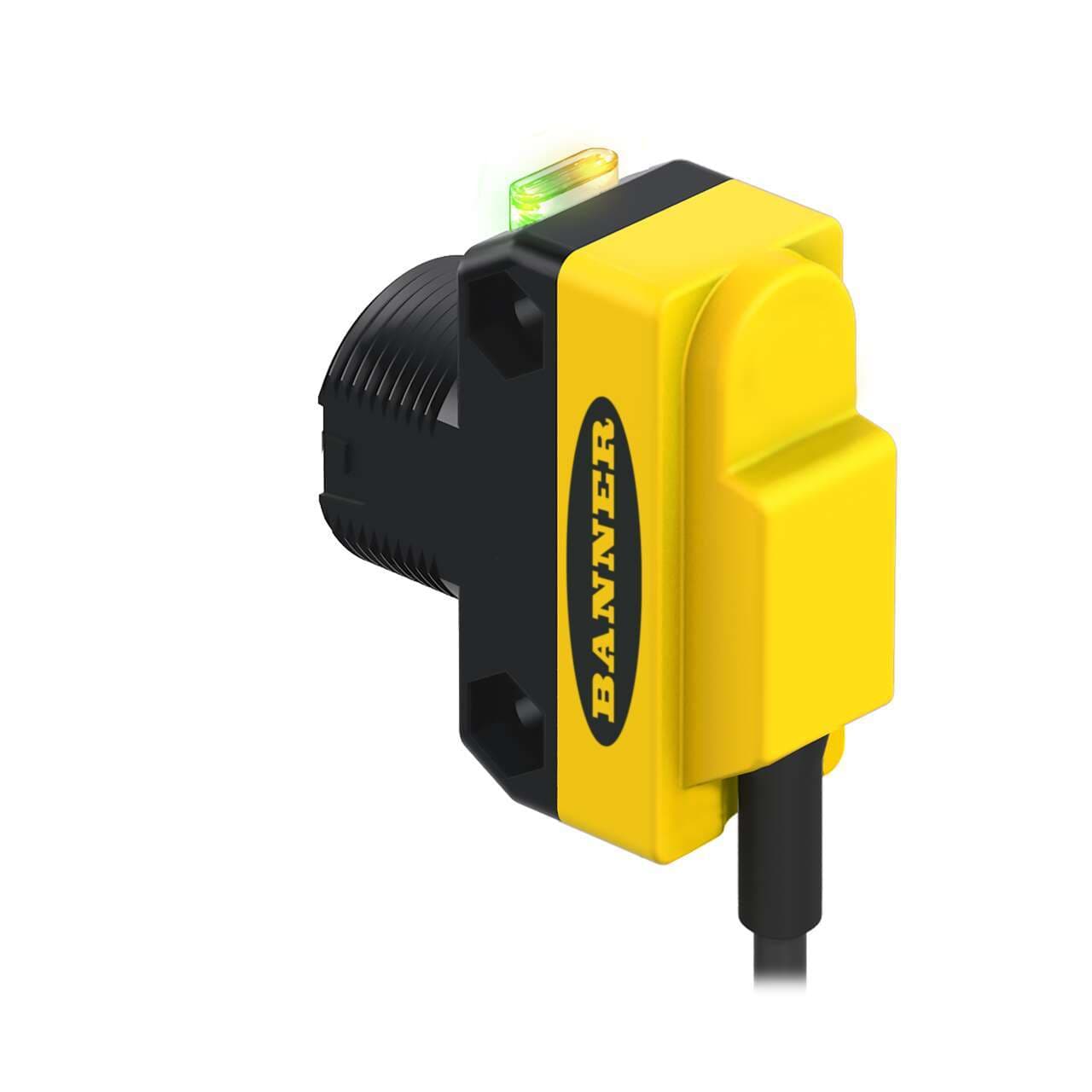

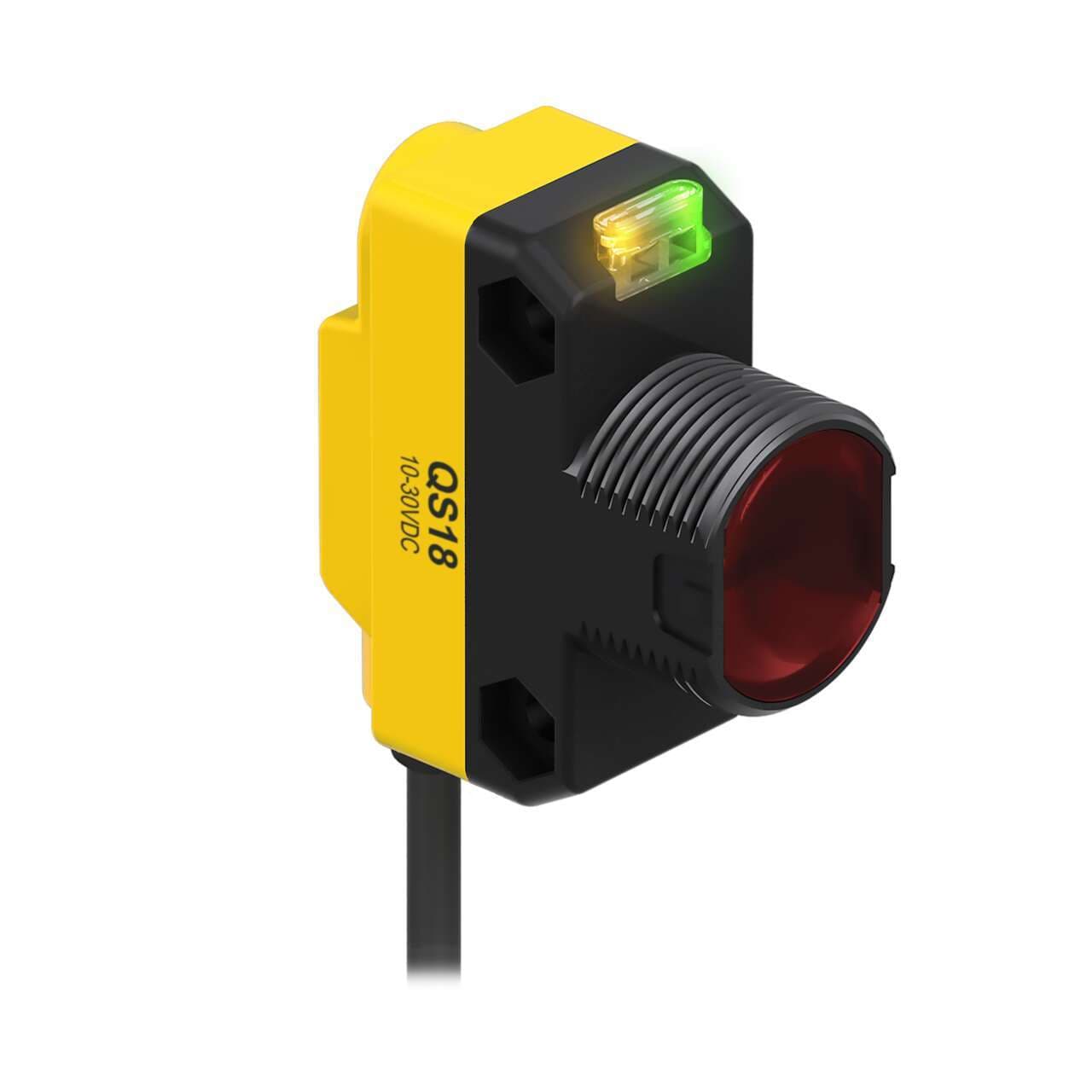

QS18VP6RQ Banner Proximity Sensors

QS18VP6RQ on Powermatic Associates
Banner
  • QS18VP6RQ
  • QS18VP6RQ

Part#:QS18VP6RQ

Alt. Part#:61625

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M8 Pigtail QD

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    CN
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Response time
    0.75ms / 0.00075 s
  • Order code / Manufacturer SKU
    61625
  • Primary brand
    Banner Engineering
  • Design
    through-beam system / opposed mode
  • Mounting mode
    Threaded mount
  • Degree of protection
    IP67 NEMA 6
  • Material
    thermoplastic housing Acrylic lns.
  • Product series / family name
    WORLD-BEAM series
  • Sensing distance
    20m
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -20...+70 °C
  • Sub-range name
    QS18 series
  • Functions
    Photo-electric sensor receiver green LED (power ON) yellow LED (light sensed)
  • Digital outputs
    1 x digital output (PNP transistor)
  • Main function
    Sensor (Photo-electric)
  • Thread size
    M18
  • Shape
    Rectangular
  • Compliant with standard(s)
    cURus CE
  • Sensing Beam
    Visible Red or IR
  • Power
    DC
  • Primary Housing Material
    ABS
  • Sensing Mode (General)
    Opposed
  • Outputs
    PNP
  • Max Op. Temp. (°C)
    70
  • Lens Material
    Acrylic
  • Feature: Audible
    No
  • Max Sensing Distance (mm)
    20000
  • Special Feature: Intrinsically Safe
    No
  • Number of Pins
    4
  • Feature: Hazardous Area
    No
  • Sensing Mode (Detailed)
    Receiver
  • Output response time (ms)
    0.75 ON/0.375 OFF
  • NEMA Rating
    NEMA 6
  • Feature: Timing (Hold/Delay)
    No
  • Input/Output
    Discrete
  • Housing Style
    Rectangular w/M18 Mount
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    18
  • Indicator
    LEDs
  • IO Link
    No
  • Quick Disconnect Type
    M8 (Pico)
  • Delay at Power-up (ms)
    100
  • Opposed Mode Emitter/Receiver
    Receiver
  • Feature: Quick Disconnect
    Yes
  • Connection
    Pigtail QD
  • Repeatability (µs)
    100
  • Feature: Encapsulated
    No
  • Operation
    Light/Dark Operate
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • DeviceNet
    No
  • Min Op. Temp. (°C)
    -20
  • IP Rating
    IP67
  • Power Supply/Supply Voltage
    10-30 V dc
  • Adjustments
    N/A
  • Feature: Chemical Resistant
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6RQ on Powermatic Associates is $95.00. Order now.

About the product

Banner Engineering QS18VP6RQ is a photo-electric sensor designed for through-beam system applications, featuring an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a durable thermoplastic casing with an acrylic lens. It is part of the QS18 series and offers a sensing distance of up to 20 meters. The sensor is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 4-pin Pico-style M8 connector, facilitating straightforward connection. It supports a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The QS18VP6RQ features a rectangular shape and provides one digital output (PNP transistor; complementary NO/NC) with a rapid response time of 0.75ms (0.00075 seconds). It operates in both Light-ON and Dark-ON modes and is protected to IP67 NEMA 6 standards, ensuring its operation in challenging environmental conditions.
