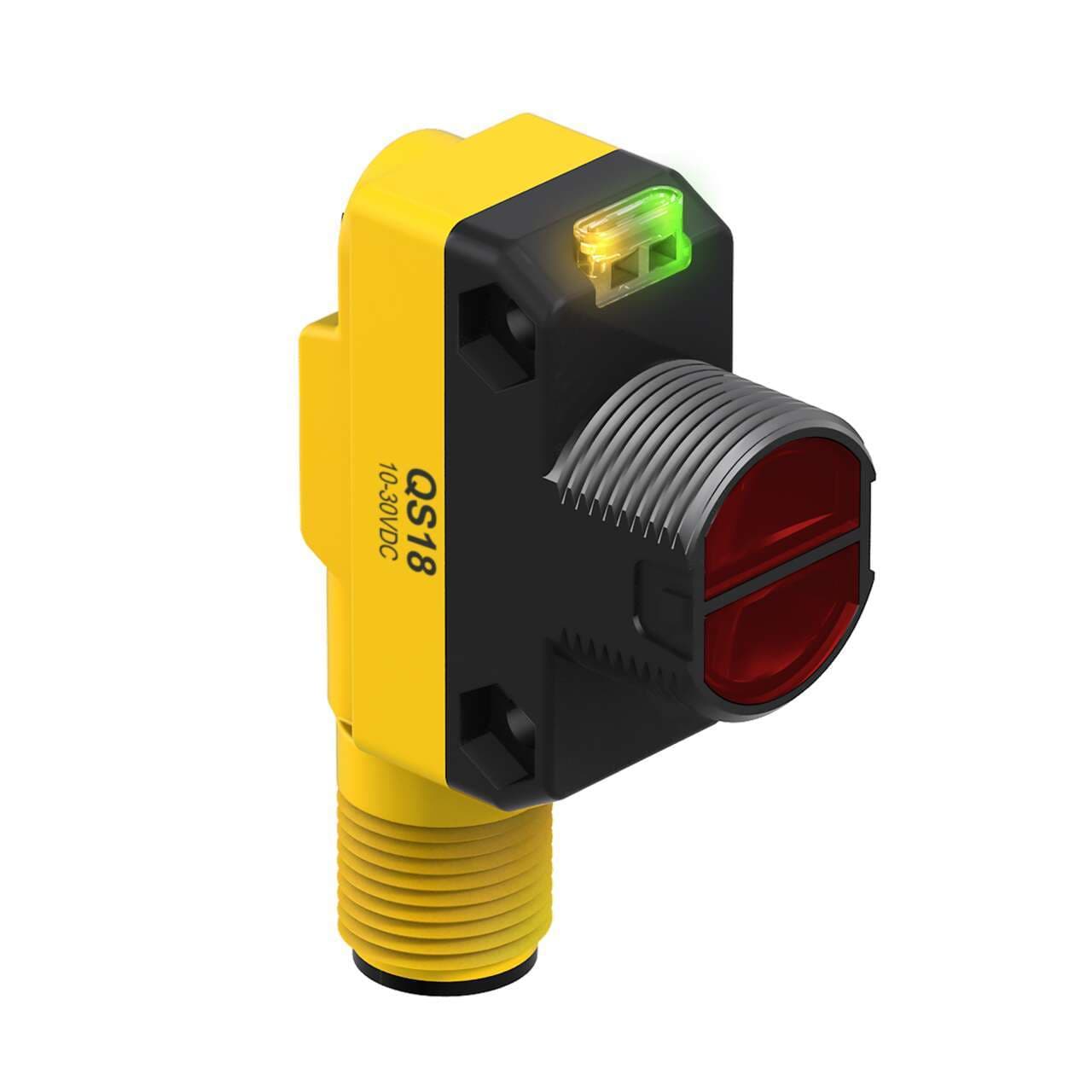

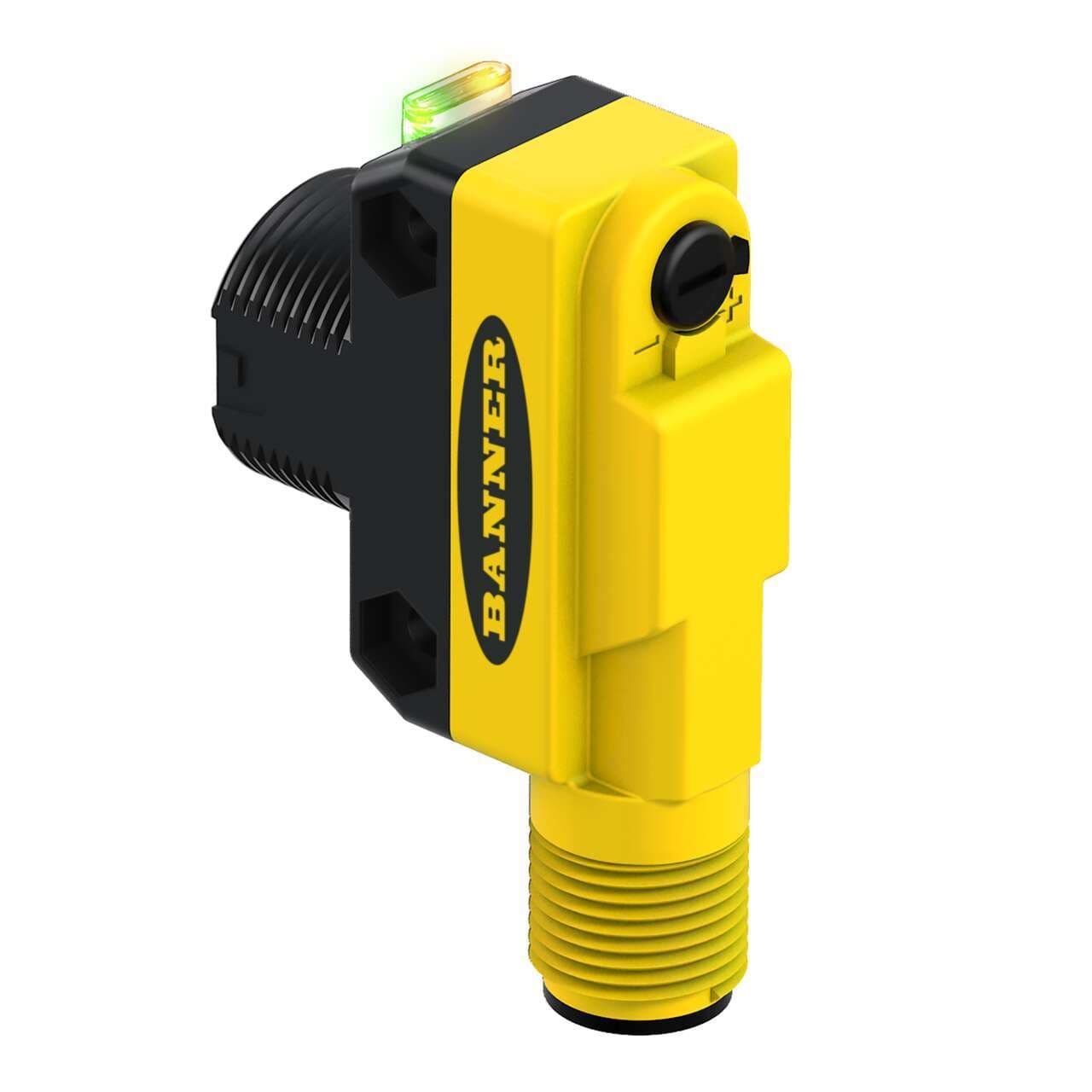

QS18VP6DLQ8 Banner Proximity Sensors
Part#:QS18VP6DLQ8
Alt. Part#:800772
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Diffuse; Range: 600 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Min Op. Temp. (°C) -20
- Primary Housing Material ABS
- Input/Output Discrete
- Operation Light/Dark Operate
- Sensing Mode (General) Proximity
- Connection Integral QD
- Lens Material Acrylic
- Feature: Audible No
- Housing Style Rectangular w/M18 Mount
- Output response time (ms) 0.85
- IP Rating IP67
- Feature: Chemical Resistant No
- Power DC
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Outputs PNP
- Quick Disconnect Type M12 (Euro)
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Sensing Mode (Detailed) Diffuse
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Max Sensing Distance (mm) 600
- Special Feature: Remote Teach No
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- IO Link No
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Wavelength 940
- Repeatability (µs) 90
- Indicator LEDs
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6DLQ8 on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering QS18VP6DLQ8 is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes with an M18 threaded mount for easy installation and is equipped with a 4-pin Euro-style M12 connector for connectivity. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The QS18 series sensor offers a sensing distance of up to 600mm and utilizes infrared light with a wavelength of 940 nm. It supports both Light-ON and Dark-ON operating modes for increased application flexibility. The device is protected to IP67 and NEMA 6 standards, making it suitable for challenging environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and features a single digital output (PNP transistor; complementary NO/NC) for signal processing.
