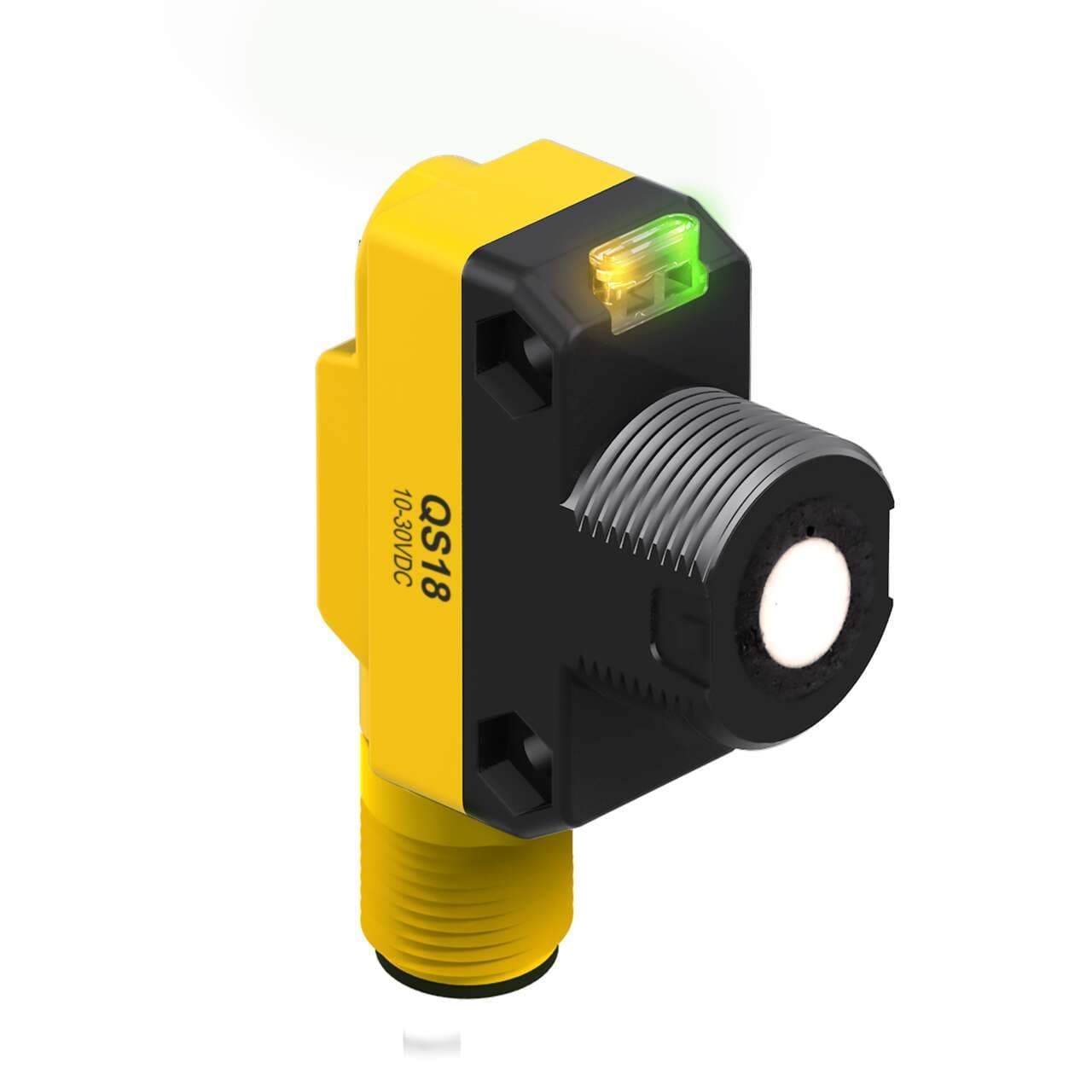

QS18UPAQ8 Banner Ultrasonic Sensors

QS18UPAQ8 on Powermatic Associates
Banner

Part#:QS18UPAQ8

Manufacturer:Banner

Alt. Part#:73156

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM QS18U: Ultrasonic TEACH mode; Range: 50-500 mm; Input: 12-30 V dc; Output: PNP; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18UPAQ8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    68.0388 g
  • Country Of Origin
    CN
  • Profibus
    No
  • SSI
    No
  • 1-wire Serial Interface
    No
  • Feature: Chemical Resistant
    No
  • Minimum Response Time (ms)
    15
  • Wireless
    No
  • RS-485
    No
  • RS-422
    No
  • PROFINET
    No
  • RS-232
    No
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Application: Ultrasonic
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Clear Object Detection
    Yes
  • Feature: Remote Teach
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    25 mA max
  • Max Off-state Leakage Current (µA)
    PNP: < 5
  • Ultrasonic Frequency (kHz)
    300
  • Discrete Output Hysteresis (mm)
    1.4
  • Minimum Window Size (mm)
    5
  • Barrel Diameter (mm)
    18
  • Min Operating Temperature (°C)
    -20
  • Rep Rate (ms)
    7.5
  • Max Operating Temperature (°C)
    60
  • NEMA Rating
    NEMA 6P
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Warm-up Time (minutes)
    5
  • IP Rating
    IP67
  • Output Saturation Voltage NPN Outputs
    < 1.6 V at 100 mA
  • Output Protection
    Protected against short circuit conditions
  • Output Saturation Voltage PNP Outputs
    < 2.0 V at 100 mA
  • Discrete (Switched) Outputs
    1 PNP
  • Max Discrete (Switched) Output (mA)
    100
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Number of Pins
    4
  • Adjustments
    Teach Button
  • Temperature Effect (mm/°C)
    +/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C
  • Max Sensing Distance (mm)
    500
  • Delay at Power-up (ms)
    300
  • Power Supply
    12-30 V dc
  • Minimum Sensing Distance (mm)
    50
  • Analog Resolution/Discrete Repeatability
    0.7
  • Input/Output
    Discrete
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Indicator
    LED(s)
  • Primary Housing Material
    ABS
  • Power
    DC
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Ultrasonic
  • PC Configurable
    No
  • Device Type
    Sensor
  • Max Measurement Range
    >100 mm - <=500 mm
  • Sensing Mode (Detailed)
    Time of Flight
  • Housing Style
    Rectangular w/M18 Mount

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS18UPAQ8 Description

Banner Engineering QS18UPAQ8 is an ultrasonic distance sensor featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +60°C and utilizes a time-of-flight system with TEACH mode for precise distance measurement. This sensor is equipped with a 4-pin Euro-style M12 connector for straightforward connectivity. As part of the QS18U series, it offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environments. The QS18UPAQ8 requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and is designed with a rectangular shape. It operates at a 300kHz transmission frequency and is constructed with an ABS housing for resilience. The sensing distance ranges from 50 to 500mm, and it includes 1 x digital output (PNP transistor) for signal processing. Additionally, it features protection functions against short-circuit incidents.

Related documents QS18UPAQ8 Specs

QS18UPAQ8 119287.pdf
